USB to Ttl Serial Cable (6 Way OEM FTDI TTL-232R-3.3/5V Cable)
| Price: |
US $ 4.99-5.03/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
OM-TTL cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Computer |
| USB Type: |
Standard |
| Type: |
USB to Ttl Serial Cable |
| Cable Length: |
1m,1.8m(Optional) |
| Data Transfer Rate: |
up to 3 Mbps |
| Compliant: |
USB Specification 2.0 |
| Connecters: |
USB Type a Male 6 Way 0.1" Pitch 2.5 |
| Chipset: |
Ftdi,Pl203,Cp2102(Optional) |
| Warranty: |
2 Years |
| Application: |
Computer |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
6Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Three-pin |
| Shape: |
Strip |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description
Features:1. This FTDI USB to TTL Serial Cable (OEM TTL-232R-5V) allows you to simply and easily connect to TTL interface devices using a spare USB port.
2. This USB to TTL has it's I/O lines (CTS, RTS, Tx, Rx) configured to operate at 5V levels
3. Its features are identical to FTDI's USB to TTL cable (TTL-232R-5V) with the same colour wires / pin out using a 6 Pin 2.54mm (0.1") Header.
4. This FTDI USB to TTL also supports the same features found within the FT232R IC e. G. Supports FT232R FTDIChip-ID™
5. This FTDI USB to TTL serial adapter cable can fit be used with many different boards &
Applications which include DACIO modules, RS232 Interface Loggers and also many new designs which require TTL logic.
6. The FTDI USB to TTL (TTL-232R-5V) uses a FTDI FT232R IC, which is one of the latest and most powerful USB to Serial/TTL IC on the market.
7. This USB to TTL has 5V CMOS drive outputs and 5V safe TTL inputs which makes this USB to
TTL easy to interface to 5V MCUs.
8. Also provides 5V output to allow devices to be powered from the USB port.
9. The FTDI USB to TTL is made using USB 2.0 specification cable and is CE & FCC approved.
10. This FTDI USB to TTL serial cable is 1.8M in length with a 2.54mm (0.1") pitch header which
Provides access via a 6 way connector (GND, CTS, VCC (+5V), Tx, Rx and RTS)
11. This FTDI USB to TTL serial cable can be used on Windows 98 ~ Windows 7 (32 & 64 bit) and WinCE. It also supports MAC OS8.6+ to 10.6+ as well as Linux.USB to TTL Serial Cable (OEM TTL-232R-5V) Pinout below:Pin Out: Wire Colour: Function
1: Black: Ground
2: Brown: CTS (Clear to Send)
3: Red: Vcc +5V typical (output)
4: Orange: TTL Transmit Tx (output)
5: Yellow: TTL Receive Rx (input)
6: Green: RTS (Request to Send)
Serial baud: 300 - 2764800bps (3Mbps) at TTL level.
Drivers are available via a download link provided on the product packaging or via FTDI's website.These devices are also known as:FTDI TTL-232R-5V/3.3V
TTL-232-R
FTDI USB TTL CABLE
6 WAY USB to TTL
OEM FTDI TTL CABLE
USB to TTL Cable
5v USB to TTL
OEM TTL-232R-3.3V/5.0V

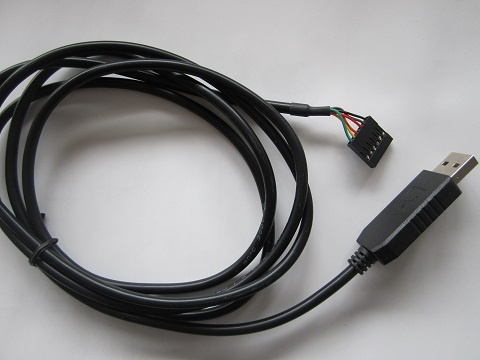

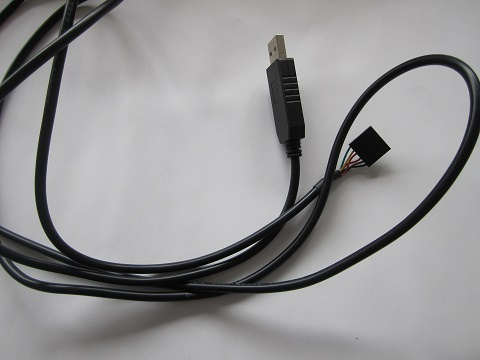

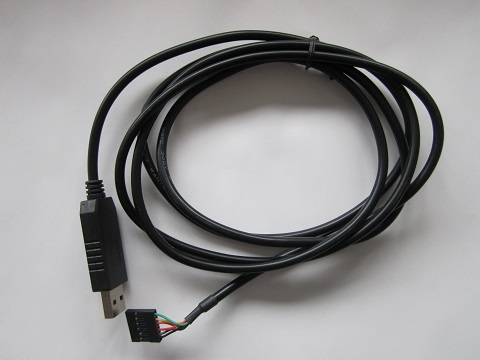

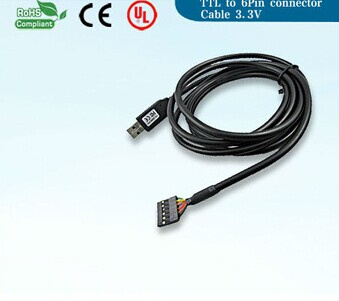

Note: Two verstion for choice: 3.3V and 5.0V.Prodcuts photos:
