| Prod Model: |
YU-USB2-CPI-01-001, YU-USB-JSX-01-001 |
| Rated Current: |
1.5A |
| Operating Voltage: |
500V |
| Connecting Mode: |
Quickly Bayonet Connect |
| Protection Level: |
IP67 |
| Interface Type: |
DC/DC |
| Production Process: |
Welding |
| Material: |
Copper |
| Temperature Rating: |
-40°c~80°c |
| Colour: |
Black |
| Withstanding Voltage(AC.V)1 Minute: |
1000V DC |
| Application: |
Computer, Digital Cameras |
| Gender: |
Male and Female |
Product Description

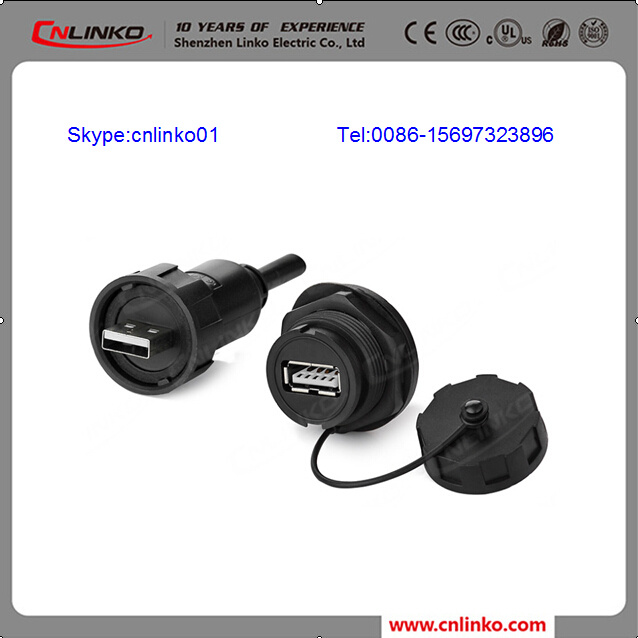

USB2.0 cable connector with protection level IP67 for computer
YU series electrical connectors IP67
1.independent USB3.0 socket design, easy to install and operate .
2. achieve double-head male to female adapter, snap locking,
ensure safe and stablecable can be customized
3. compatible with USB2.0,
4. protection level IP67
5.sheath of cable protect cable outlet well
6. solid connections system can provide the solutions for data transmission in harsh environments
YU-USB2-CPI-01-001, YU-USB-JSX-01-001 |
| Specifications: | |
| Connecting mode: | Quickly bayonet connect |
| Protection level: | P67 |
| Cable specification: | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 4 |
| Current rating(A): | 1.5A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | USB Convert Serial Cable Connector |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packing & Payment term & Shippment
Package: 10PCS/Small Box, 100PCS/Middle Box, 240PCS/Carton
Payment term: T/T or western uion (100% full payment before shipment)
Delivery time: 3-5 working days after got your payment
Shipping way: By air, by sea or by express (depends on customer's request)
FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits
Q2: What classes do connectors have?
Shape | Frequency | Function |
| circular | high-frequency | for printed board; cabinets; |
| rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc.
|
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Tel:0086-15697323896
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
