| Prod Model: |
usb repeater cable |
| Application: |
Computer |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description

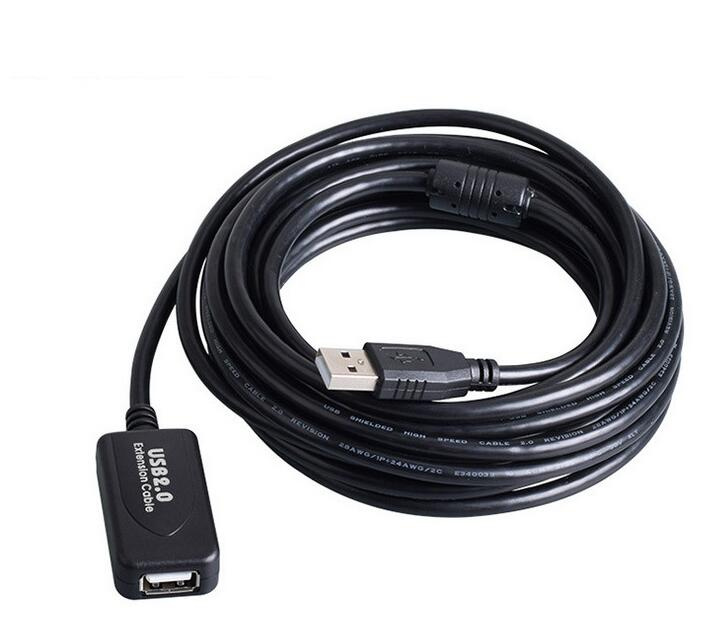

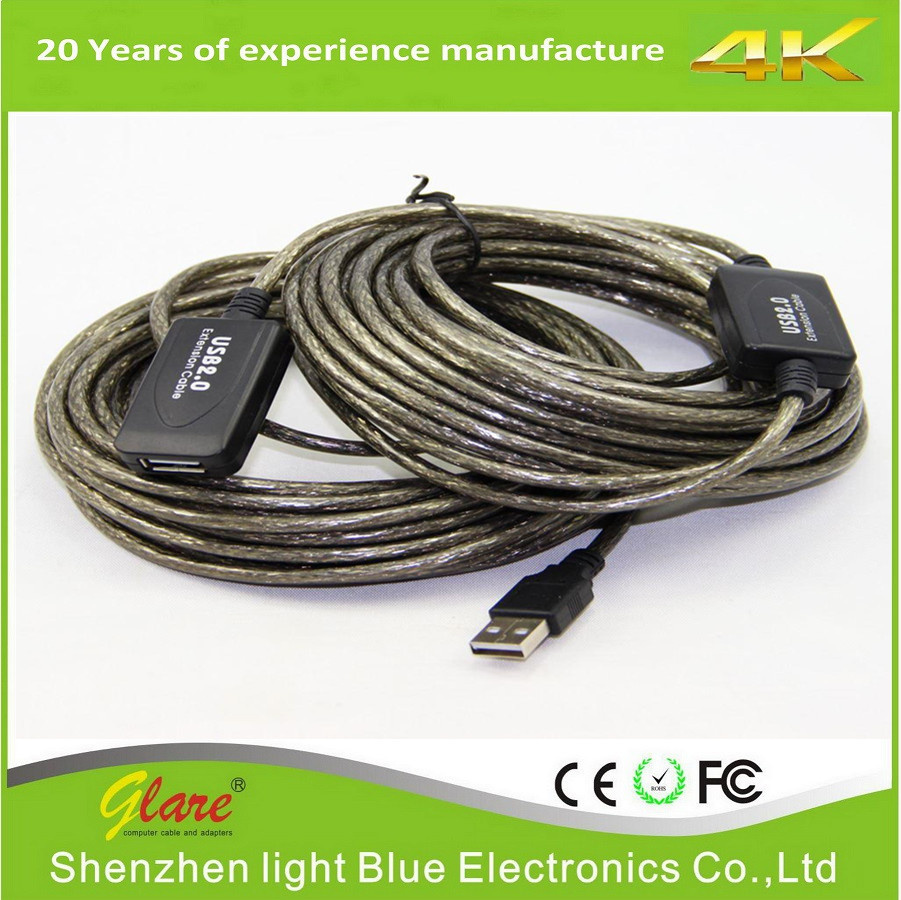

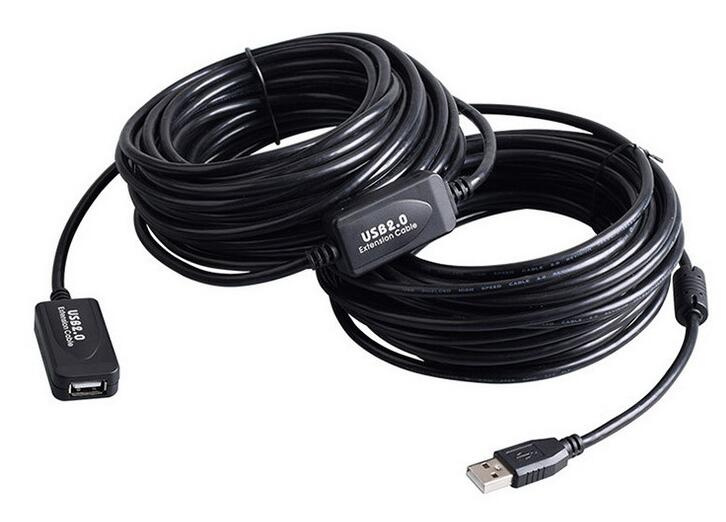

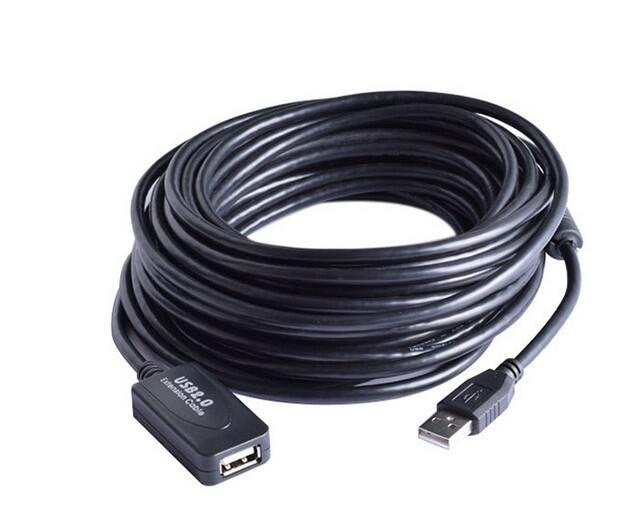

5m/10m/15m/20m/25m/30m USB 2.0 Active Extension RepeaterCable
This USB 2.0 A Male to A Female Active Extension Cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. The specification for USB states that the maximum length of a USB cable is 10 meters. As a result, you cannot extend the distance of your USB device more than 10 meters without using a USB "active" extension cable. This cable contains active electronics which boost the USB signal for maximum reliability and performance over extended distances. Features: USB 2.0 Certified for High Speed Data Transmission rate of up to 480 Mbps Active cable with built-in signal booster chipset to prevent signal loss at long distance Regenerate the USB signal for maximum reliability and performance over extended distances Plug and Play Compatible Mac and PC and compatible with USB specifications 1.0, 1.1, and 2.0 Compatible Windows 7/Vista/XP/2000/98SE and Mac OS 9.0 or higher No external power required.
Product features:
Length: 3 m, 5 m, 10 m, 15 m, 20 m, 25 m, 30 m
Material: PVC material of pure copper wire
Anaerobic copper core specification: standard tin no. 24/28, 96 knitting
Color: black
: standard USB2.0 high-speed data transmission
Applicable products: can U disk, monitor, camera, wireless CARDS, electronic dog, printer, mouse, keyboard, game consoles handle all USB devices such as the extension of!
Warm prompt: usb adapter is currently on the market a lot of claims that can carry the extension cord, actually by the professional test signal intensity is very high, but the connection quality is poor (connection quality around 5%), the company produced the standard 2.0 double circular and usb extension cable signal strength by 100%, the connection quality by more than 80%, can satisfy completely the requirements of network data transmission.
1. Advantages: to provide up to 480 MBPS super fast transfer rate, standard 2.0 connector provides excellent electrical conductivity, high speed data transmission was quick and accurate;Built-in chip!
2. The braided copper wire and aluminum foil double shielding, can significantly reduce the electromagnetic dry scratching and radio scratched!
3. The lining block: helps reduce signal dry scratching, guarantee and compatible with the current USB100 %!
4. The elastic PVC jacket: flexible, not easy to break, durable!
5. Data twisted-pair wires (impedance matching) : minimize signal cross harass, ensure error-free high-speed data transmission!
6. Quality: the product passes the high standard 5 road test, the greatest degree to reduce defective rate!
| USB Compliant | USB 1.1 and 2.0 Compatible |
| Connector Type | USB Type A Male, USB Type A Female,USB Type B Male,Can be optional |
| Connectors | The repeater cable features gold-plated connectors that resist corrosion for signal purity(nickel plated is optional) |
| Cable Spec | 28/24 AWG |
| Conductor | Oxygen free copper conductor, better signal transmission and long-time using |
| Triple shield | twisted pair conductor, Al foil and braid; better signal transmission |
| Cable Length | 5 meter/16ft,10 meter / 32ft,15meter/49ft,20meter/64ft,length can be optional |
| Transfer Rate | 100/200/480 Mbps |
| Usb Distance Limitation | ideal For Connecting Enclosures & Other Peripherals |
| Built-in repeater | helps maintain Hi-Speed USB signal quality, electrical and timing specifications |
| Compatibility | Windows 7, Vista, XP, 2000, ME, 98SE |
| Mac OS |
| Linux |
| No drivers required on any OS |
• Data Signal Specifications - USB 2.0
• Maximum Data Transfer Rate - 480Mbps
• USB Power Consumed - 100mA
Cable Specifications
Conductor (Qty 1 pair)
• Conductor Type - 28AWG (7/0.120), Tinned Copper
• Colors: (white, green)
Conductor (Qty 2 conductors)
• Conductor Type - 22AWG (7/0.254), Tinned Copper
• Colors - (1) red, (1) black
Physical Characteristics
Connector (Qty 2)
• Connector Type - USB Type A Male
• Contact Plating - 30Ωm Gold Plating
• Insulation - Black PBT
• Voltage Rating - 30V
• Temperature Rating - 80°C
• Hood Material - SR - Molded Black PVC
• Plastic Cover Material - Black ABS
• Plastic Cover Dimension - 78.0 x 28.0 x 18mm
• Weight - 0.346kg
Overall Cable
• Foil Shields - Aluminum Mylar, 100% coverage min.
• Braided Shield - 16/4/0.100, Tinned Copper, 65% coverage min.
• Jacket - PVC, black
• Outer Diameter - 5 ± 0.1mm
