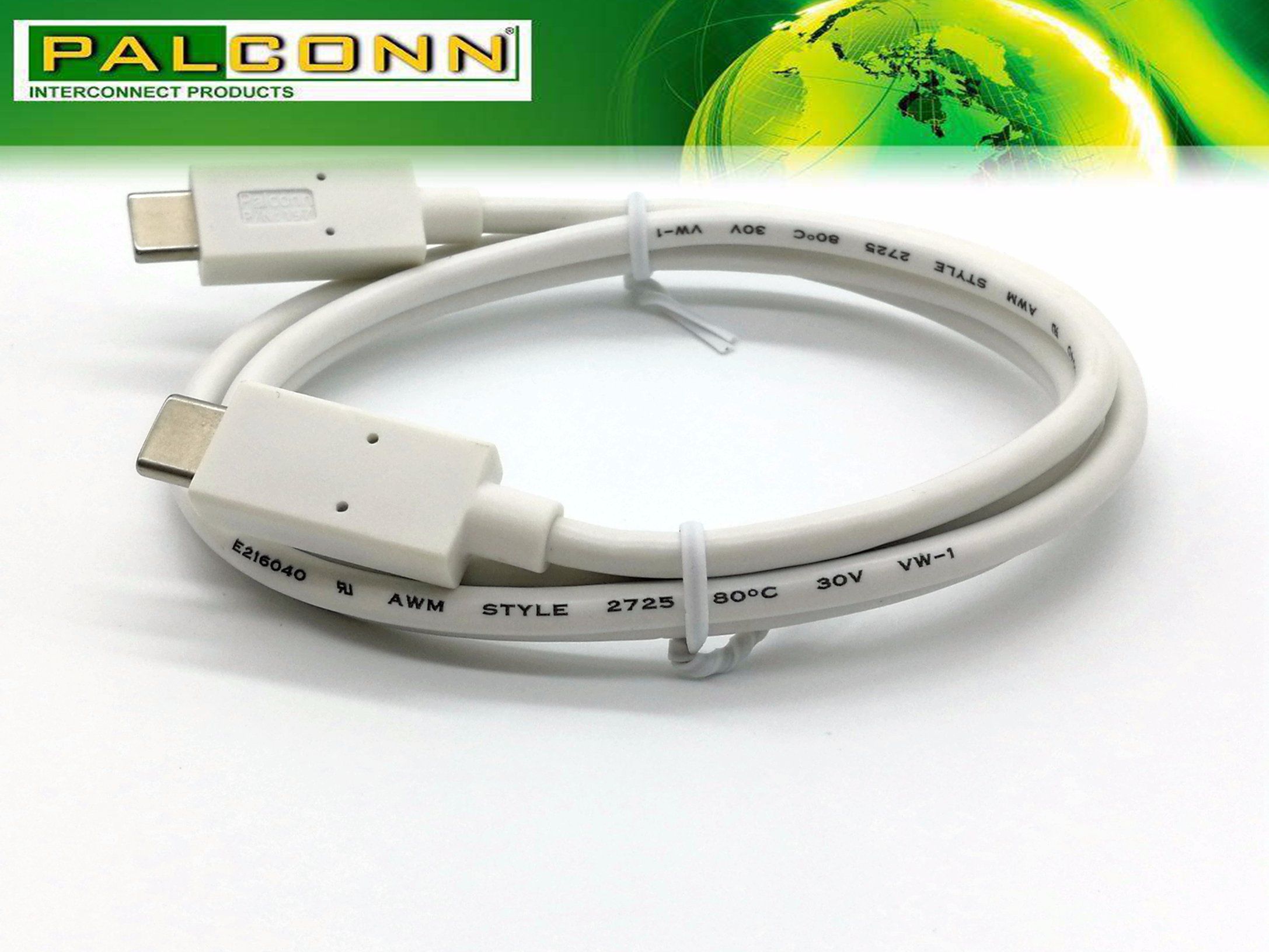

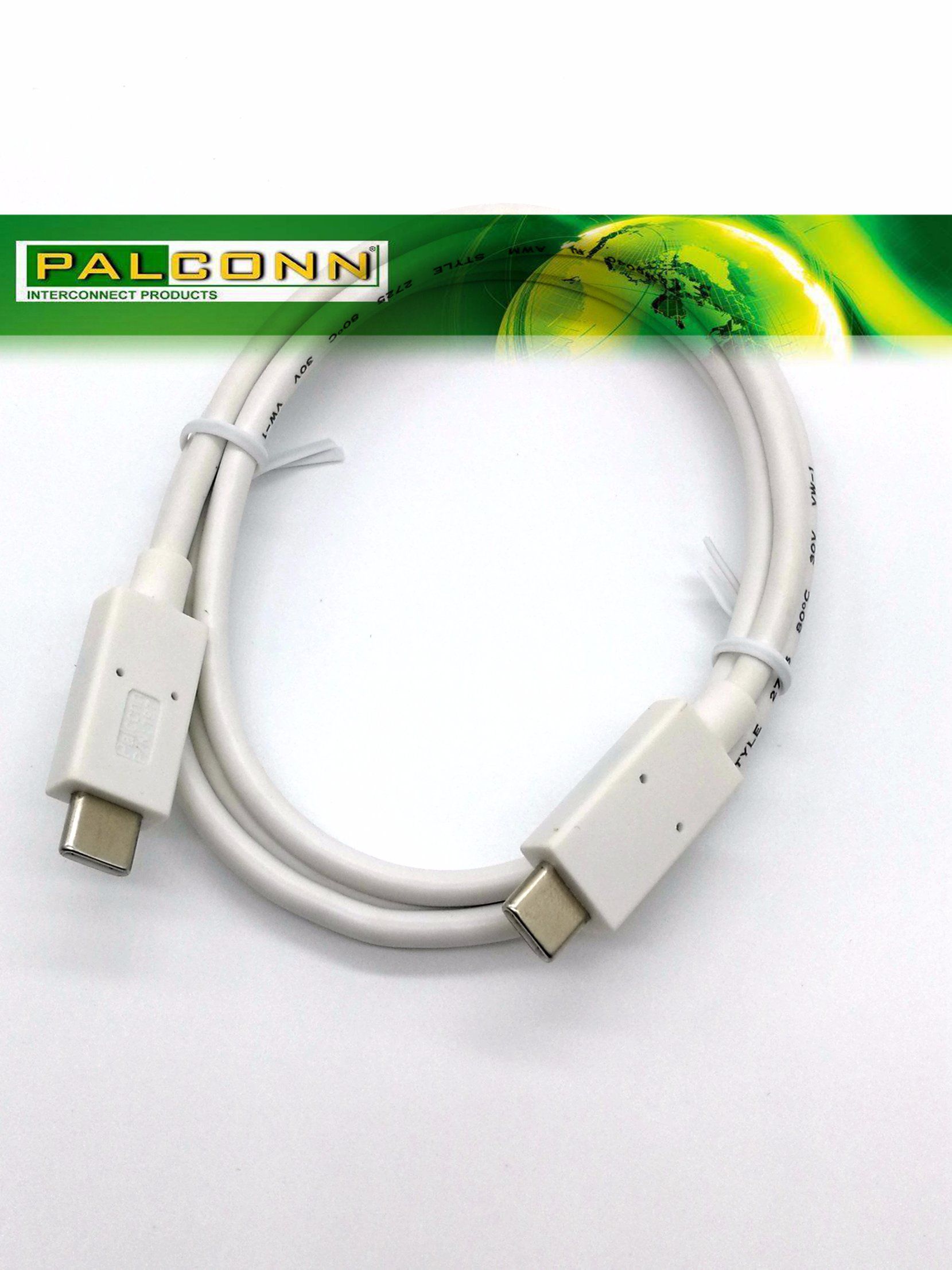

USB3.1 Type C Data Cable Contains Cypress E-MARK IC L: 970mm for MacBook
| Price: |
US $ 3-5/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
USB-UB-001-032 |
| Application: |
Power Cable for Mobile |
| Material: |
Copper |
| Feature: |
Waterproof |
| Power Cable Type: |
Three-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
White |
| Interface Type: |
USB3.1 Type C |
| Pin: |
24pin |
Product Description
USB3.1 Type C to Type C Cable, Support Qualcomm QC3.0 large current charging and USB3.1 data transmission~10Gbps.High-speed data cable! CYPRESS E-MARK IC !
Elecrical Character: 100% Open & Short testing: | NO. | specification | standard values |
| 1 | Cable Insulation Resistance: | 10M ohm min. |
| 2 | Cable Withstanding Voltage: | 100V AC/DC |
| 3 | Cable Conductive Resistance: | 3 ohms Max. |
| 4 | Cable Assembly voltage Drop: | 5A voltage 400mV for Vbus. |
| 5 | A 10nF by pass capaciror(30V min.) is required for the VBUS pin at the cable ench end. | 10nF |
| 6 | Data transmission: | meet 10Gbps |
Material| Item | Part Name | Quantity | Description | Remark |
| 1 | Connector | 1pc | USB C type male solder type teminal(phosphor bronze) 30u", insualtion LCP/PBT shell nickel plated with PCB layer. contains E-mark IC | |
| 2 | Paddle card | 1PC | pcb with VBUS PY PASS caps. | |
| 3 | Inter Molding | AR | material: PE | |
| 4 | Outer Molding | AR | PVC BLACK 70P, UL94V-1 | |
| 5 | Connector | 1pc | USB C type male solder type teminal(phosphor bronze) 30u", insualtion LCP/PBT shell nickel plated with PCB layer | |
| 6 | Cable | 1830mm | UL20276 <<32AWG*1P+AL+D>>*4C + 34AWG*1P + 34AEG*3C + 20AWG*1C + 24AWG*1C + Braid(coper 85%) + Filer VW-1 Jaket. OD:4.5 ± 0.2mm | |

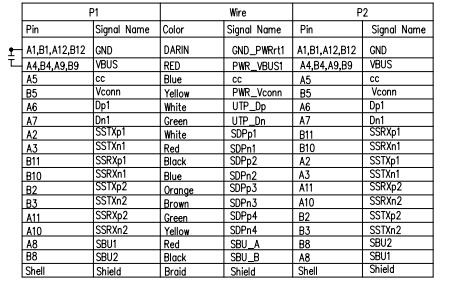

PIN ASSIGNMENT:
Certification:ISO9001:2008 / ISO 14001:2004 / OHSAS18001 / TS16949:2009
Manufacturing:| TypeC connector | In house |
| Type C connector | In house |
| Tooling | In house |
| Injection | In house |
| PCB+E mark IC | Out |
| SMT | Out |
| Soldering | In house |
| Cable | In house |
| Assembly | In house |
| Capacity | Cable:30KK/M |
Major customers:
Samsung,Western Digital, ECHOSTAR, PCT INTERNATIONAL, LEXMARK,ARRIS, XIAOMI, LUXSHARE,GoerTek,Foxconn, SHARP,ORIOM,Skyworth etc.
2003: Shenzhen Factory Founded.
• 2006: ISO 9001: 2008 Certified.
• 2009: ISO 14001: 2004 Certified.
• 2009: Taiwan sales Office Established.
• 2013: Guizhou Factory
• 2015: Moved to New ShenZhen Factory.
Components provider of:
-- Mobile Phone, Computer, LCD TV, Hard Disk,
Automobile, Consumer.
USB 2.0 & 3.0, SATA, HDMI, Audio Jacks, DC Jacks,
Battery, SD Card, WTB, Metal part, Cables
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments, Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
GuiZhou Factory
Cables Manufacture Plant
Occupied Area: 100, 000 Sq. FT.
Employees: 550
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments,
Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
We have 40 USB connector, HDMI connector and audio connector of the invention patent.
Our company has lots of well-known customers. It owns experienced, high skillful, up-and-coming, and internationalized management team and high-quality staff. Relying on scientific management model, rich technical strength, and advanced manufacturing and testing equipment, the company is actively expanding markets both at home and abroad, and is catching up with industry leading enterprises. Meanwhile the comprehensive and complete production model from research and development, precision mould manufacturing, components stamping and injection, finished product assembly to final inspection enables us to preferably control product quality and provide customers with favorable price and best delivery date.
Our company adheres to management spirit of " Integrity, Innovation, Self-improvement, Responsibility" and has built up the modern enterprise management system. Meanwhile it obtained certificate of ISO9001 quality management system in 2006, LED in ERP operation management system in 2007, and passed ISO14001: 2004 environment system in 2009 and OHSA18000 in 2012. Furthermore, It is a member of USB and HDMI association.
In order to improve the competitiveness of products, in 2015, we achieved CHB 100% stake. CHB products: USB2.0, USB3.0, USB3.1 common mode inductance, and Palconn product application coincidence. Through the merger, we are able to provide customers with proven USB connector products and EMI complete solution. After the merger, will retain Palconn and CHB 2 brands. Unified sales management by Palconn.
Major customers:
Samsung, LG, WD(Western Digital), ECHOSTAR, MI, ARRIS, F5, PCT, LEXMARK, TIVO, FOXCONN, SHARP, ORION, GOER TEK, PHIHONG, SKYWORTH, TENPAO, SSK
