| Prod Model: |
USB3.0 |
| Cable Use For: |
Printer |
| Cable Conductor: |
USB3.0 |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black ,Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag,Blister ,Gift Box |
| Cable Certification: |
Ce,RoHS |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Power Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description

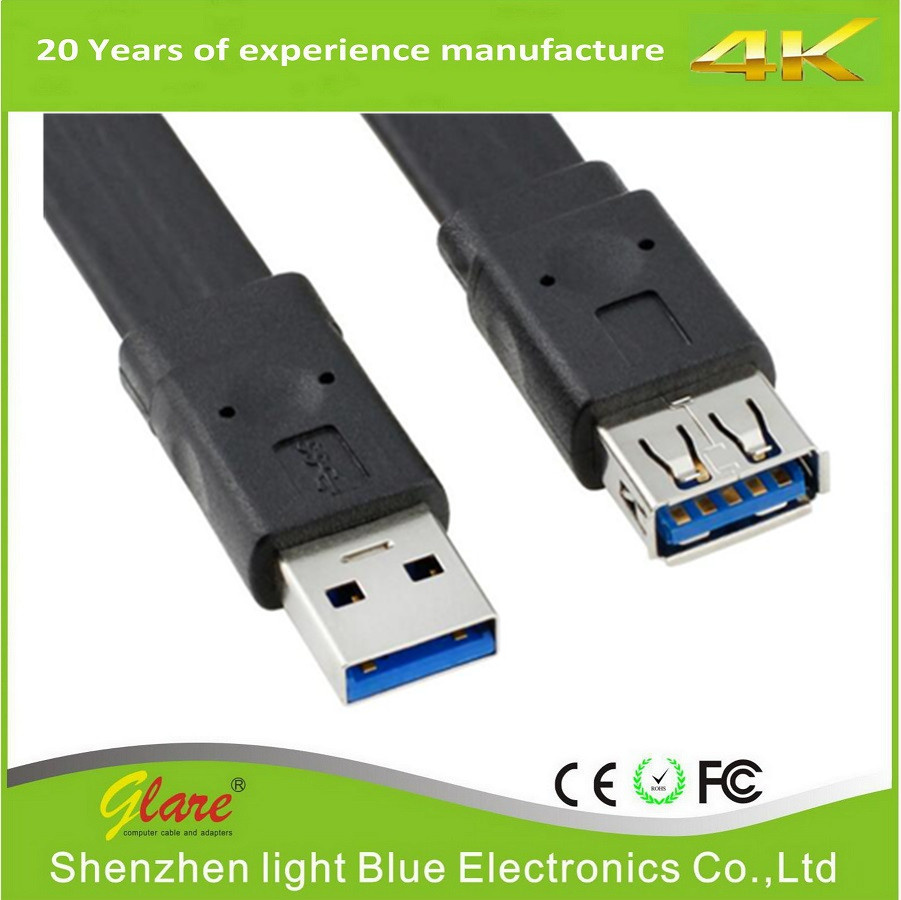

USB3.0 Hard disk cable USB 3.0 adapter cable
Specifications
1.USB 3.0 data sync Cable
2. data transfer rate up to 5Gbps
3. OD4.0/5.5/6.0, L=0.3-1m or custom
4. male to male/male to female /male to micro connectors
5. Bare copper, tinned cooper conductor
6. 30AWG, 28AWG,26AWG,24AWG ,22AWG optional
7. Color, length and gauge can be customized
8. with ROHS,CE,certification
9. PVC insultation material
10. OEM are welcome
Advantages of USB 3.0 Cable
1) completely backward compatible with USB 2.0/1.1/1.0.
2) USB 3.0 cable provided 10 times data transmission speed than USB 2.0; Data transfer rate up to 5Gbps
3) USB 3.0 adopts low voltage differential to transfer date, which reduce interior interference and suit for long-distance transmission.
4) Uploads and downloads are kept on separate data lanes
4) USB 3.0 will charge more devices, quicker
5) USB 3.0 will be more power efficient
| Features | USB3.0 | USB2.0 |
|---|
| Data Rate | SuperSpeed (5.0Gbps) additional | low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps) |
| Data Signal | SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional | Differential Signal: 1 Pair |
| Connector Signals | 4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2 | 2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND |
| Bus Protocol | No polling | Uses polling |
| Power Control | Configuration at multiple link levels | Suspend/Resume by Port |
| Power Supply to Bus | Max. 900 mA | Max. 500 mA |
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
