USB3.0 Metal Cable Connector for Data Device

Name: USB3.0 Metal Cable Connector for Data Device
Brand: all-electronics-online.com
SKU: 783816605
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 7/Set
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-24-USB3.0-P01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP65/IP67
Withstand Voltage(AC.V)1min:	1000V
Connecting Mode:	Plug&Unplug
Method Of Connecting Cable:	Solder
Certification:	CE, RoHS, ISO9001
Gender:	Male
Application:	UHF

Product Description

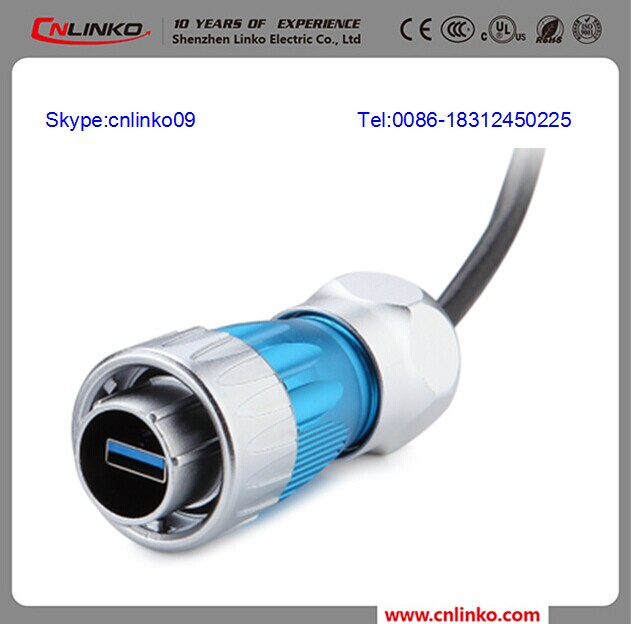

USB3.0 Metal cable connector for data device
The connectors has been widely used in :

1: LED display
2: LED screen
3: LED lighting
4: Communication device/equipment
5: Signal data device
6: Transmitter

Product Specification:

DH-24-USB3.0-P01
Specifications:
Connecting mode:	Plug&unplug
Protection level:	IP65/IP67
Cable specification:	0.15mm2 ~ 0.20mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Package and Payment term:

1: Packing: 10pcs/small box, 100pcs/ middle box, 240pcs/ carton
2: Payment term: T/T in advance
3: Lead time: 5-10 working days
