USB3.0 panel Mount Connector/Waterproof IP67 USB Cable Connector

Name: USB3.0 panel Mount Connector/Waterproof IP67 USB Cable Connector
Brand: all-electronics-online.com
SKU: 777928465
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 2.9/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-24-USB3.0-S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	USB3.0 Male Plug with 1m Cable
MOQ:	100PCS
Usage:	Data Box
Housing:	High-Performance Engineering Plastics
Flammability Rating:	UL94-V0
Gender:	Male
Application:	UHF

Product Description

USB3.0 pannel mount connector/waterproof IP67 usb cable connector

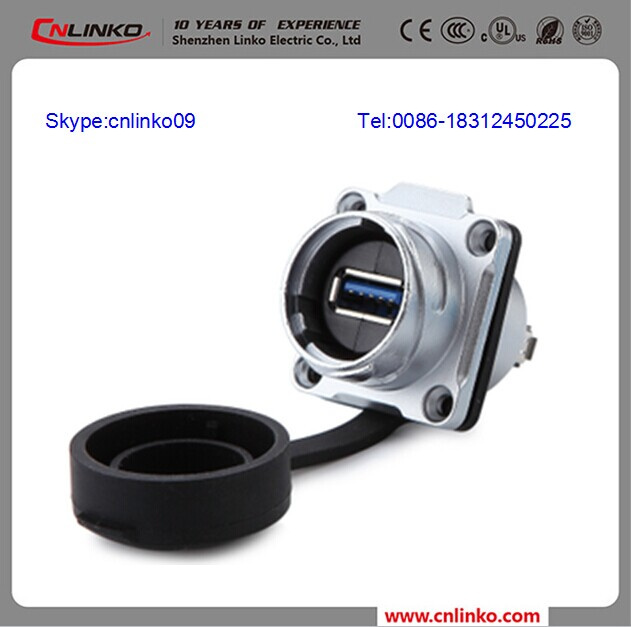

DH-24-USB3.0-S01 USB3.0 female socket
Specifications:
Connecting mode:	Plug&unplug
Protection level:	IP65/IP67
Cable specification:	0.15mm2 ~ 0.20mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
