Use-2, Building Wire, 600 V, Tinned Cu/XLPE/Lszh (UL 854)

Prod Model:	USE-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Referred Standard:	UL 854
Rated Voltage:	600 V
Number Of Cores:	1
Class Of Conductor:	B
Number Of Wires:	7/19/37/61
Size Range:	14-1000 AWG or Kcmil
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Application:	Building
Sheath Material:	Lszh
Range Of Application:	Building
Brand:	Boan

Product Description

USE-2, Building Wire, 600 V, Tinned Cu/XLPE/LSZH (UL 854)

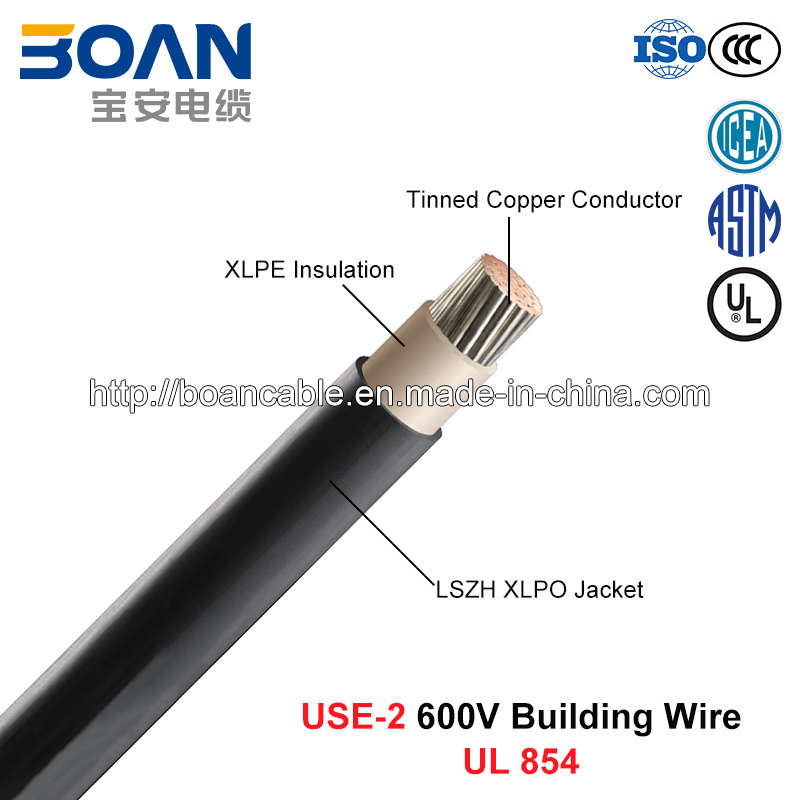

Product Construction:
Conductor: Tinned Copper per ASTM B33/Class B per ASTM B8
Insulation: XLPE
Jacket: black Low-smoke, Zero-Halogen Cross-linked Polyolefin (LSZH XLPO)

Applications:
Conductor is suitable for use as underground service entrance cable for direct burial at conductor temperatures not to exceed 90°C

Compliances:
Industry Compliances:
UL 854
Limited Smoke rating per UL 44 and UL 1685
ICEA T-33-655 smoke, halogen and acid gas requirements
ICEA S-95-658/NEMA WC70

Size	Number of Conductor Wires	Conductor Diameter	Insulation Thickness	Jacket Thickness	Cable Weight
AWG/KCMIL		mm	mm	mm	kg/km
14	7	1.78	0.76	0.38	36
12	7	2.29	0.76	0.38	49
10	7	3.05	0.76	0.38	71
8	7	3.81	1.14	0.38	115
6	7	4.57	1.14	0.79	182
4	7	5.84	1.14	0.79	265
2	7	7.37	1.14	0.79	394
1/0	19	9.4	1.4	1.14	628
2/0	19	10.41	1.4	1.14	771
4/0	19	13.21	1.4	1.14	1168
250	37	14.22	1.65	1.65	1429
350	37	17.02	1.65	1.65	1933
500	37	20.32	1.65	1.65	2683
750	61	24.62	2.03	1.65	3965
1000	61	28.7	2.03	1.65	5936
