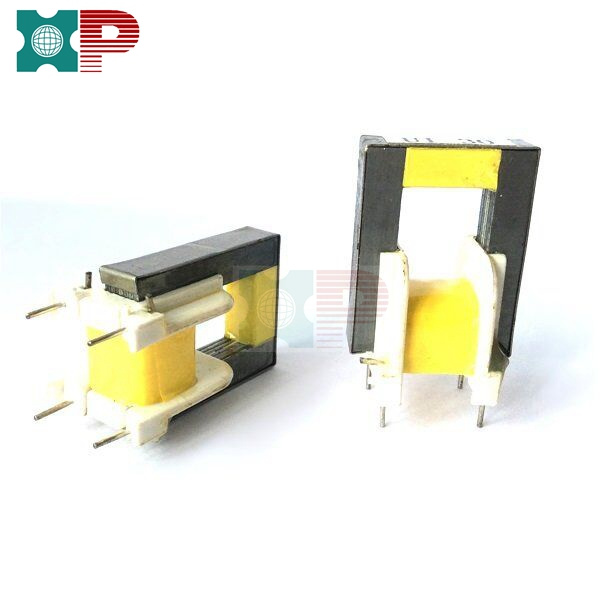

Ut Common Mode Filter/Line Filter/RoHS Complicate Filter

Name: Ut Common Mode Filter/Line Filter/RoHS Complicate Filter
Brand: all-electronics-online.com
SKU: 776644925
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 0.2-0.25/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-UT10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

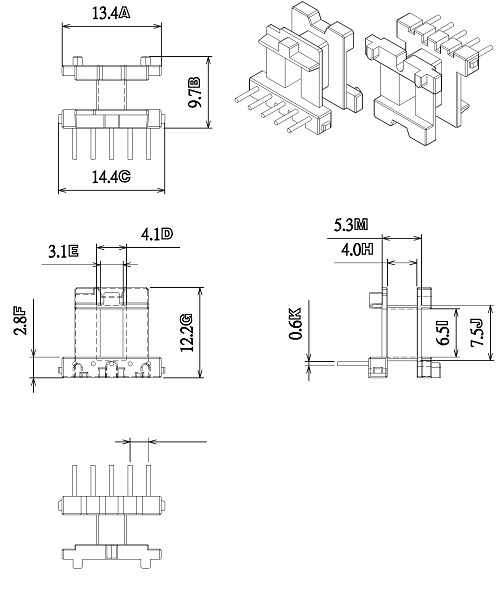

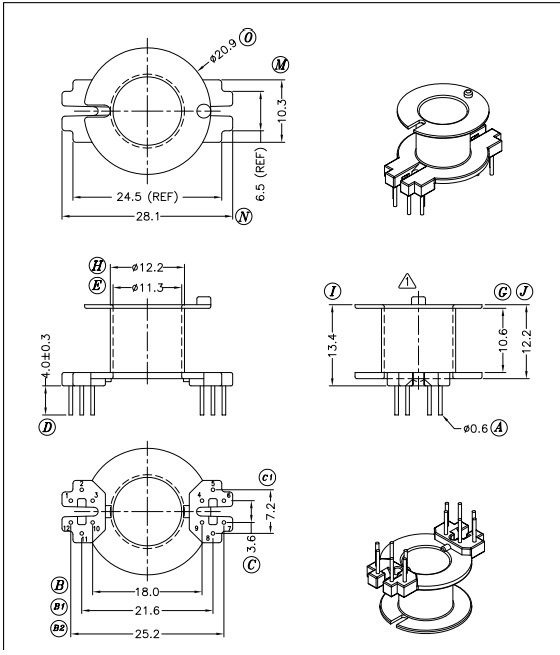

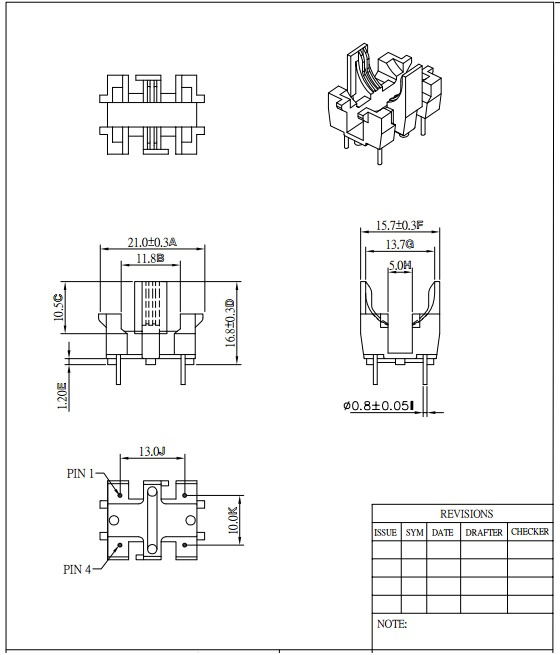

Bobbin:	Customized Type
Application:	Audio
Phase:	Three
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Coil:	Ferrite Core
Shape Of Coil:	RM
Brand:	XP Power

Product Description

Electrical characteristics (temperature: 25+5°C:65+5RH):
Inductance at 1kHz, 0.1V, L (4-3): 10mH minimum L (8-7): 200uH minimum
L (2-1): 32uH minimum L (5-6): 32uH minimum
DC resistance DCR (4-3): 660mΩ maximum DCR (8-7): 12mΩ maximum
DCR (2-1): 48mΩ maximum DCR (5-6): 48mΩ maximum
Hi-pot (50Hz) N2 TO (N1, N3, N4): 3kV AC, 3mA, 1 minute
Applications:
Heat rated current (Irms) will cause coil temperature rise approximately at of 40°C (keep 1 minute)
Storage conditions
To maintain the solder ability of terminal electrodes:
Taipaq products meet IPC/JEDEC J-STD-020D standard-MSL, level 1
Temperature and humidity conditions: less than 40°C and 60% RH
Recommended products should be used within 12 months form time of delivery
Packing material should be kept where no chlorine or sulfur exists in the air
Transportation:
Products should be handled with care to avoid damage or contamination from perspiration and skin oils
Use of tweezers or vacuum pick up is strongly recommended for individual components
Bulk handling should ensure that abrasion and mechanical shock are minimized

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
