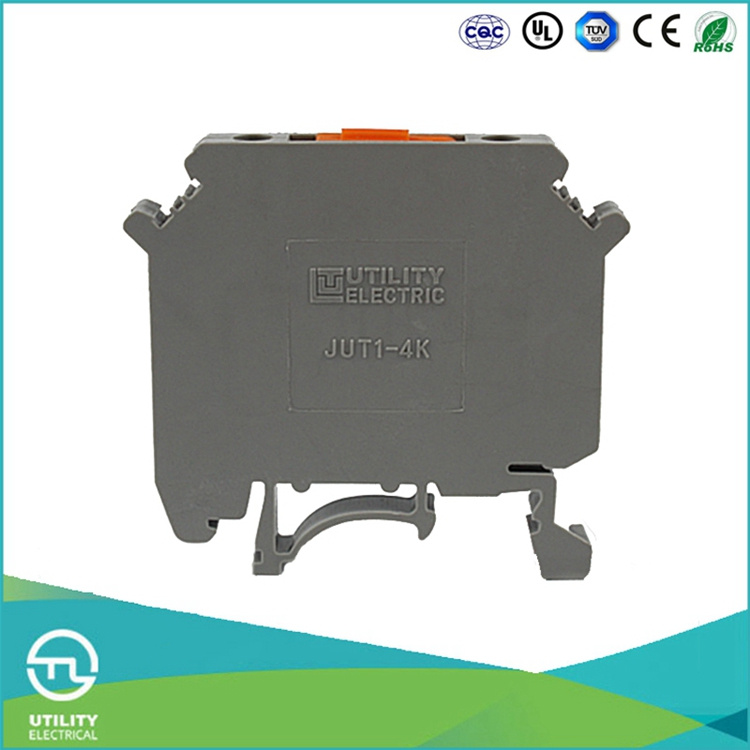

Name: Utl Electric Motor Plastic Screw Terminal
Brand: all-electronics-online.com
SKU: 720523402
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JUT1-4K
IEC:	60947-7-1
Thickness:	6.2
Width:	42.5
Height 1:	47
Height 2:	52
Application:	Transmission of Electrical Signals
Type:	DIN Rail Screw Terminal Blocks
Material:	Red Copper
Certification:	TUV Ce CQC
Brand:	Utl

Product Description

UTL China Top Selling Products Electric Motor Plastic Screw Terminal Block Connector

Model No.	JUT1-4K
Item name	JUT1 Screw Series
Color	Grey as photo,or OEM Color
Size	TH:6.2 W:42.5 H:47 H:52
Terminal	With mounting feet,installed on tracks NS32-G or NS35-U
Rigid/soft Cable	0.2-6.0mm2/0.2-4.0mm2
Conductor Size	24-10AWG
Central adaptor	Used at the center of terminal for transverse bridge connection,and screw head with insulation ring,which is divied into:2-digit,3-digit,5-digit and 10-digit
Voltage rating/Current rating	800V/16A
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard
Logo	Customized logo are available as request
Design ability	We can supply sample,OEM&ODM is welcome

Features:

Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
Two ends on the top with white marking system to realize uniformed sign.
The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.
General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.
Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.
Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
