| Prod Model: |
TE Type Insulated Cold End Terminal |
| Max Voltage: |
Imax=300V |
| Shape Material: |
Red Copper |
| Colour: |
White Red Yellow Blue |
| Size: |
as Below |
| Application: |
Transmission of Electrical Signals |
| Type: |
Te Type Insulated Cold End Terminal |
| Material: |
Red Copper |
| Certification: |
TUV Ce CQC |
| Brand: |
Utl |

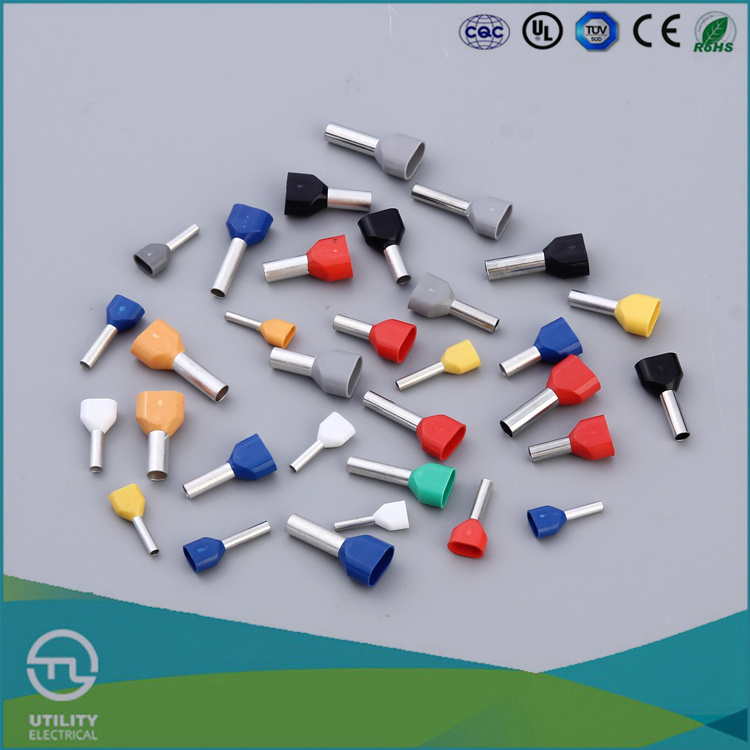

Product Description
UTL Tube Naked Terminal EN type all red copper connector bare terminalTerminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.
General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.
The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.
Two ends on the top with white marking system to realize uniformed sign.
Parameter | Max voltage:105ºC Ui=300V Material:purple copper Insulating material:nylon |
| Item No | Conductor(mm2) | Dimension(mm) | Color |
| F | L | W | B | Dφ | Cφ | German | French |
| TE 0508 | 2×0.5 | 8 | 14.5 | 5 | 6.5 | 1.8 | 1.5 | white | white |
| TE 7508 | 2×0.75 | 8 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | blue | gray |
| TE 7510 | 2×0.75 | 10 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 |
| TE 1008 | 2×1.0 | 8 | 15.1 | 5.5 | 7.1 | 2.3 | 2 | red | red |
| TE 1010 | 2×1.0 | 10 | 17.1 | 5.5 | 7.1 | 2.3 | 2 |
| TE 1508 | 2×1.5 | 8 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | black | yellow |
| TE 1512 | 2×1.5 | 12 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 |
| TE 2510 | 2×2.5 | 10 | 18.5 | 8 | 8.5 | 3.3 | 2.9 | gray | blue |
| TE 2513 | 2×2.5 | 13 | 21.5 | 8 | 8.5 | 3.3 | 2.9 |
| TE 4012 | 2×4.0 | 12 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | orange | gray |
| TE 6014 | 2×6.0 | 14 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | green | yellow |
| TE 10-14 | 2×10.0 | 14 | 26.6 | 12.6 | 12 | 6.9 | 6.5 | brown | red |
| TE 16-14 | 2×16.0 | 14 | 31.3 | 19 | 17.3 | 8.7 | 8.3 | mile | blue |
Service

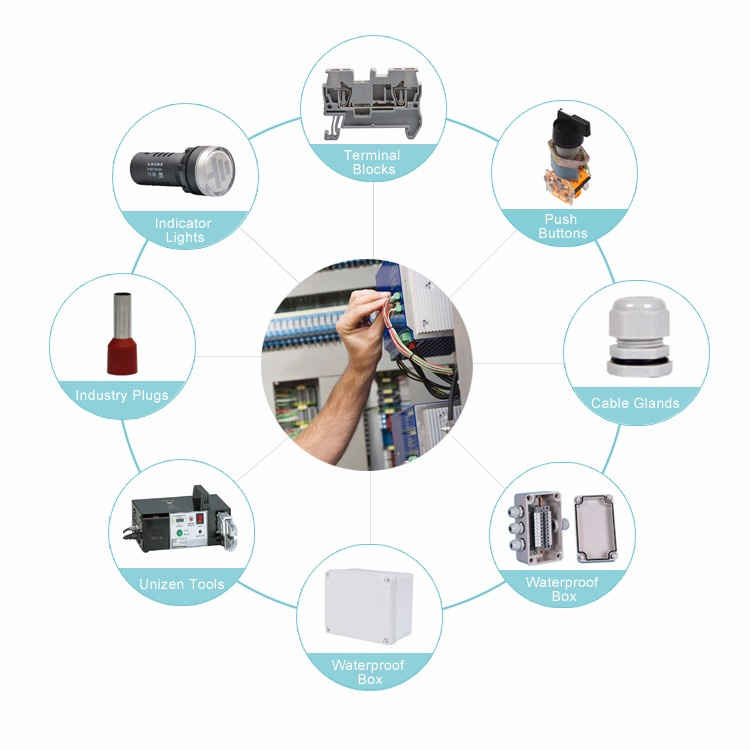

- We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
- We can supply you all these electric components toghther, saving your time serching

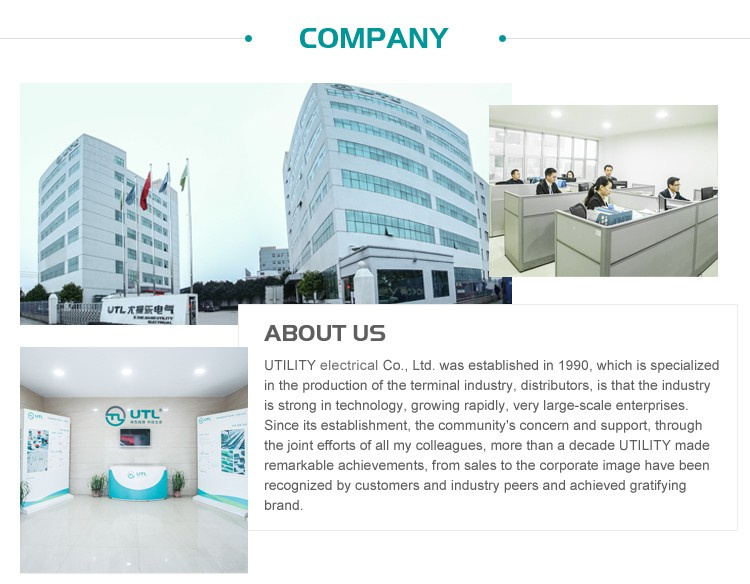

Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

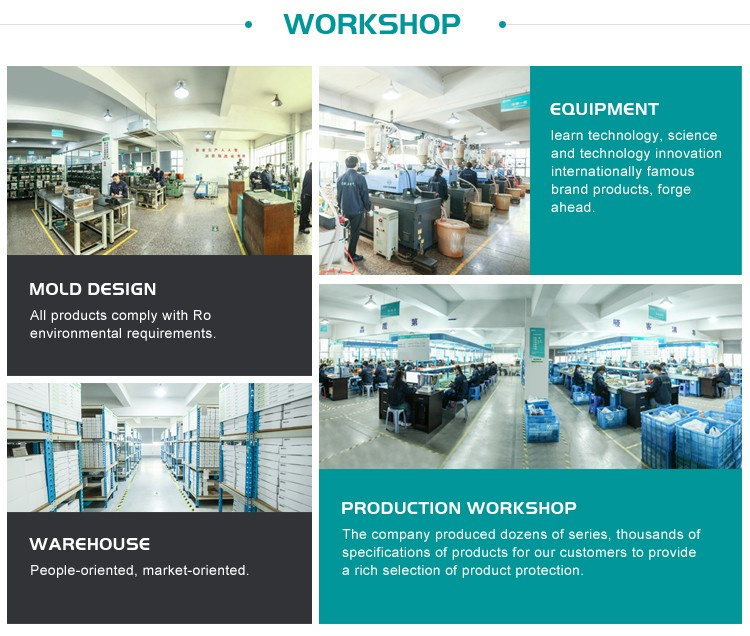

Work Shop
