| Prod Model: |
SNB |
| Cable Size: |
0.5-1.5mm2 |
| Max Current: |
Imax=19A |
| Shape Material: |
Red Copper |
| Thickness: |
0.75mm |
| Application: |
Transmission of Electrical Signals |
| Type: |
Circular Naked Terminal |
| Material: |
Red Copper |
| Certification: |
TUV Ce CQC |
| Brand: |
Utl |
Product Description

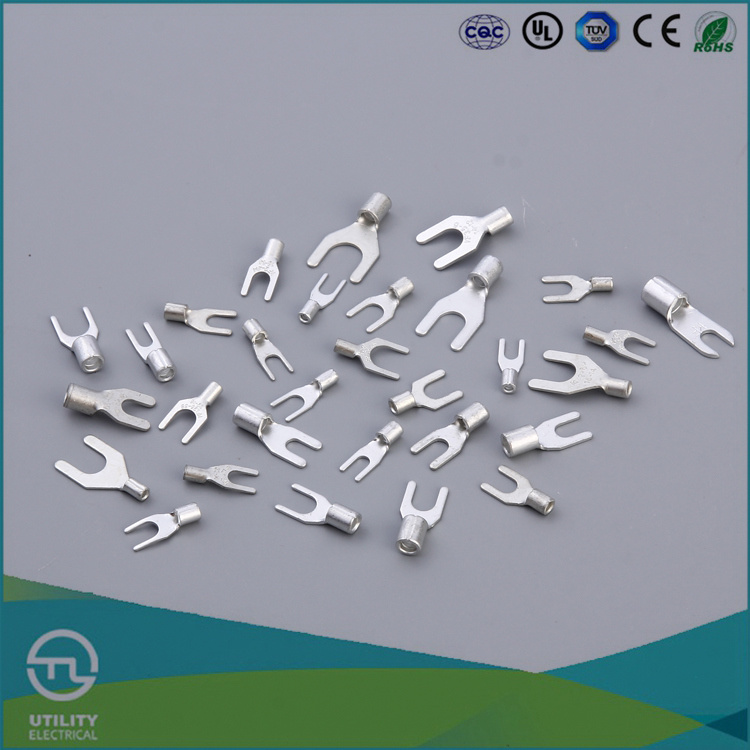

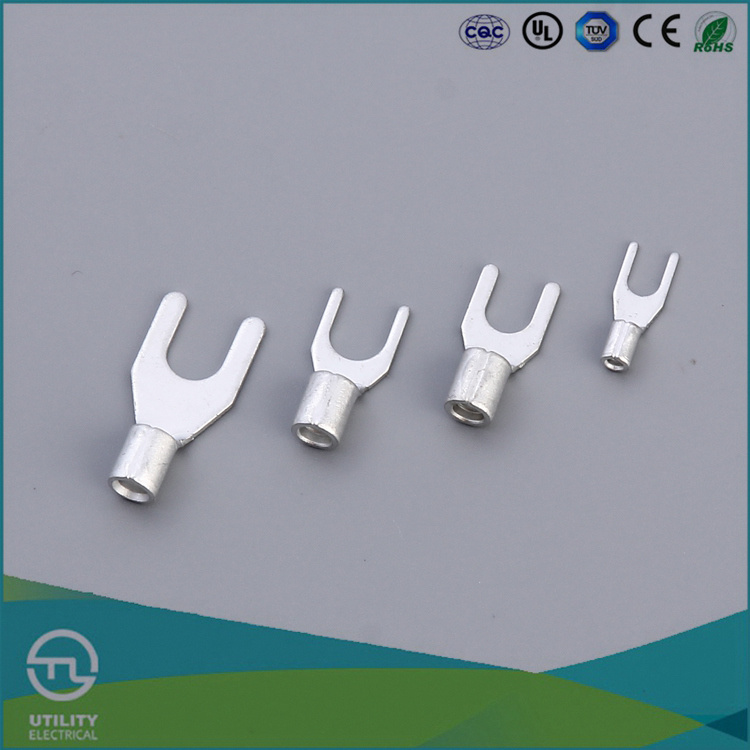

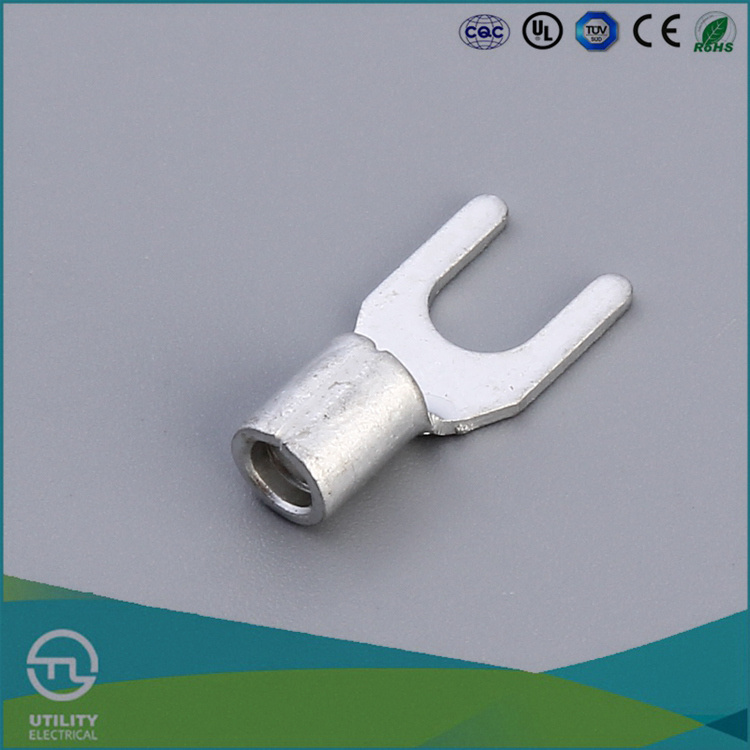

UTL RNB wire connectors Circular Naked Terminal all red copper
Parameter | Cable size:0.5~1.5mm2(A.W.G.22~16) max current:Imax=19A material:purple copper thickness:0.75mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| SNB 1.25-3 | #4 | 3.2 | 5.7 | 16 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS 1.25-3.5 | #6 | 3.7 | 5.7 | 16 | 6.5 |
| SNBL 1.25-3.5 | #6 | 3.7 | 6.4 | 16 | 6.5 |
| SNBS 1.25-4 | #8 | 4.3 | 6.4 | 16 | 6.5 |
| SNBM 1.25-4 | #8 | 4.3 | 7.2 | 16 | 6.5 |
| SNBL 1.25-4 | #8 | 4.3 | 8.1 | 16 | 6.5 |
| SNBS 1.25-5 | #10 | 5.3 | 8.1 | 16 | 6.5 |
| SNBL 1.25-5 | #10 | 5.3 | 9.5 | 16 | 6.5 |
| SNBS 1.25-6 | 1/4 | 6.4 | 9.5 | 16 | 6.5 |
| SNBL 1.25-6 | 1/4 | 8.4 | 12 | 22 | 11 |
| Cable size:1.5~2.5mm2(A.W.G.16~14) max current:Imax=27A material:purple copper thickness:0.8mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| SNB 2-3 | #4 | 3.2 | 5.7 | 16 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS 2-3.5 | #6 | 3.7 | 5.7 | 16 | 6.5 |
| SNBL 2-3.5 | #6 | 3.7 | 6 | 16 | 6.5 |
| SNBS 2-4 | #8 | 4.3 | 6.4 | 16 | 6.5 |
| SNBM 2-4 | #8 | 4.3 | 7.2 | 16 | 6.5 |
| SNBL 2-4 | #8 | 4.3 | 8.1 | 16 | 6.5 |
| SNBS 2-5 | #10 | 5.3 | 8.1 | 16 | 6.5 |
| SNBL 2-5 | #10 | 5.3 | 9.5 | 16 | 6.5 |
| SNBS 2-6 | 1/4 | 6.4 | 9.5 | 16 | 6.5 |
| SNBL 2-6 | 1/4 | 6.4 | 12 | 22 | 11 |
| Cable size:2.5~4mm2(A.W.G.14~12) max current:Imax=37A material:purple copper thickness:1.0mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| SNB 3.5-3 | #8 | 3.2 | 5.7 | 18.3 | 7 | 6 | 5 | 3 |
| SNB 3.5-4 | #10 | 4.3 | 8 | 18.3 | 7 |
| SNB 3.5-5 | #10 | 5.3 | 8 | 18.3 | 7 |
| SNB 3.5-6 | 1/4 | 6.4 | 12 | 21.5 | 12.1 |
| Cable size:4~6mm2(A.W.G.12~10) max current:Imax=48A material:purple copper thickness:1.0mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| SNB 5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS 5.5-4 | #8 | 4.3 | 8.3 | 19.5 | 7.5 |
| SNBL 5.5-4 | #8 | 4.3 | 9 | 19.5 | 7.5 |
| SNB 5.5-5 | #10 | 5.3 | 9 | 19.5 | 7.5 |
| SNBS 5.5-6 | 1/4 | 6.4 | 9 | 19.5 | 7.5 |
| SNBL 5.5-6 | 1/4 | 6.4 | 12 | 25.5 | 12 |
| SNB 5.5-8 | 5/16 | 8.4 | 14 | 24.5 | 11.5 |
| material:purple copper thickness:1.2mm 1.4mm 1.7mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| SNB 8-4 | #8 | 4.3 | 8.7 | 23 | 6 | 8.5 | 7.2 | 4.5 |
| SNB 8-5 | #10 | 5.3 | 12 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 |
| SNB 8-6 | 1/4 | 6.4 | 12 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 |
| SNB 8-8 | 5/16 | 8.4 | 14.5 | 28 | 8.3 | 8.5 | 7.2 | 4.5 |
| SNB 14-6 | 1/4 | 6.4 | 12 | 28 | 7.5 | 10.5 | 9 | 5.8 |
| SNB 14-8 | 5/16 | 8.4 | 14 | 28 | 7.5 | 10.5 | 9 | 5.8 |
| SNB 22-8 | 5/16 | 8.4 | 14 | 34.5 | 9 | 12 | 11.5 | 7.7 |
