| Prod Model: |
RNB |
| Cable Size: |
0.5-1.5mm2 |
| Max Current: |
Imax=19A |
| Shape Material: |
Red Copper |
| Thickness: |
0.75mm |
| Application: |
Transmission of Electrical Signals |
| Type: |
Circular Naked Terminal |
| Material: |
Red Copper |
| Certification: |
TUV Ce CQC |
| Brand: |
Utl |
Product Description

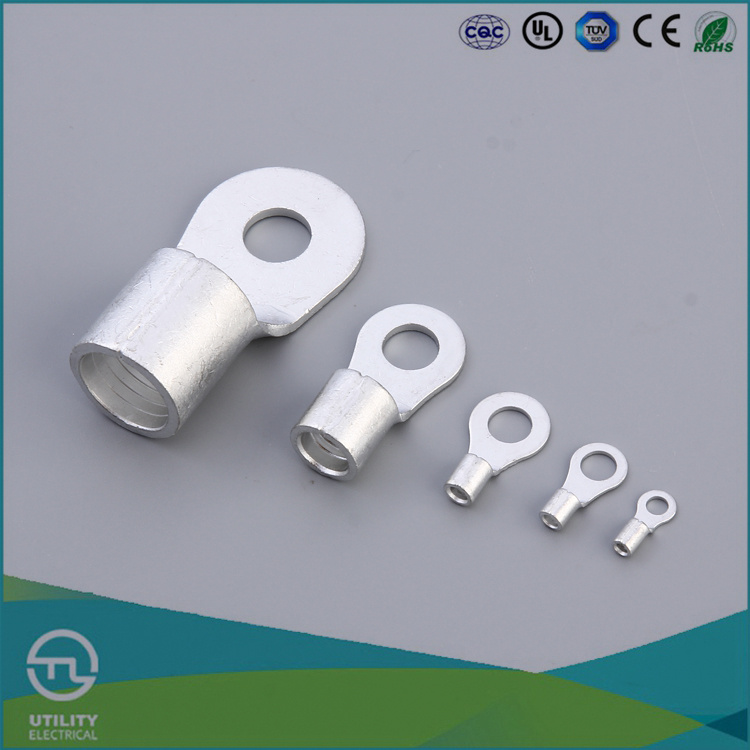

UTL RNB wire connectors Circular Naked Terminal all red copper
Parameter
| Cable size: 0.5~1.5mm2(A.W.G.22~16) max current:Imax=19A material:purple copper thickness:0.75mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS 1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 |
| RNBM 1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 |
| RNBL 1.25-3.5 | #6 | 3.7 | 8 | 15.8 | 7 |
| RNBS 1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 |
| RNBM 1.25-4 | #8 | 4.3 | 8 | 15.8 | 7 |
| RNB 1.25-5 | #10 | 5.3 | 8 | 15.8 | 7 |
| RNBL 1.25-5 | #10 | 5.3 | 9.8 | 18 | 8.5 |
| RNBS 1.25-6 | 1/4 | 6.4 | 9.8 | 18 | 8.5 |
| RNB 1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 |
| RNB 1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 |
| RNB 1.25-10 | 3/18 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB 1.25-12 | 1/2 | 13 | 19.2 | 31 | 16.5 |
| Cable size: 1.5~2.5mm2(A.W.G.16~14) max current:Imax=27A material:purple copper thickness:0.8mm |
| | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 2-3 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS 2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 |
| RNBM 2-3.5 | #6 | 3.7 | 6.6 | 16 | 7 |
| RNBL 2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 |
| RNBS 2-4 | #8 | 4.3 | 6.6 | 16 | 7 |
| RNBL 2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 |
| RNBS 2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 |
| RNBL 2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 |
| RNB 2-6 | 1/4 | 6.4 | 12 | 21.8 | 11 |
| RNB 2-8 | 5/16 | 8.4 | 12 | 21.8 | 11 |
| RNB 2-10 | 3/18 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB 2-12 | 1/2 | 13 | 19.2 | 31 | 16.5 |
| Cable size: 2.5~4mm2(A.W.G.14~12) max current:Imax=37A material:purple copper thickness:1.0mm |
| | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 3.5-4 | #8 | 4.3 | 8 | 18 | 7.7 | 6 | 5 | 3 |
| RNBS 3.5-5 | #10 | 5.3 | 8 | 18 | 7.7 |
| RNBL 3.5-5 | #10 | 5.3 | 12 | 21.4 | 7.7 |
| RNB 3.5-6 | 1/4 | 6.4 | 12 | 21.4 | 7.7 |
| RNB 3.5-8 | 5/16 | 8.4 | 15 | 28 | 13.7 |
| Cable size: 4~6mm2(A.W.G.12~10) max current:Imax=48A material:purple copper thickness:1.0mm |
| | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS 5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 |
| RNBL 5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 |
| RNB 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 |
| RNB 5.5-6 | 1/4 | 6.4 | 12 | 25.8 | 13 |
| RNB 5.5-8 | 5/16 | 8.4 | 15 | 28 | 13.7 |
| RNB 5.5-10 | 3/8 | 10.5 | 15 | 28 | 13.7 |
| RNB 5.5-12 | 1/2 | 13 | 19.2 | 32.4 | 16 |
| Cable size: 6~10mm2(A.W.G.8) max current:Imax=62A material:purple copper thickness:1.2mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 |
| RNBM 8-5 | #10 | 5.3 | 12 | 23.8 | 9.3 |
| RNBL 8-5 | #10 | 5.3 | 15 | 29.8 | 13.8 |
| RNBS 8-6 | 1/4 | 6.4 | 12 | 23.8 | 9.3 |
| RNBL 8-6 | 1/4 | 6.4 | 15 | 29.8 | 13.8 |
| RNB 8-8 | 5/16 | 8.4 | 15 | 29.8 | 13.8 |
| RNB 8-10 | 3/8 | 10.5 | 15 | 29.8 | 13.8 |
| RNB 8-12 | 1/2 | 13 | 20 | 33.5 | 15 |
| Cable size: 10~16mm2(A.W.G.6) max current:Imax=88A material:purple copper thickness:1.4mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 14-4 | #8 | 4.3 | 12 | 29.8 | 13.3 | 10.5 | 9 | 5.8 |
| RNB 14-5 | #10 | 5.3 | 12 | 29.8 | 13.3 |
| RNBS 14-6 | 1/4 | 6.4 | 12 | 29.8 | 13.3 |
| RNBL 14-6 | 1/4 | 6.4 | 16 | 32.8 | 13.3 |
| RNB 14-8 | 5/16 | 8.4 | 16 | 32.8 | 14.5 |
| RNB 14-10 | 3/8 | 10.5 | 16 | 32.8 | 14.5 |
| RNB 14-12 | 1/2 | 13 | 22 | 41 | 19.5 |
| Cable size: 16~25mm2(A.W.G.4) max current:Imax=115A material:purple copper thickness:1.7mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNBS 22-5 | #10 | 5.3 | 12.2 | 33.2 | 14.5 | 12 | 11.5 | 7.7 |
| RNBL 22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 |
| RNBS 22-6 | 1/4 | 6.4 | 12.2 | 33.2 | 14.5 |
| RNBL 22-6 | 1/4 | 6.4 | 16.5 | 33.7 | 13.5 |
| RNB 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 |
| RNB 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 |
| RNB 22-11 | 7/16 | 11.5 | 22 | 42.5 | 19.5 |
| RNB 22-12 | 1/2 | 13 | 22 | 42.5 | 19.5 |
| Cable size: 35~50mm2(A.W.G.2) max current:Imax=160A material:purple copper thickness:1.8mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 38-5 | #10 | 5.3 | 15.3 | 39 | 18.3 | 14 | 13.3 | 9.4 |
| RNB 38-6 | 1/4 | 6.4 | 15.3 | 39 | 18.3 |
| RNBS 38-8 | 5/16 | 8.4 | 15.3 | 39 | 18.3 |
| RNBL 38-8 | 5/16 | 8.4 | 22 | 42.7 | 17.7 |
| RNBS 38-10 | 3/8 | 10.5 | 15.3 | 39 | 18.3 |
| RNBL 38-10 | 3/8 | 10.5 | 22 | 42.7 | 17.7 |
| RNB 38-11 | 7/16 | 11.5 | 22 | 42.7 | 17.7 |
| RNB 38-12 | 1/2 | 13 | 22 | 42.7 | 17.7 |
| Cable size:50~70mm2(A.W.G.1/0) max current:Imax=215A material:purple copper thickness:1.7mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 60-6 | 1/4 | 6.4 | 22 | 49.7 | 20.7 | 18 | 15.4 | 11.4 |
| RNB 60-8 | 5/16 | 8.4 |
| RNB 60-10 | 3/8 | 10.5 |
| RNB 60-11 | 7/16 | 11.5 |
| RNB 60-12 | 1/2 | 13 |
| RNB 60-14 | 9/16 | 15 | 32 | 57.5 | 23.5 |
| RNB 60-16 | 5/8 | 17 |
| RNB 60-18 | 11/16 | 19 |
| RNB 60-20 | 3/4 | 21 |
| RNB 60-22 | 7/8 | 23 |
| Cable size:70~95mm2(A.W.G.2/0) max current:Imax=235A material:purple copper thickness:1.9mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 70-6 | 1/4 | 6.4 | 24 | 51 | 20 | 19 | 17.5 | 13.3 |
| RNB 70-8 | 5/16 | 8.4 |
| RNB 70-10 | 3/8 | 10.5 |
| RNB 70-11 | 7/16 | 11.5 |
| RNB 70-12 | 1/2 | 13 |
| RNB 70-14 | 9/16 | 15 | 32 | 61 | 26 |
| RNB 70-16 | 5/8 | 17 |
| RNB 70-18 | 11/16 | 19 |
| RNB 70-20 | 3/4 | 21 |
| RNB 70-22 | 7/8 | 23 |
| Cable size:95~120mm2(A.W.G.3/0) max current:Imax=255A material:purple copper thickness:2.2mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 80-6 | 1/4 | 6.4 | 27 | 54.2 | 20.7 | 20 | 19.5 | 14.5 |
| RNB 80-8 | 5/16 | 8.4 |
| RNB 80-10 | 3/8 | 10.5 |
| RNB 80-11 | 7/16 | 11.5 |
| RNB 80-12 | 1/2 | 13 |
| RNB 80-14 | 9/16 | 15 | 32 | 68 | 32 |
| RNB 80-16 | 5/8 | 17 |
| RNB 80-18 | 11/16 | 19 |
| RNB 80-20 | 3/4 | 21 |
| RNB 80-22 | 7/8 | 23 |
| Cable size:120~150mm2(A.W.G.4/0) max current:Imax=300A material:purple copper thickness:2.6mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 100-6 | 1/4 | 6.4 | 28.5 | 55.6 | 20.4 | 21 | 22.1 | 16.4 |
| RNB 100-8 | 5/16 | 8.4 |
| RNB 100-10 | 3/8 | 10.5 |
| RNB 100-11 | 7/16 | 11.5 |
| RNB 100-12 | 1/2 | 13 |
| RNB 100-14 | 9/16 | 15 | 32 | 69 | 32 |
| RNB 100-16 | 5/8 | 17 |
| RNB 100-18 | 11/16 | 19 |
| RNB 100-20 | 3/4 | 21 |
| RNB 100-22 | 7/8 | 23 |
| Cable size:150~185mm2(A.W.G.250~300MCB) max current:Imax=395A material:purple copper thickness:3.2mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 150-8 | 5/16 | 8.4 | 36 | 66 | 23 | 27 | 26.6 | 19.5 |
| RNB 150-10 | 3/8 | 10.5 |
| RNB 150-11 | 7/16 | 11.5 |
| RNB 150-12 | 1/2 | 13 |
| RNB 150-14 | 9/16 | 15 |
| RNB 150-16 | 5/8 | 17 |
| RNB 150-18 | 11/16 | 19 | 36 | 81 | 36 |
| RNB 150-20 | 3/4 | 21 |
| RNB 150-22 | 7/8 | 23 |
| RNB 150-24 | 15/16 | 25 |
| RNB 150-27 | 1 | 28 |
| Cable size:185~240mm2(A.W.G.300~350MCB) max current:Imax=440A material:purple copper thickness:3.5mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 180-8 | 5/16 | 8.4 | 38.5 | 69 | 24.5 | 28.5 | 28.6 | 21 |
| RNB 180-10 | 3/8 | 10.5 |
| RNB 180-11 | 7/16 | 11.5 |
| RNB 180-12 | 1/2 | 13 |
| RNB 180-14 | 9/16 | 15 |
| RNB 180-16 | 5/8 | 17 |
| RNB 180-18 | 11/16 | 19 | 38.5 | 86.6 | 39 |
| RNB 180-20 | 3/4 | 21 |
| RNB 180-22 | 7/8 | 23 |
| RNB 180-24 | 15/16 | 25 |
| RNB 180-27 | 1 | 28 |
| Cable size:240~300mm2(A.W.G.400/500MCB) max current:Imax=470A material:purple copper thickness:3.9mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 200-8 | 5/16 | 8.4 | 44 | 72 | 24.5 | 31.5 | 32.6 | 24 |
| RNB 200-10 | 3/8 | 10.5 |
| RNB 200-11 | 7/16 | 11.5 |
| RNB 200-12 | 1/2 | 13 |
| RNB 200-14 | 9/16 | 15 |
| RNB 200-16 | 5/8 | 17 |
| RNB 200-18 | 11/16 | 19 | 44 | 91 | 37.5 |
| RNB 200-20 | 3/4 | 21 |
| RNB 200-22 | 7/8 | 23 |
| RNB 200-24 | 15/16 | 25 |
| RNB 200-27 | 1 | 28 |
| Cable size:300~400mm2(A.W.G.500/600MCB) max current:Imax=650A material:purple copper thickness:4.2mm |
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) |
| B | L | F | E | Dφ | dφ |
| RNB 325-8 | 5/16 | 8.4 | 50.5 | 88 | 33.5 | 35.5 | 37.1 | 28 |
| RNB 325-10 | 3/8 | 10.5 |
| RNB 325-11 | 7/16 | 11.5 |
| RNB 325-12 | 1/2 | 13 |
| RNB 325-14 | 9/16 | 15 |
| RNB 325-16 | 5/8 | 17 |
| RNB 325-18 | 11/16 | 19 | 50.5 | 105.7 | 45 |
| RNB 325-20 | 3/4 | 21 |
| RNB 325-22 | 7/8 | 23 |
| RNB 325-24 | 15/16 | 25 |
| RNB 325-27 | 1 | 28 |
