| Prod Model: |
SC type |
| Max Voltage: |
Imax=300V |
| Shape Material: |
Red Copper |
| Colour: |
as in The Picture |
| Application: |
Transmission of Electrical Signals |
| Type: |
Sc Type |
| Material: |
Red Copper |
| Certification: |
TUV Ce CQC |
| Brand: |
Utl |

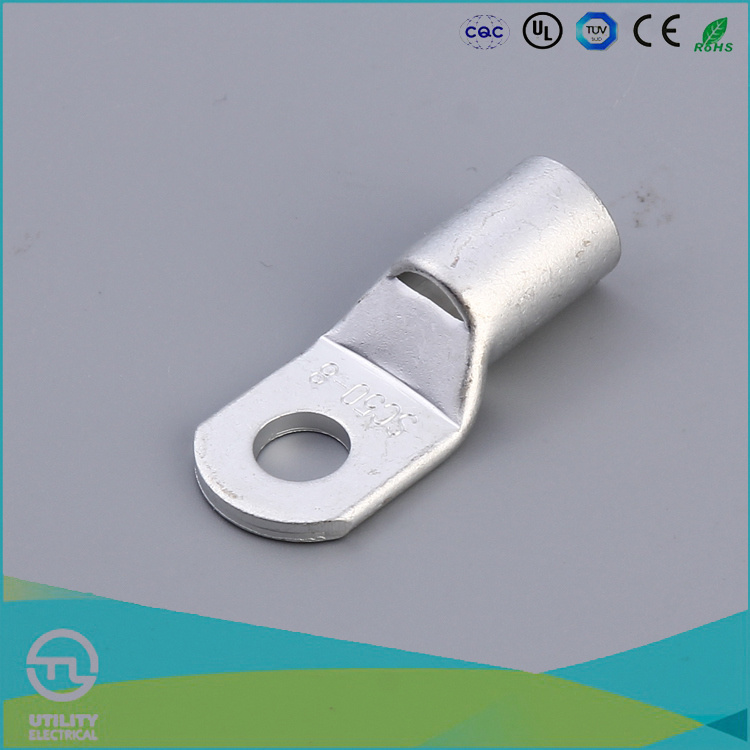

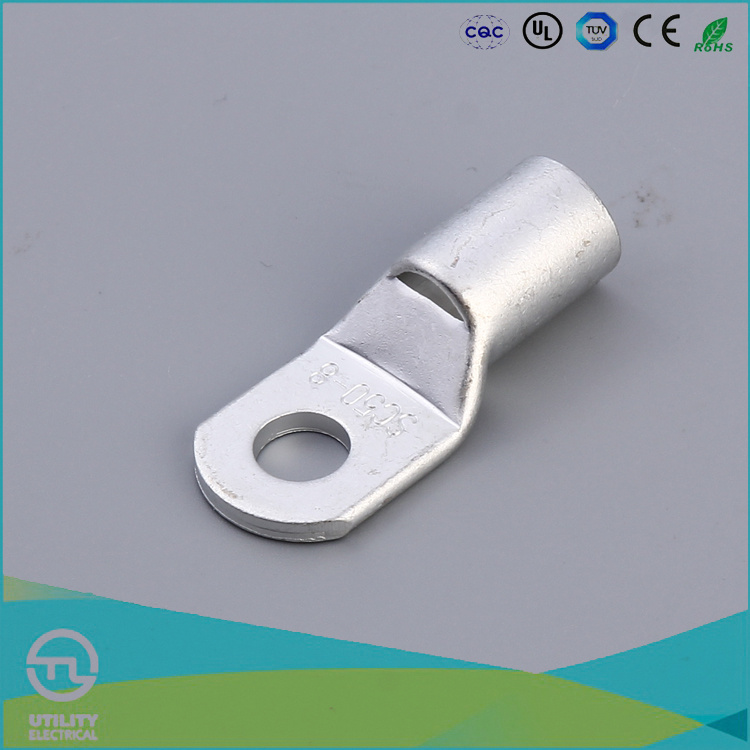

Product Description
UTL FDD MDD Series Terminals Male Female Pre-insulated Cable Lugs

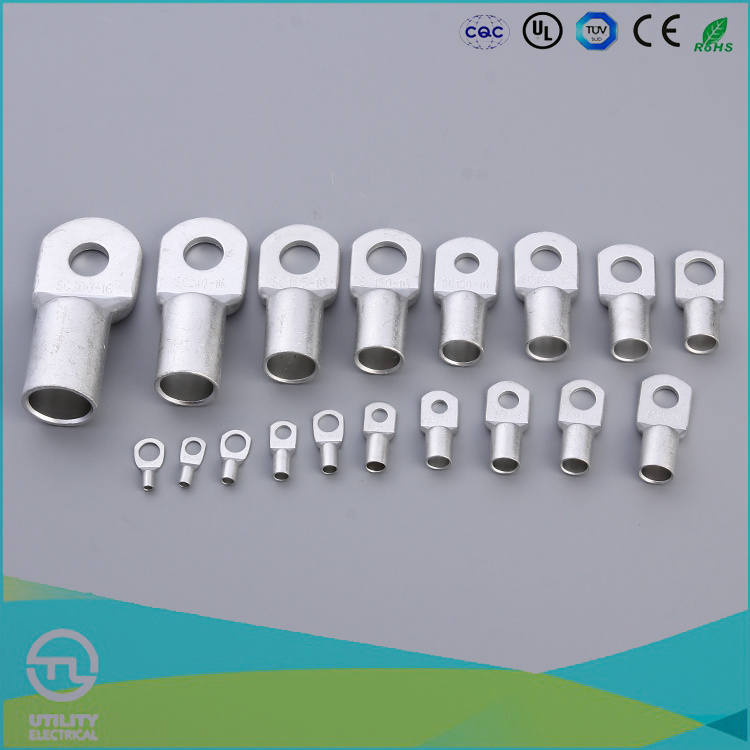

Parameter | Model | Diamension / mm |
| φd2 | B | L | ΦD | Φd | E |
| SC1.5-4 | 4.3 | 7.5 | 18 | 3.1 | 1.9 | 6.5 |
| SC1.5-5 | 5.2 | 8 | 18 |
| SC1.5-6 | 6.5 | 9.2 | 18 | 3.4 |
| SC2.5-4 | 4.3 | 8 | 19 | 4 | 2.8 | 7 |
| SC2.5-5 | 5.2 | 8 | 20 |
| SC2.5-6 | 6.5 | 9.2 | 20 | 2.6 |
| SC4-4 | 4.3 | 8 | 19.5 | 4.5 | 3.2 | 7.5 |
| SC4-5 | 5.2 | 8 | 20.5 |
| SC4-6 | 6.5 | 9.2 | 22 |
| SC4-8 | 8.5 | 12 | 23.5 | 4.8 |
| SC6-5 | 5.2 | 9.2 | 22 | 5.1 | 3.7 | 8 |
| SC6-6 | 6.5 | 9.8 | 23 |
| SC6-8 | 8.5 | 12 | 24 | 5.3 |
| SC6-10 | 10.3 | 12.8 | 24 |
| SC10-5 | 5.2 | 10.3 | 24 | 6.1 | 4.5 | 9 |
| SC10-6 | 6.5 | 10.3 | 24 |
| SC10-8 | 8.5 | 12 | 25 |
| SC10-10 | 10.3 | 13.2 | 26.5 | 6.3 |
| SC16-6 | 6.5 | 11 | 27.5 | 7.3 | 5.7 | 11 |
| SC16-8 | 8.5 | 12.5 | 29.5 |
| SC16-10 | 10.5 | 14 | 30 | 7.5 |
| SC25-6 | 6.5 | 13.1 | 32.5 | 9 | 7.2 | 13.5 |
| SC25-8 | 8.5 | 13.1 | 33 |
| SC25-10 | 10.5 | 14.5 | 34 |
| SC25-12 | 13 | 16.5 | 37 |
| SC35-6 | 6.5 | 15.8 | 36 | 10.8 | 8.5 | 14.5 |
| SC35-8 | 8.5 | 15.8 | 37 |
| SC35-10 | 10.5 | 15.8 | 38 |
| SC35-12 | 13 | 17.4 | 38 |
| SC50-6 | 6.5 | 18.1 | 41 | 12.5 | 9.8 | 17 |
| SC50-8 | 8.5 | 18.1 | 42.5 |
| SC50-10 | 10.5 | 18.2 | 44 |
| SC50-12 | 13 | 18.2 | 44 |
| SC70-6 | 6.5 | 21 | 48.5 | 14.5 | 11.5 | 19.5 |
| SC70-8 | 8.5 |
| SC70-10 | 10.5 | 50 |
| SC70-12 | 13 |
| SC70-14 | 15 |
| SC70-16 | 17 | 23 |
| SC95-8 | 8.5 | 24.8 | 57 | 17 | 13.7 | 23.5 |
| SC95-10 | 10.5 |
| SC95-12 | 13 |
| SC95-14 | 15 |
| SC95-16 | 17 | 26 |
| SC120-8 | 8.5 | 27.6 | 63 | 19 | 15 | 25.5 |
| SC120-10 | 10.5 |
| SC120-12 | 13 |
| SC120-14 | 15 |
| SC120-16 | 17 |
| SC120-20 | 21 |
| SC150-8 | 8.5 | 30.5 | 70.5 | 21 | 16.7 | 29 |
| SC150-10 | 10.5 |
| SC150-12 | 13 |
| SC150-14 | 15 |
| SC150-16 | 17 |
| SC150-20 | 21 |
| SC185-10 | 10.5 | 34.5 | 77 | 23.5 | 19.5 | 32 |
| SC185-12 | 13 |
| SC185-14 | 15 |
| SC185-16 | 17 |
| SC185-20 | 21 |
| SC240-10 | 10.5 | 38 | 90.5 | 26 | 21 | 39 |
| SC240-12 | 13 |
| SC240-14 | 15 |
| SC240-16 | 17 |
| SC240-18 | 19 |
| SC240-20 | 21 |
| SC300-10 | 10.5 | 43.7 | 100 | 30 | 24 | 43.5 |
| SC300-12 | 13 |
| SC300-14 | 15 |
| SC300-16 | 17 |
| SC300-20 | 21 |
| SC400-10 | 10.5 | 49.5 | 110 | 34 | 27 | 46 |
| SC400-12 | 13 |
| SC400-14 | 15 |
| SC400-16 | 17 |
| SC400-20 | 21 |
| SC500-10 | 10.5 | 55 | 123 | 38 | 30 | 50 |
| SC500-12 | 13 |
| SC500-14 | 15 |
| SC500-16 | 17 |
| SC500-20 | 21 |
| SC630-10 | 10.5 | 65 | 135 | 45 | 35 | 56 |
| SC630-12 | 13 |
| SC630-14 | 15 |
| SC630-16 | 17 |
| SC630-20 | 21 |
| SC800-20 | 21 | 72 | 170 | 50 | 39 | 60 |
| SC1000-22 | 23 | 81 | 200 | 56 | 44 | 87 |
Service
- We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
- We can supply you all these electric components toghther, saving your time serching

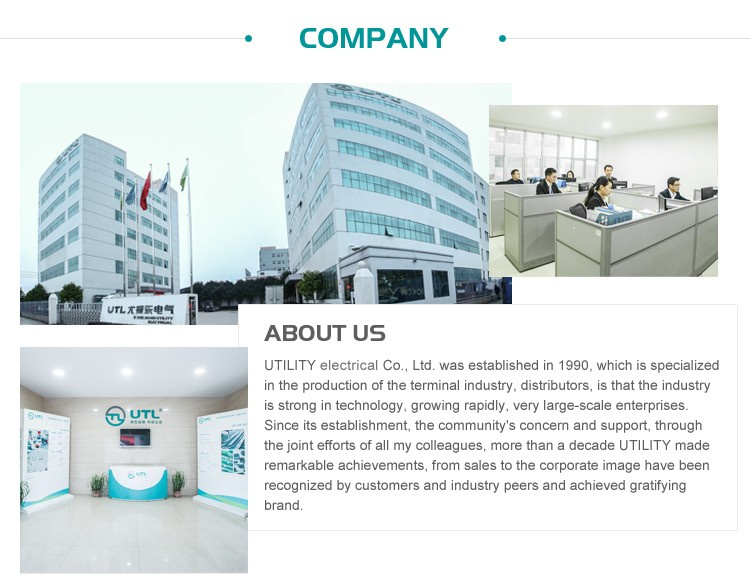

Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

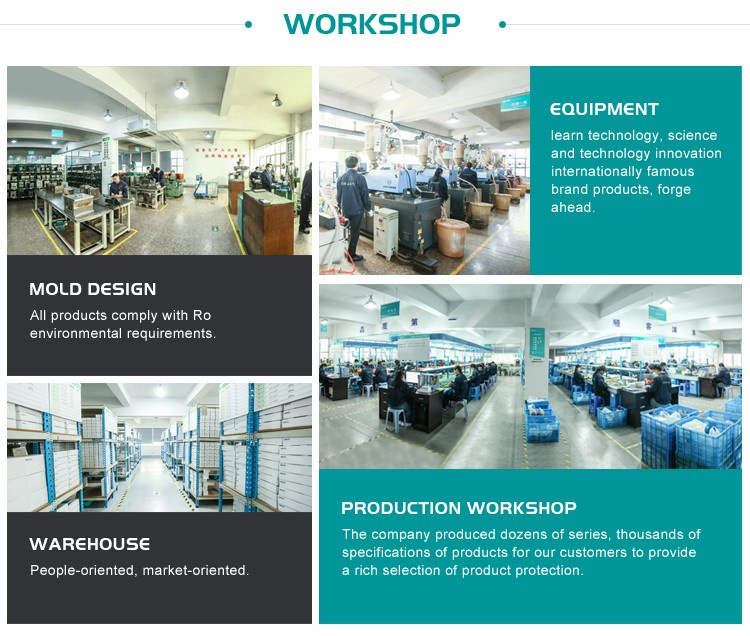

Work Shop
