Utl Slim DIN Rail-Mounted Terminal Block for 2.5mm2 Wires

Utl Slim DIN Rail-Mounted Terminal Block for 2.5mm2 Wires
Price: US $ 0.19-0.29/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JUT12-2.5
Type: Socket Terminals
Material: Copper
Application: DIN Rail Mounted
Certification: Ce
Brand: Utl

Product Description


UTL- JUT12 Series Super Slim DIN rail-mounted Terminal Block
-
JUT12-2.5


Product Description:
JUT12 series was designed for the requirement on slim size(thickness) for smaller size room, but still in same quality and performance as 2.5mm2 wire terminal blocks'.

This series contains normal single-pole terminal block and testing version with switch knife, which can find out obstacle fast in the process of wire impair and measurement.

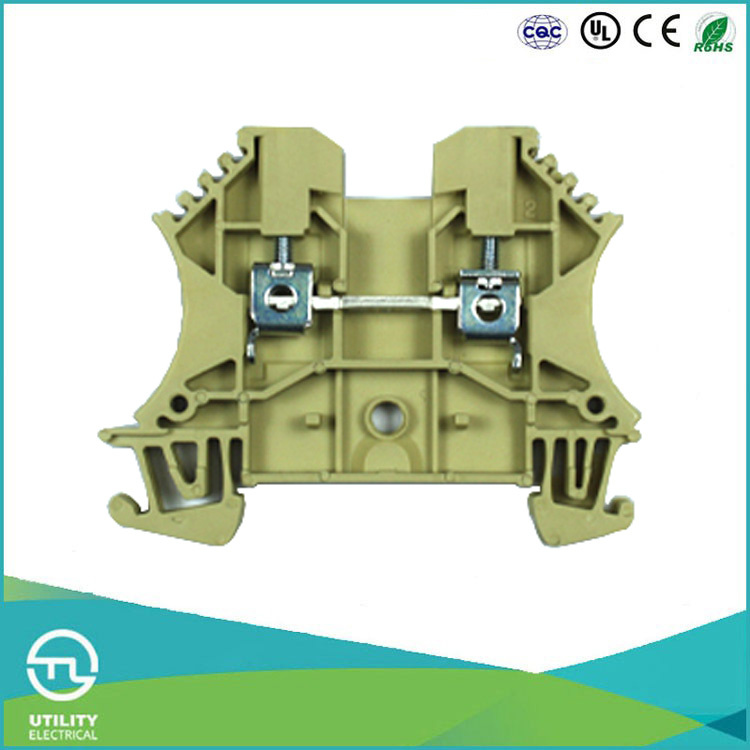

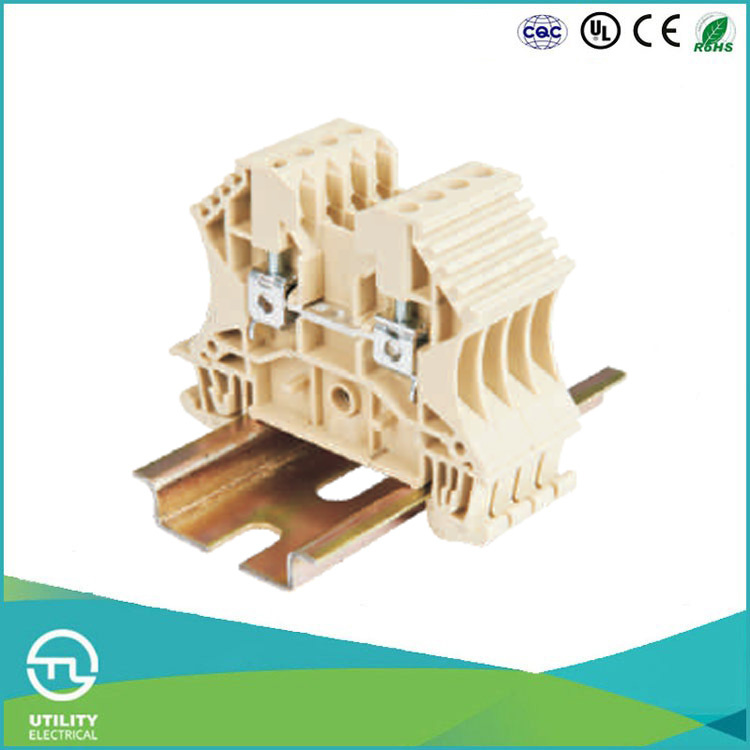

Product Photos:


Parameters:
Material
HousingPA66(Nylon), UL94 V-0
ConductorCopper Tin plated
BlockSteel Zinc plated
ScrewSteel Zinc plated

Electrical
Voltage ratedIEC 800V
Current ratedIEC 24A
Contact resistance20mΩ max
Insulation resistanceDC1000V, 1000MΩ Min
Withstanding VoltageAC2500V, 1 Minute

Mechanical
Connection capacity0.2~2.5mm2/ AWG24-14
Stripping length9-10mm
Clamping wayScrew clamping
Tightening Torgue0.6Nm max
IP rateIP40 (indoor using only)
Operating temperature-40ºC to +105ºC
InstallationDIN rail-mounted(NS35/7.5)

CertificationUL,CUL,CE, CQC



Trading Condition:
1. Low MOQ( please inquiry for more details)
2. Quick lead time ( 3-15 working days)
3. 1 Year Warranty
4. Payment: T/T, W/U, PayPal
