Utility Electrical Co., Ltd. >> Utl Terminal Block 400V 57A

Utl Terminal Block 400V 57A

Utl Terminal Block 400V 57A
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT1-6S
AWG: 20-6
IEC: 60947-7-1
Rigid Cable: 0.5-16
Soft Cable: 0.5-6
Voltage: 400V
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

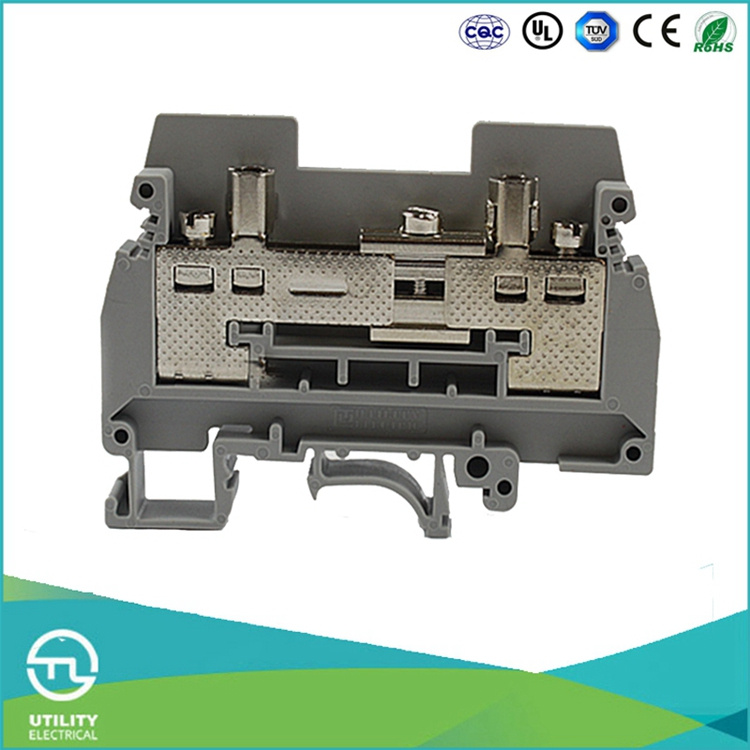

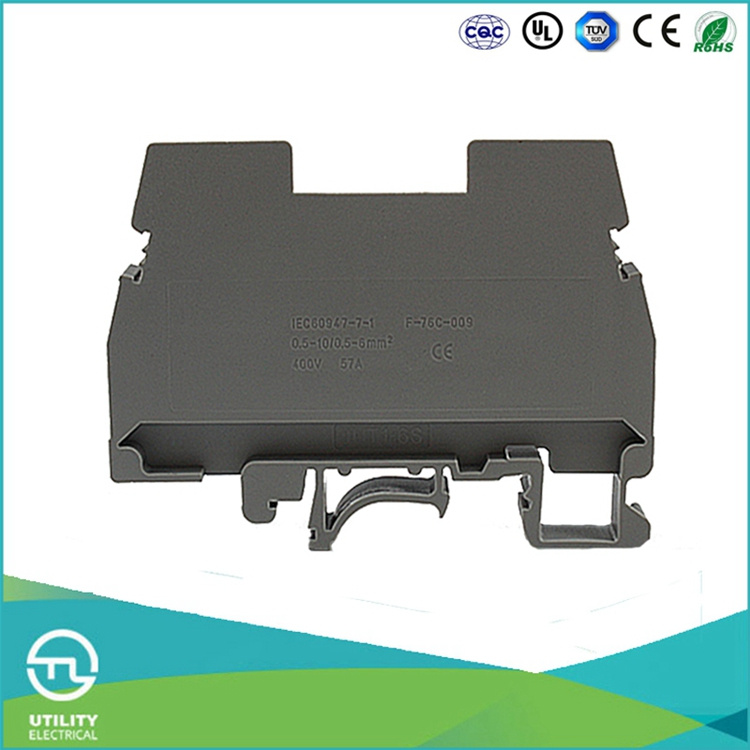

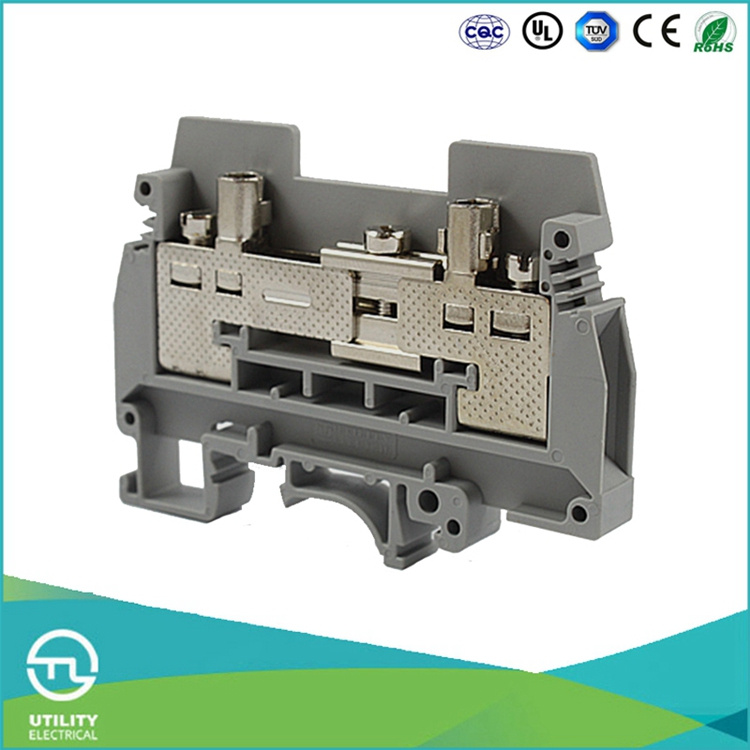

UTL  High Demand Products Feed Through Small Volume Din Rail Terminal Block 400V 57A

Model NoJUT1-6S
Item name JUT1 Screw Series
ColorGrey as photo,or OEM Color
SizeTH:8.12 W:72 H:51.5 H:56.5
Conductor Size20-8 AWG
Meet standardIEC60947-7-1
Payment term

A.Below US$300,western,paypal accepted

B.Above US$3000,bank account

CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request

Design ability

We can supply sample,OEM&ODM is welcome


Features:

JUT1 test-type wiring terminal: the movable medal component used as switch could stand maximum work current through terminal wire-pressing frame.When in switch-over,operator should use screwdriver to whirl screw loosely and move slipping-lump,then the switch would be seen clearly

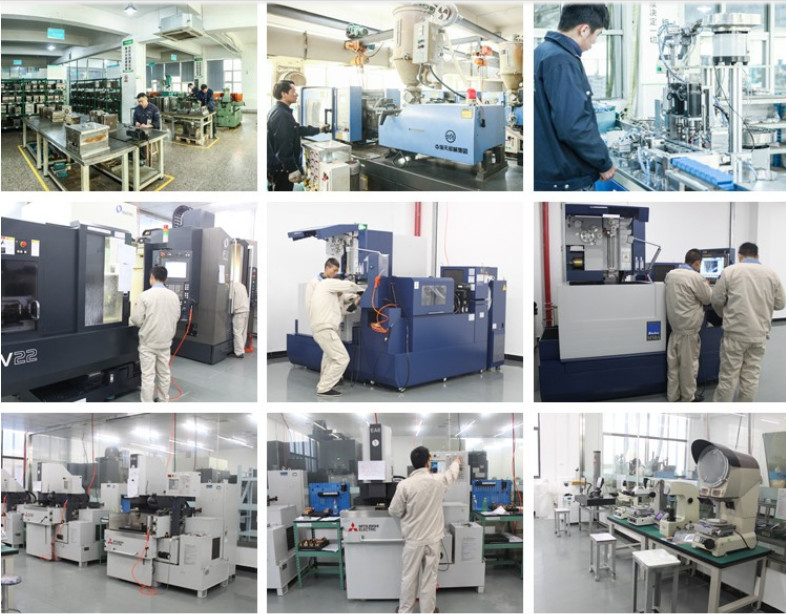

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
