| Prod Model: |
EN type cnnector |
| Max Voltage: |
Imax=300V |
| Shape Material: |
Red Copper |
| Colour: |
Bare Looking |
| Size: |
as Below |
| Application: |
Transmission of Electrical Signals |
| Type: |
Naked Terminal En Type |
| Material: |
Red Copper |
| Certification: |
TUV Ce CQC |
| Brand: |
Utl |
Product Description

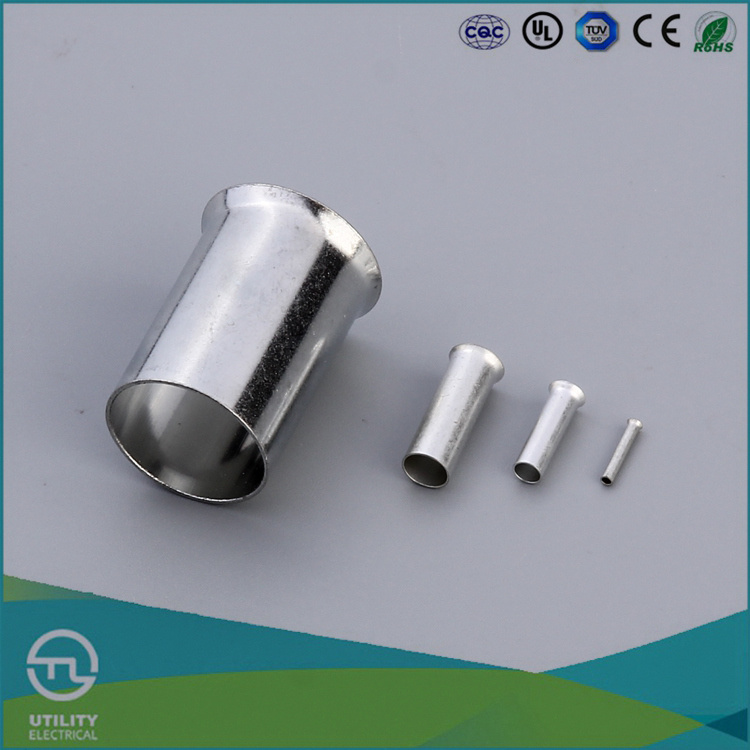

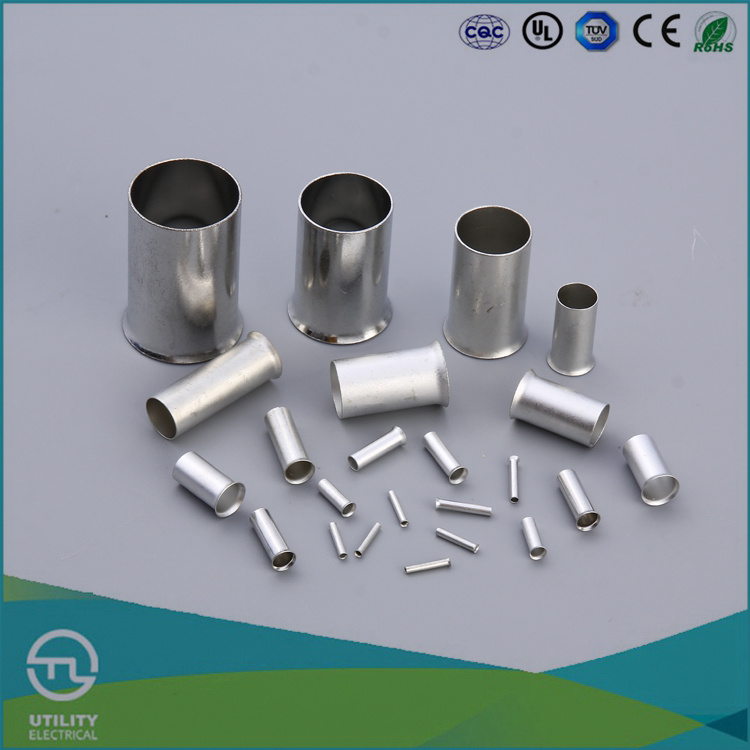

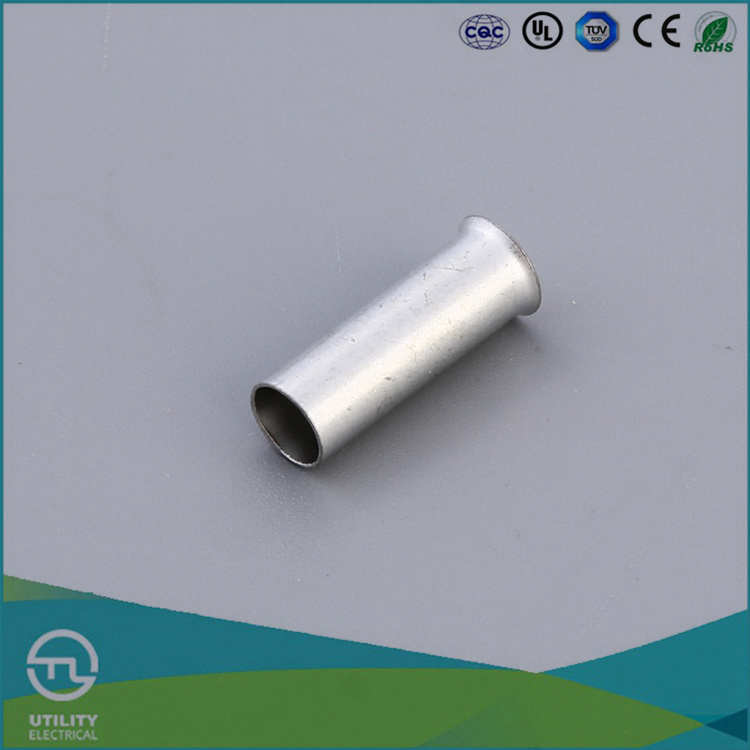

UTL Tube Naked Terminal EN type all red copper connector bare terminalCable end sleeve/ferrule is also known and copper nose which is terminal by crimping on cable/wire/ electrical equipment without thermal treatment.It is a kind of accessories for electrical connections.UTL supplies a wide range of cable end sleeves to satisfy different demand with premium quality.There must be one meets your criteria
- Various shaped of end, to adapt to all kinds of connecting conditions
- Made of premium copper and material for longer lifespan and better performance
- Custom product canbe made upon request
- Selected high quality copper and Environmental protection plastic process of stretching
- Using one-step injection molding technology, Instead of crimping process
- One integrated mass,easy entry wires,More strong, More convenient, More reliable
Parameter | Max voltage:Ui=300V material:purple copper |
| Item No | Dimension(mm) | Cable size(mm2) |
| L | Dφ | Cφ | W | A.W.G | mm2 |
| EN 0506 | 6 | 1.3 | 1 | 1.7 | # 22 | 0.5 |
| EN 0508 | 8 |
| EN 0510 | 10 |
| EN 0512 | 12 |
| EN 7506 | 6 | 1.5 | 1.2 | 1.9 | # 20 | 0.75 |
| EN 7508 | 8 |
| EN 7510 | 10 |
| EN 7512 | 12 |
| EN 1006 | 6 | 1.7 | 1.4 | 2.2 | # 18 | 1 |
| EN 1008 | 8 |
| EN 1010 | 10 |
| EN 1012 | 12 |
| EN 1507 | 7 | 2 | 1.7 | 2.5 | # 16 | 1.5 |
| EN 1508 | 8 |
| EN 1510 | 10 |
| EN 1512 | 12 |
| EN 1518 | 18 |
| EN 2507 | 7 | 2.6 | 2.2 | 3.3 | # 14 | 2.5 |
| EN 2508 | 8 |
| EN 2510 | 10 |
| EN 2512 | 12 |
| EN 2518 | 18 |
| EN 4009 | 9 | 3.2 | 2.8 | 3.9 | # 12 | 4 |
| EN 4012 | 12 |
| EN 4018 | 18 |
| EN 6010 | 10 | 3.9 | 3.5 | 4.8 | # 10 | 6 |
| EN 6012 | 12 |
| EN 6015 | 15 |
| EN 6018 | 18 |
| EN 10-12 | 12 | 4.9 | 4.5 | 5.8 | # 7 | 10 |
| EN 10-15 | 15 |
| EN 10-18 | 18 |
| EN 16-12 | 12 | 6.2 | 5.8 | 7.2 | # 5 | 16 |
| EN 16-15 | 15 |
| EN 16-18 | 18 |
| EN 25-16 | 16 | 7.9 | 7.5 | 9.1 | # 4 | 25 |
| EN 25-22 | 22 |
| EN 35-16 | 16 | 8.7 | 8.3 | 10.2 | # 2 | 35 |
| EN 35-25 | 25 |
| EN 50-20 | 20 | 10.9 | 10.3 | 12.4 | # 1 | 50 |
| EN 50-25 | 25 |
Service
- We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
- We can supply you all these electric components toghther, saving your time serching

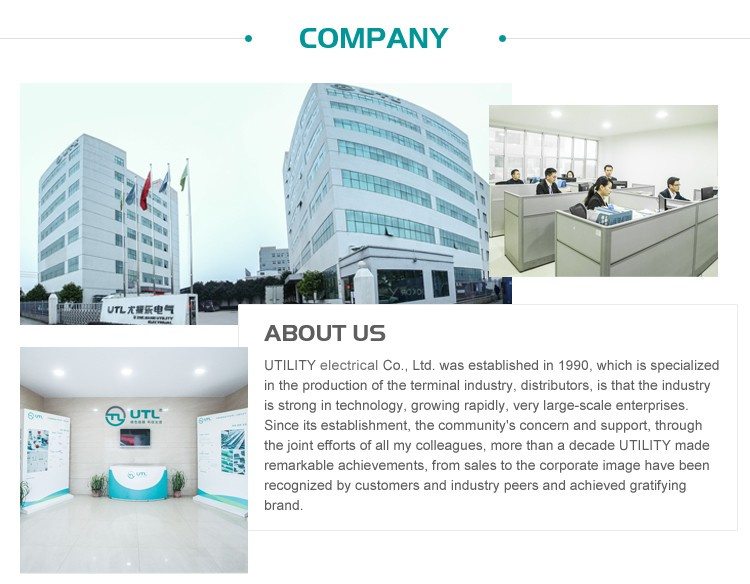

Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

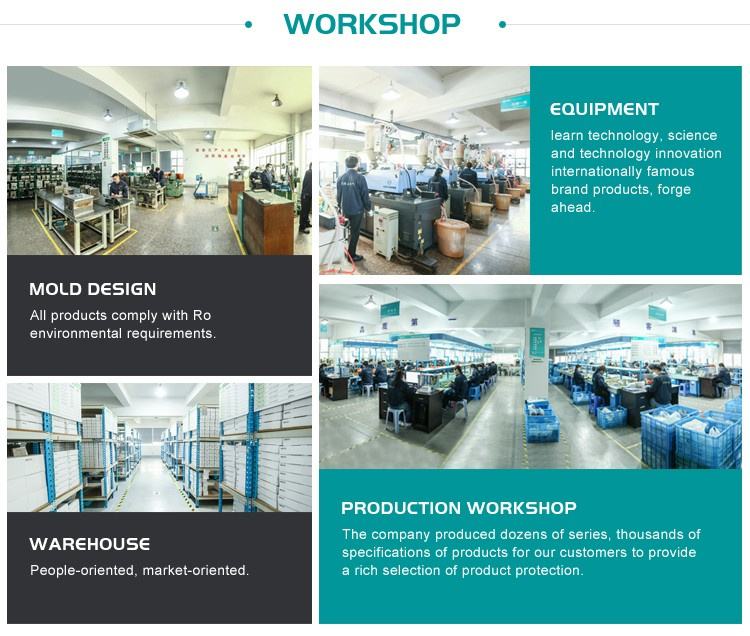

Work Shop
