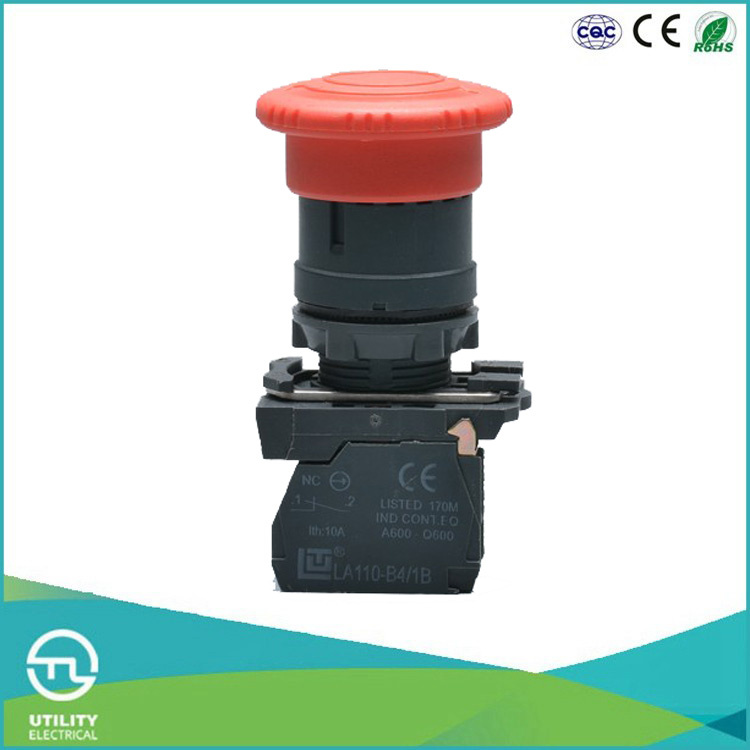

Utl Turn-to-Release Emergency Mushroom Push Button Stopping Switch

Utl Turn-to-Release Emergency Mushroom Push Button Stopping Switch
Price: US $ 0.87-0.99/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: LA110-B5-AS542
Type: Normal Open
Usage: Check Button
Kind: Single-pole on-off Switch
Brand: Utl

Product Description

UTL- B5 series Push-button Switches
LA110-B5-AS542-XXXX

Turn-to-release Emergency Stopping Snap-action Push button, Self-reset, 1xNC/ 1XNO/ without light

Product Description:
Metal push-button switches use anti-drunkeness operation head, it can't be teared head down from front.

All the contacts have both functions of alternation circuit and self-cleanliness. It can keep stability in low-voltage and small current 15V, 5mA. NO and NC contact groups are independant and can be combinated for application.

Connecting erminas are very safe. Metal operation push button and its bases are strong due to the allumen materials.

Parameters:

Ui Rated insylation voltageAC400V 50Hz
Ith Conventional heating current10A
Withstand Voltage2500VAC, 1 minute
Contact resistance≤50mΩ (initial value)
Mechanical Life1 million times for flat type
Electrical Life0.5 million times for flat type
IP rateIP40-65
Rated Voltage380V/ 220V/ 110V/ 48V/ 24V
Rated CurrentAC-15  2.5  4.5  6  8
DC-13       0.6  1.3 2.5
Working Temperature-25ºC to +70ºC
Drilling or cut-out for fixingΦ22mm(0.866in)
Contact1xNC, 1xNO
Class of pollutionlevel 3
Class of installationII
Color of buttonRed
Working waySelf-reset(self-returning/ instananeous)

Utility Electrical (UTL) is a professional manufacturer with 30-year experience in provide electrical products in premium quality at affordable price.

We supply various type/ function push-button/ turn-button switches. For more info or quote, please feel free to contact me!

Thank you and looking forward to hearing from you soon,

with Kind Regards,

Dennis Lee

International Sales & Consultant

Utility Electrical Co., Ltd
www.utl-de.com
www.china-utl.com
