UTP Cat5e LAN Cable Network Cable

Name: UTP Cat5e LAN Cable Network Cable
Brand: all-electronics-online.com
SKU: 760795115
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 18.8-68.42/Box
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Network Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Gray, Black, Yellow, Brown
Insulation:	PE(HDPE)
Jacket:	PVC(Lszh)
Nominal Outer Diameter:	5.2mm
Operating Temperature Installation:	: 0~50/Operation: -30~+75
Brand Name:	OEM
Number Of Conductors:	8
Usage:	Computer
Type:	Wired
Support Network:	3G
Information Content:	Data
Certification:	ISO
Condition:	New

Product Description

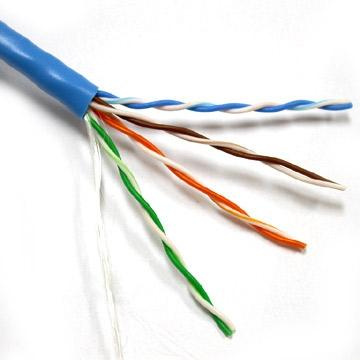

UTP Cat5e LAN Cable Network Cable

Product Description
Network Cable/LAN Cable FTP Cat 5e with High Performance

Configuration:

1. Conductor: 0.51±0.01mm(24AWG) Bare copper
2. Insulation: 0.97±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Shield: Al/Pet Foil
5. Drain: 0.4mm TC
4. Sheath: 6.2±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile Strength	Min 1.68kg/mm²

Electrical Properties:

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%

Technical Performance:

	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4

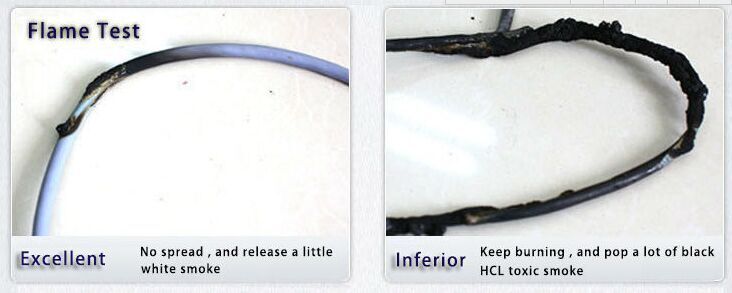

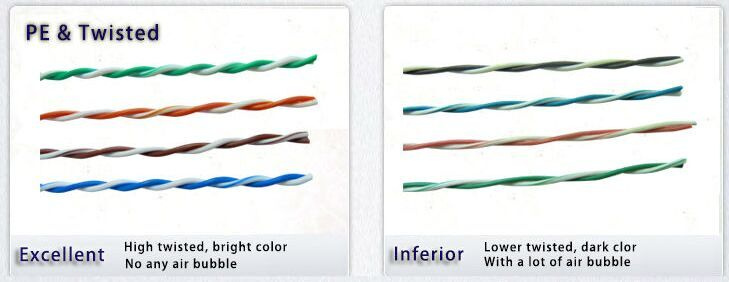

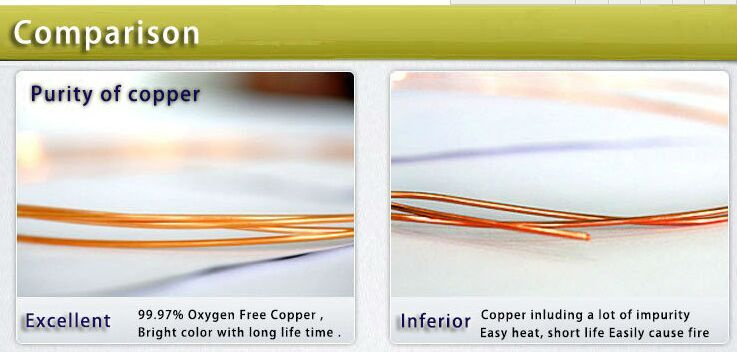

Comparison:

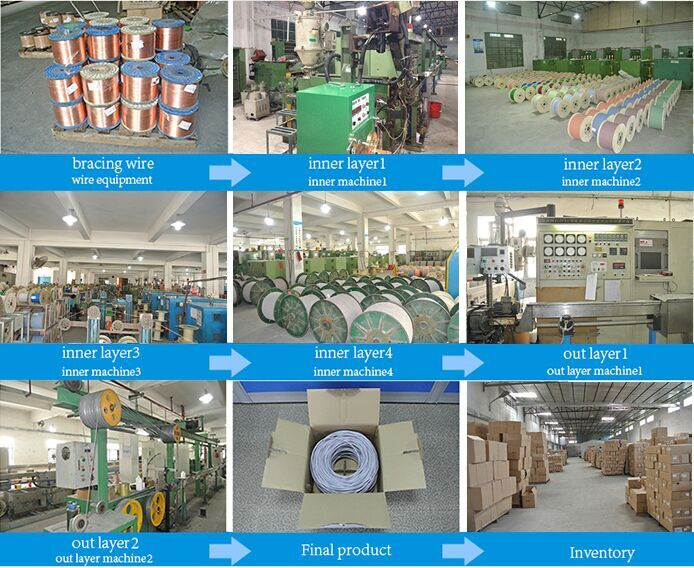

Production line:

Why choose us?

1. 16 years manufacturer in China, so we have rich production experience on the cables;

2. OEM/ODM is available, your own brand can be printed in both cables and boxes;

3. We have special quality control department to ensure our good quality;

4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard;

5. Short delivery time, we can finish a 20ft container within 15 days.

Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,

Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.

With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.

Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.

The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
