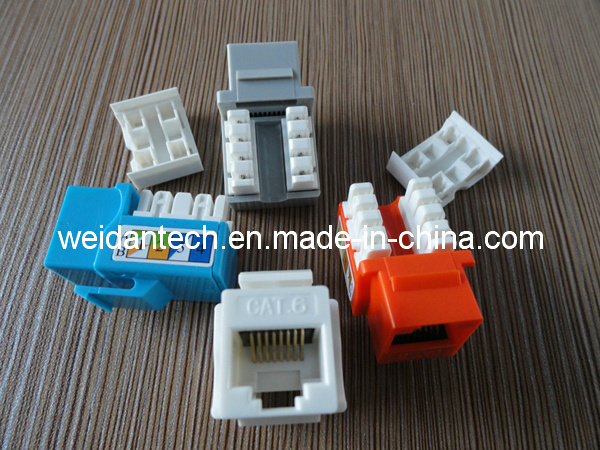

UTP CAT6 Keystone Jack with Dust Cover (WD6B-009)

UTP CAT6 Keystone Jack with Dust Cover (WD6B-009)
Price: US $ 0.45/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: WD6B-009
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IDC: Krone; 110, Dual
Standard Compliant: ISO/IEC 11801, ANSI/Tia/Eia-568b
Tester: Fluke Dtx 1800
Usage: Server
Type: Wired
Support Network: Ethernet
Information Content: Data
Certification: CE
Condition: New

Product Description

CAT6 RJ45 UTP Moulder Jack 180 degree w/ IDC Dust Cover

Application:
1. Horizontal Distribution & backbone cabling
2. Patch panel & face plate

. Material
-Housing: High Impact Flame Retardant Plastic ( Polycarbonate)
-Spring Wire: Phosphor bronze with 6u gold-plated
-IDC Plastic: Polycarbonate( PC)
-IDC Contact: Phosphor Bronze with 100u nickle plated

Technical Detail:
Electrical/Mechanical Characteristics:
Curent Rating1.5Amps
Insulation Resistance500 Mega ohm
DC Resustabce0.1 ohm Max
insertion Life>=750 Mating Cycles
Plug Retention Force89N
Temperature:-60~70 degree
IDC quipped cable22-26 WAG Solid cable
Wire schemeT568A/B




HousingHigh impact pC
ShieldingZinc Alloy
Spring wirephosphor Bronze With Gold plated 6U-50U
IDC ContactPhosphor Bronze
IDC Holderhigh Impact PC
PCBFiber Glass
Cable TieNylon
Install ManualA5 Paper
