UTP/FTP/SFTP Cat 5e/6 Networking Patch Leads

Name: UTP/FTP/SFTP Cat 5e/6 Networking Patch Leads
Brand: all-electronics-online.com
SKU: 609305904
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SH-H7008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Category:	Cat3/Cat5e/CAT6/CAT6A
Number Of Conductor:	8p8c
Conductor:	Oxygen Free Copper or CCA
Connector Shell:	PVC Environmental Material
Insulation:	HDPE
Gauge:	30AWG 28AWG 26AWG 24AWG
UL Standard:	Awm20276
Flame Rating:	VW-1
Length:	0.75m, 1m,2m, 3m,5m, 7m, 8m, 10m, 15m, 20m, 30m
Warranty:	5 Years
Application:	Network
Material:	Copper
Pin:	8Pin
Feature:	Explosion-proof
Shape:	Round
Computer Cable Type:	Data Line
Printer Cable Type:	USB
Interface Type:	RJ45
Power Cable Type:	8p8c
Color:	White, Black, Blue, Red or Customized.

Product Description

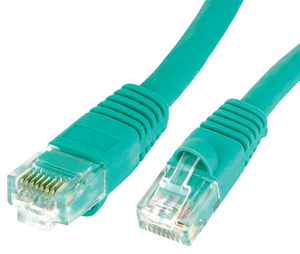

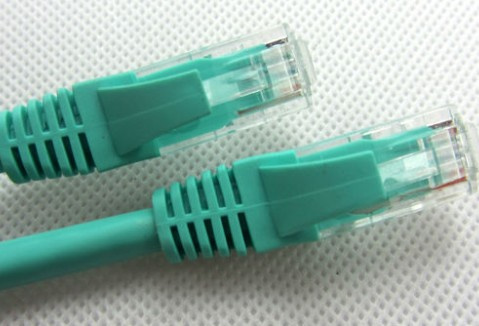

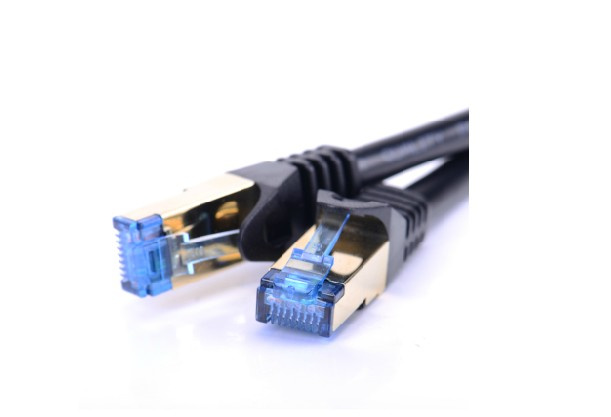

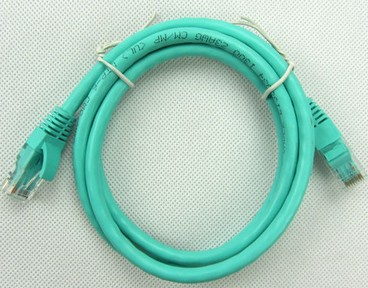

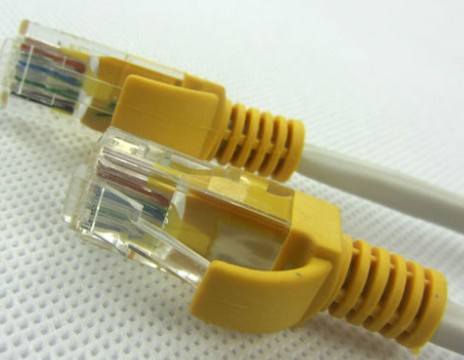

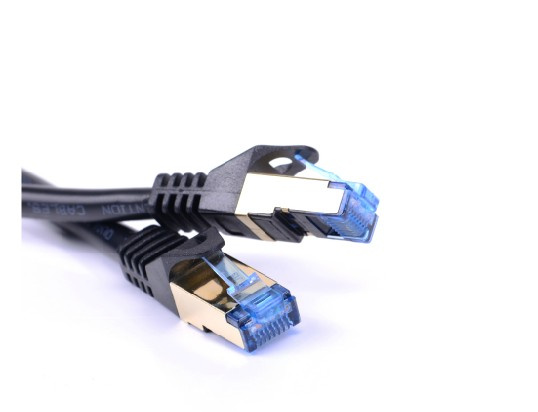

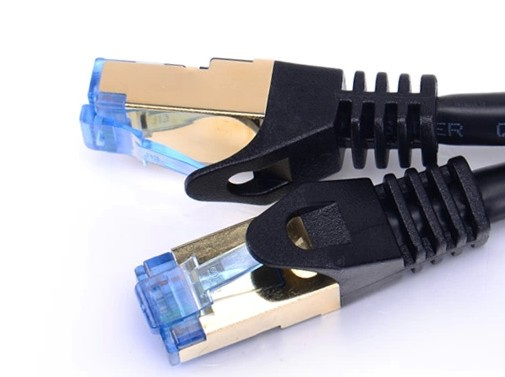

UTP/FTP/SFTP Cat 5e/6 Networking Patch Leads

Specification:
Cat 5e/6 Patch Cord Cable(Mold Type H)

Connector: RJ45, Unshield
Cable Spec: Cat 5e/6 Calbe
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B

Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Frequency Mhz	Impedance Ohm	RL dB	Attenuation dB/100M	Next dB/100M	ELFEXT dB/100M	PS NEXT dB/100M	PS Elfext dB/100M
1	100±15	20	2.0	65.3	63.8	62.3	60.8
4	100±15	23	4.1	56.3	51.7	53.3	48.7
8	100±15	25	5.8	51.8	45.7	53.3	42.7
10	100±15	25	6.5	50.3	43.8	47.3	40.8
16	100±15	25	8.2	47.3	39.7	44.2	36.7
20	100±15	25	9.3	48.5	37.7	42.8	34.7
25	100±15	24	10.4	44.3	35.8	41.3	32.8
31.25	100±15	24	11.6	42.9	33.9	39.9	30.9
62.5	100±15	22	17.0	38.4	27.8	35.4	24.8
100	100±15	20	22.0	35.3	23.8	32.3	20.8
155	100±18	19	28.1	33.0	20.0	29.0	17.0
200	100±22	19	32.4	31.0	18.0	28.0	15.0
310	100±22	18	41.8	28.0	14.0	25.0	11.0
350	100±22	17	44.9	27.0	13.0	24.0	10.0
