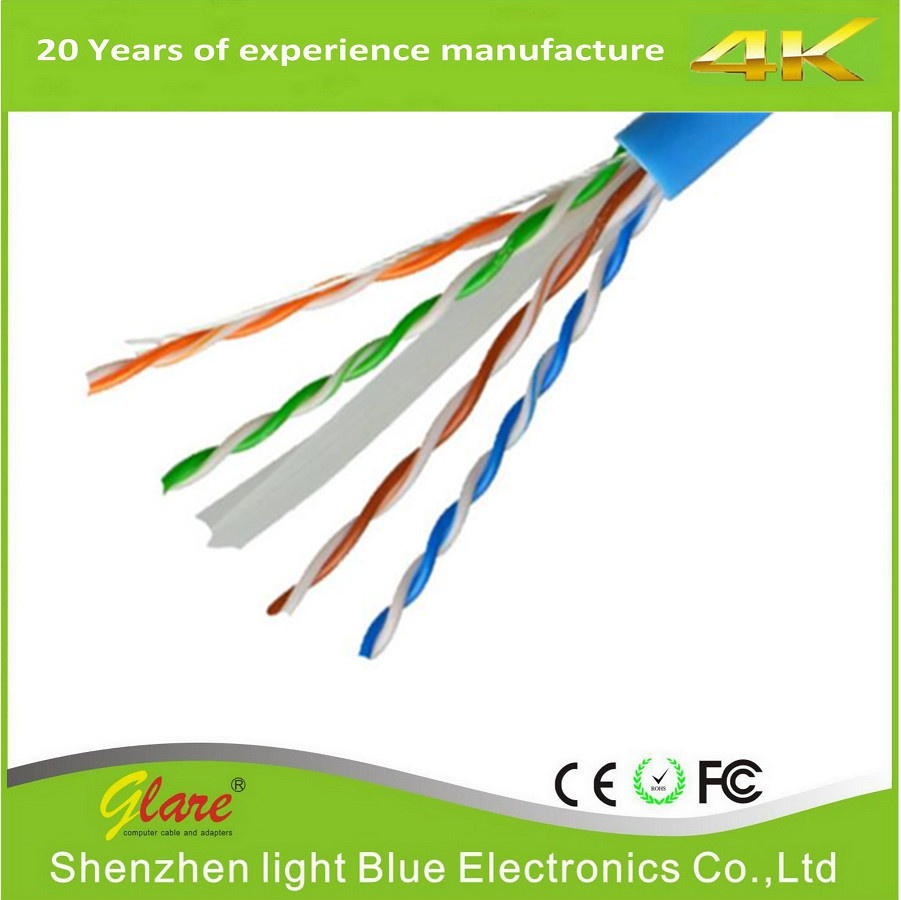

UTP/FTP/SFTP Single Jacket Indoor Cable

Prod Model:	cable
Cable Use For:	Computer
Cable Conductor:	28AWG Bare Copper
Cable Material:	PVC and Copper
Cable Length:	as Customer's Request
Cable Color:	Black ,Blue Color
Cable Warranty:	12 Months
Cable Packing:	Poly Bag,Blister ,Gift Box
Cable Certification:	Ce,RoHS
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	VDE
Model:	Lbcable
Brand:	Lbcable

Product Description

 UTP/FTP/SFTP Single Jacket Indoor Cable
Product&spec CAT5e FTP/STP cable Conductor Material BC/OFC/CCA OD 7*0.15mm, 26AWG Number 4 Pairs Insulation Material HDPE OD Φ1.05±0.05mm Jacket Material PVC Color Gray/White/Blue OD Φ5.0mm±0.1MM PERFORMANCE DC Resistance(Max.) 9.5Ω/100m DC Resistance Imbalance 2.5% Working Capacitance(Max.) 5.4nF/100m Insulation Resistance 10000 MΩ.km NVP 69% Operating temperature(ºC) -20ºC~+70ºC Marking on jacketSupport OEM&ODM
Cable Construction:

Item	Conductor AWG	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat5e UTP	24 (0.51mm)	4	Non	Non	5.4mm
Cat5e FTP	24 (0.51mm)	4	Aluminum Foil	Yes	6.0mm
Cat5e SFTP	24 (0.51mm)	4	Aluminum Foil + Alloy Braiding	Yes	6.5mm

Electrical Characteristics:
Property		Value	Units
DC Conductor Resistance Max.		9.38	Ω/100m
Resistance Unbalance Max.		2%
Mutual Capacitance Nom.	@1kHz	5.6	nF/100m
Capacitance Unbalance pair/ground Max.	@1kHz	160	pF/100m
Characteristic Impedance	0.772 -100 MHz	100+15	Ω
Maximum Delay Skew	1.0-100 MHz	45	ns/100m
Velocity of Propagation		68%	Speed of Light
Maximum Propagation Delay	10 MHz	545	ns/100m

Application:
Suitable for both voice and high speed data applications in Local Area Network	Compliances	AS/NZS 3080:2003 (Cat 5e)
		ISO/IEC 11801 Ed.2 (Cat 5e)
10 Base-T (IEEE 802.3)_		ANSI/TIA 568-C.2 (Cat 5e)
100 Base-T (IEEE 802.3)_		AS/CA S008:2010
4/16 Mbps Token Ring (IEEE 802.5)_		UL Verified (Cat 5e)
52/155 Mbps ATM_		IEC 60332-1
100 VG-AnyLan	Conductor	Plain Annealed Copper Wire (24 AWG)
100 Mbps TP-PMD (ANSI X3T9.5)_	Insulation	High Speed Data Grade Polyolefin
1000 Base-T (Gigabit Ethernet)_		Pair 1 - White/Blue & Blue
Broadband and baseband analogue video_		Pair 2 - White/Orange & Orange
Digital video_		Pair 3 - White/Green & Green
Environmental Performance		Pair 4 - White/Brown & Brown.
Installation Temperature -10°C to 40°C	Sheath	Flame Retardant PVC
Operating Temperature -20°C to 60°C		Cable printed with metre marking

Frequency:
MHz	dB/100m (max.)	dB (min.)	dB (min.)	dB/100m (min.)	dB/100m (min.)	dB (min.)
0.772	1.8	67	64	-	-	-
1	2.04	65.3	62.3	64	61	20
4	4.05	56.3	53.3	52	49	23
8	5.77	51.8	48.8	45.9	42.9	24.5
10	6.47	50.3	47.3	44	41	25
16	8.25	47.2	44.2	39.9	36.9	25
20	9.27	45.8	42.8	38	35	25
25	10.42	44.3	41.3	36	33	24.3
31.25	11.72	42.9	39.9	34.1	31.1	23.6
62.5	16.99	38.4	35.4	28.1	25.1	21.5
100	21.98	35.3	32.3	24	21	20.1

Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.

Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm

Adavantage:

With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen

Certification
CE,ROHS,FCC

After Service:

1. Best Quality and Best Service for any orders. No matter big or small orders

2. Warranty : 12 months

3. Please contact our After Service Dept,inform us what's the problem you met.

4. We provide resolve methods for you.

OEM Service:
1.customized Logo silk print / up sticker/mould

2.Sample Lead Time: Within 10days

3.Packing:Standard export packing
FAQ:
Q1. The MOQ Order ?
A1 :  Cat5e Cat6 Twisted Pair Cable MOQ is 100 rolls .
If you have different and special demands , please contact with our sales , they will provide the best solutions to you .

Q2. How to shipping ?  Is there cheap shipping cost to import to our country ?
A2 : The best choice is shipping By Sea . Because network cable is very heavy , it's too expensive by air .
By Sea : If you have freight forwarder , they can handle shipping for you .  If you don't have it , we can provide the cheapest shipping cost to you .
Or send our freight forwarder informaitons to you contact directly .

By Air :  You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent ,
you can contact with our sales to get the cheapest freight cost .
  100 pair cat6 utp lan cable   100 pair cat6 utp lan cable    100 pair cat6 utp lan cable
Q3. Can you offer me a free sample ?
A3 :  Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,
         which we will return it to you when you put the order.

Q4. Can you make OEM ?  What about packing box ?
A4 :  Definitely , our main business is make OEM order .
Cable Marking/Printing : It can be marking your brand or any printing that you want , except for international famous brand .
Pakcing Box : Normally , the packing is 1 roll in a coloful pull out box , and 2box in an outer brown carton .
Pull Out Box : If you want make your own brand pull out box , you must meet Box factory MOQ 800 pcs , or if not , it will need to pay box factory 164 USD
as opening mould charges .
Outer Carton : We will support you free to make your own brand carton .
If you have box designs , just send it to us . If not , we have professional designers to make becautiful custom-made box designs for you .

Q5. What about the after-sales sevice ?
A4 :  Our cable will provide free change for new if there is any quality problem in your order .

Q6. Payment term ?
A5 :  T/T 30% deposit ,70% against the copy of BL . For our familiar customer , we can support good credit payments
