UV Curing Ink Module 395nm 200W LED Diode

Name: UV Curing Ink Module 395nm 200W LED Diode
Brand: all-electronics-online.com
SKU: 826552795
Availability: InStock
Rating: 4.6 (145 reviews)

Price:	US $ 0.1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY25E9-COB-1010 200W
Emitting Area Size:	25X25mm
Light Intensity:	20W/Cm2
Electric Power:	200W

Product Description

UV Solutions Ink Curing Lamp 200W parameters:

Parameter	Value
Wavelength	385/395/405nm
Emitting Area Size	25mm x 25mm
Forward Current	5.5-7.0A
Forward Voltage	32-40V
Peak Irradiance	8-20W/CM2
Angle	60°
LED Junction Temperature	105ºC

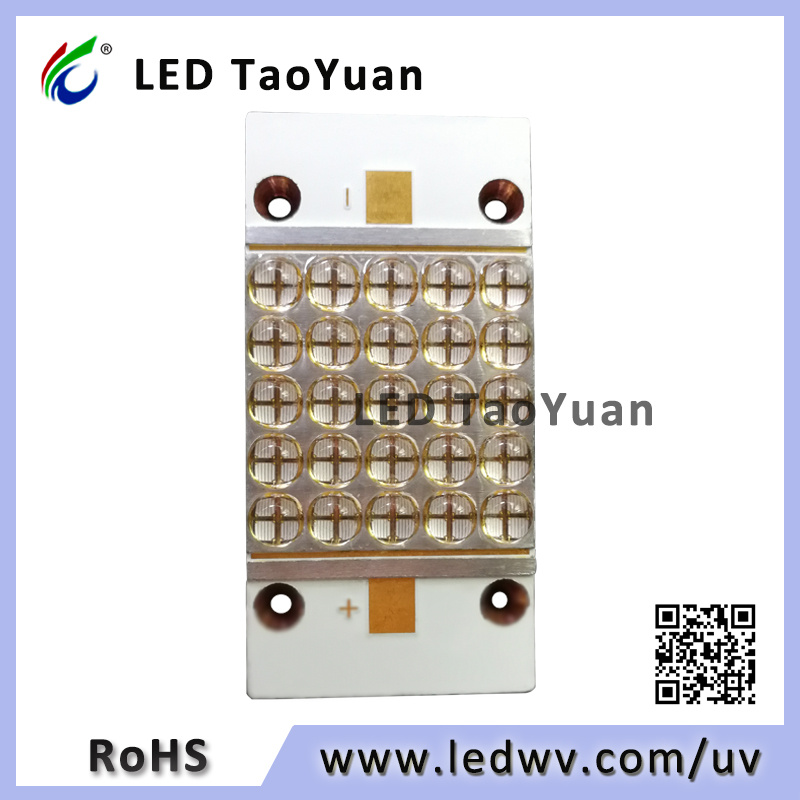

This product uses the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing and printing.

TAOYUAN ELECTRON (HK) LIMITED is specializing in the production and sales. Our main products have: High power UV LED, UV LED series (UV LED 3W, LED 10W, LED 30W, LED 50W, LED 100W, UV LED 200W). UV LED lamps, UV curing lamps, UV flashlights, UV Solutions. Collected advantages of exquisite technology and experienced talents, we are committed to further research and manufacture, to create new LED world.

The factory has passed the certification and operated strictly according to the requirements of authentication system, and our LED Products are characterized with low power consumption, low attenuation, high brightness, long life and so on.

TAOYUAN ELECTRON (HK) LIMITED pursues the principle of "Customer First, Customer Supreme". We have advantage of reasonable price, fast delivery, quality assurance, wide variety of goods. We sincerely hope to cooperate with the merchants in home and abroad and to create a better tomorrow.
