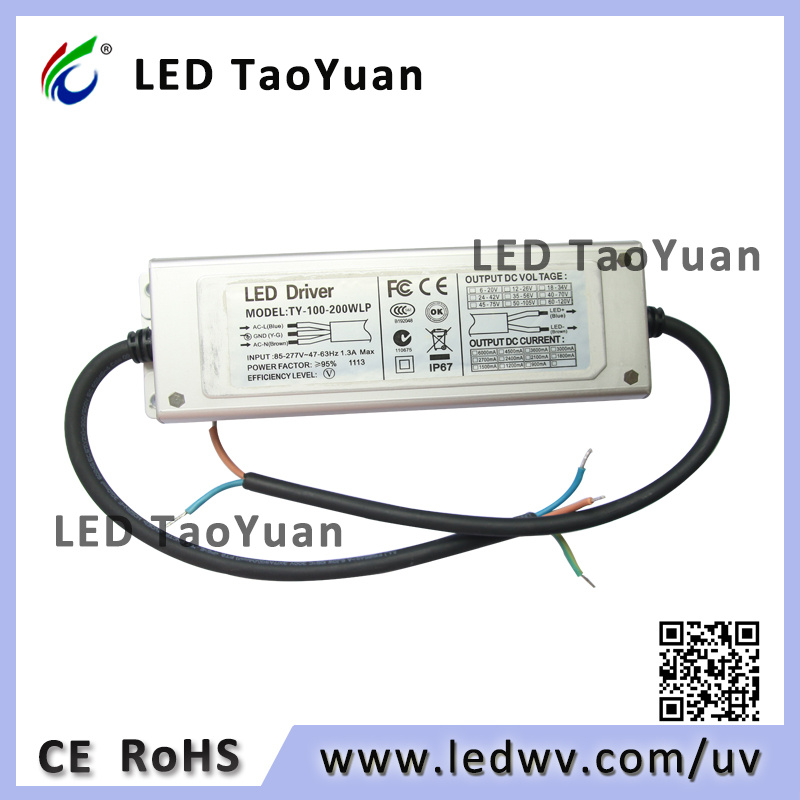

Name: UV LED Driver 100W High Power Driver
Brand: all-electronics-online.com
SKU: 829239295
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	US $ 0.1/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY-100WLP
AC:85-277V:	DC:60-70V
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Conventional Step-down Transformer
Power Supply Mode:	AC 110-230V
In-Out:	70V
Brand:	LED Taoyuan

Product Description

LED power supply 100w with the application of the design and focus, LED power supply according to the order given in the complete design examples, with a strong "real sex" and references.
LED power supply 100W Features: Product is suitable for single high-power LED 100W built-in LED power supply. Circuit with constant current, constant voltage, overload, short circuit protection circuit.
LED power supply 100W product is suitable for single 200W built-in LED drive circuit, such as the projection lamp, sportlight, street light and so on.

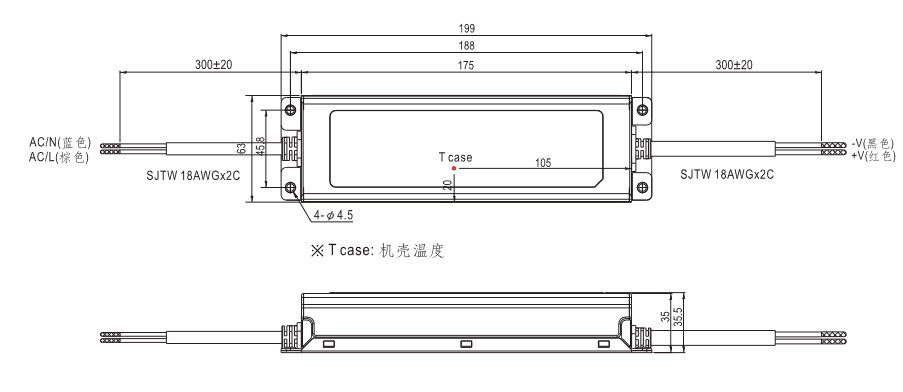

Size: L 199mm * W 63mm * High 36mm.
LED power supply 100W Product Parameter Table:

Power Specifications	Input voltage	Output Voltage	Output Current	Power Factor	Efficiency
1PCS X 100W	85-277VAC	60-70V DC	1400± 3%mA	> 95%	> 90%
