Uwb Precision Location System

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	GPS Tracker
Use:	Automotive
Screen Size:	4.8"

Product Description

UWB precision location system is used to locate indoor, outdoor, personnel and articles with a high precision. The used of advanced UWB technology ranging method based on TDOA, to achieve the positioning accuracy of 10cm. It can satisfy the prison management, production line management, security and safety, positioning scheduling, line navigation, etc. Applications.

UWB full name is Ultra Wide Band. It is a wireless carrier communication technology, using narrow non-sine wave pulse of nanosecond to transmit date, so the spectrums are very widely. The location accuracy of traditional location technology which based on signal strength and signal quality is usually unsatisfactory. UWB location technology fills the gaps in the field of high precision positing. It is applied to the location system with the advantage of low pour, strong anti-jamming ability, anti-multipath effect, accurate location. Ect. Wireless broadband location technology calculates tag location by measuring narrow pulse's arrival time or difference arrival time.

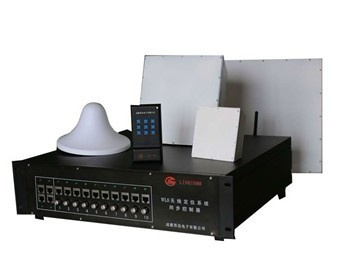

UWB precision location system consists of several location readers, control center, connection reader and control center of communication network, to support quick flexible networking; It can realize 2d or 3D high accuracy location and has a wide application field.

System Features:

Because of the advanced UWB transmitting and receiving equipment the superior location algorithm, the positioning could accuracy up to 10cm.

Precision location system have a strong ability of anti-Multipath effect and electromagnetic interference, stable operate and higher localization accuracy in the complex conditions.

The system realizes a large capacity and high throughput rate positioning at a high positing speed, and it can locate thousands of tags at the same time.

Location network set up fast and flexible, the flexible layout based on actual occasions can realize single zone or multi-regional location, the system automatically register tags recorded into the network, so it's easy to use.

Intelligent systems management software can realize system operation management, coordinates graphical display and movement path, operating logs, users of the system management and other functions.

Positioning tag is delicate and cabinet, easy to carry, low energy consumption, a replacement battery can be stable work for months.

Completely sealed positioning reader has a beautiful package and can be used for indoor or outdoor, long-term stability working in the harsh natural environment.
