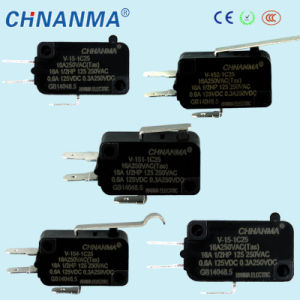

V-152-1c25 Straight Hinge Lever Mini Micro Switch

V-152-1c25 Straight Hinge Lever Mini Micro Switch
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: V-152-1C25
Pressing Type: Push-Button
Protection: Waterproof
Size: Small-Sized
Environment: ﹤250℃
Breaking Capacity: Micro-Current
Breaking Form: Single Type
Application: Domestic Electric Appliances
Brand: Chnanma

Product Description

1.Features
1)Virous of actuators,the operation position is adjustable.
2)Outer shell covered with intensive plastic,water-proof and oil-proof,the mechanical strenth is better than NM-17&13 series of micro switch,bear hitting.
Current 5A 250V,
Voltage10-55Hz,
MaterialBrass terminal screw, Silver tip.
Protection LevelIP54

2.Specification
Rated voltageNon-inductive loadInductive load Inrush current
Resistive loadInductive loadMoto load
N.CN.ON.CN.ON.CN.ON.CN.O
125 VAC1031.51052.5
250 VAC102.51.251031.5
480VAC31.50.752.51.50.75
8 VDC1031.5665
14 VDC1031.5665
30 VDC831.5652.5
125 VDC0.50.40.050.05
250 VDC0.250.20.030.03

Note:
1.Inductive load has a power factor of 0.4min(AC)and a time constant of 7 msec.Max.(DC)
2.Lamp load has an inrush current of 10 times the steady-state current,while moto load has an inrush current of 6 times the steady-state current.
Rating  10A 125/250VAC
Initial contact resistance 25mΩ max.
 25mΩ
Initial insulation resistance 100 mΩ min. (At 500V DC)
 100 mΩ ( 500V DC)
Dielectric strength Between non-consecutive terminals Between non-consecutive terminals 1,000Vrms , 50/60Hz for 1 min
   1,000Vrms , 50/60Hz 1
Between non-current carrying metal parts and each terminal 1,500Vrms, 50/60Hz for 1 min
1,500Vrms, 50/60Hz 1
Between ground and each terminal 1,500Vrms , 50/60Hz for 1 min
1,500Vrms , 50/60Hz 1

3.Operating Characteristics
ModelNM-7120
OF Max150g
RF Min40g
PT Max13.5mm
OT Min4.0mm
MD Max3.2mm
EP Max35mm
OP mm25±1mm
Weight(g)54





Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

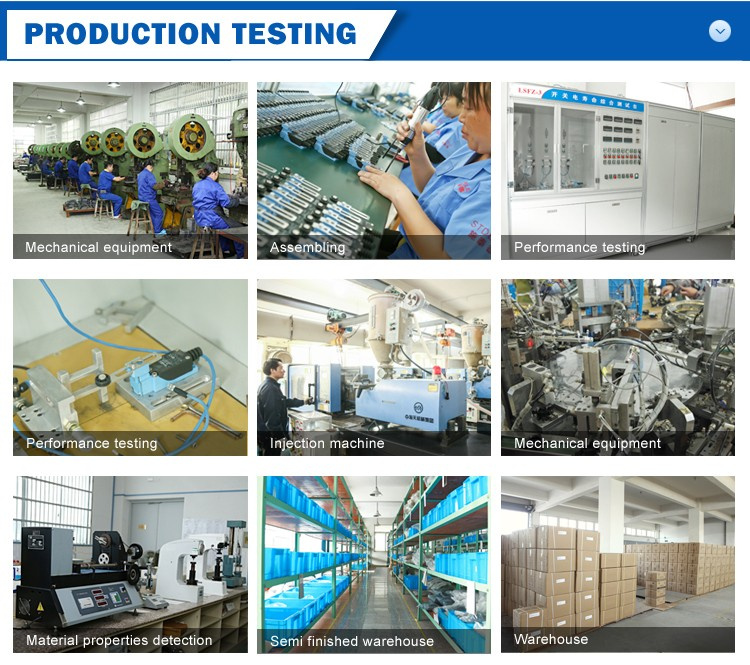

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
