| The Theory: |
Safety Switch for Patio Heater |
| Rated Current: |
16A |
| Rated Voltage: |
125VAC/250VAC |
| Operating Force: |
1.5 N--3 N |
| MOQ: |
1000PCS |
| Carton Size: |
370mm*315mm*360mm |
| Delivery Mode: |
FedEx/DHL/UPS/TNT |
| Pressing Type: |
Lever Roller |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Brand: |
Universal |
Product Description

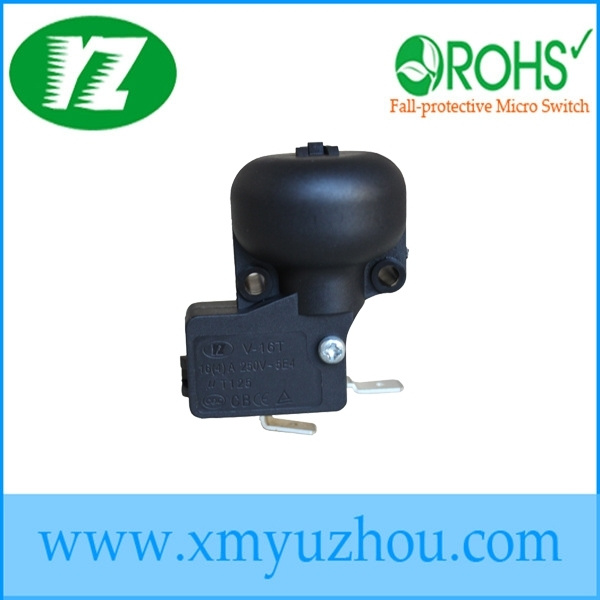

Safety Switch for Patio Heater Specification:
Model: V-16TA
1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Characteristics and usage
*Nice appearance, tight configuration,
*Quick action and high sensitivity
*Long life and high rdliability
*Apply to Electric warmer, Electrical fan home appliances, electron equipment
Working principle:
*As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch so that micro switch can work with load.
*When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and micro switch can't work without load.
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606008788
Tel: 86-0592-5782488
Fax: 86-0592-5664223
| Item | Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
100 MΩ (500VDC) |
Contact resistance |
<=30mΩ(Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=5000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature |
125°C 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.5.95g(No lever) |
