| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Waterproof |
| Power Range: |
220V(0.4~3.7kw)380V(0.75~11kw) |
| Output Frequency Range: |
0~400Hz |
| Protection: |
Overload |
| Warranty: |
12 Months |
| Pid Control: |
Built-in Pid Control |
| Protective Structure: |
IP65 |
| Color: |
OEM |
| Cooling Made: |
Forced Air Cooling |
| Overload: |
150%,60second(Constant Torque) |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |

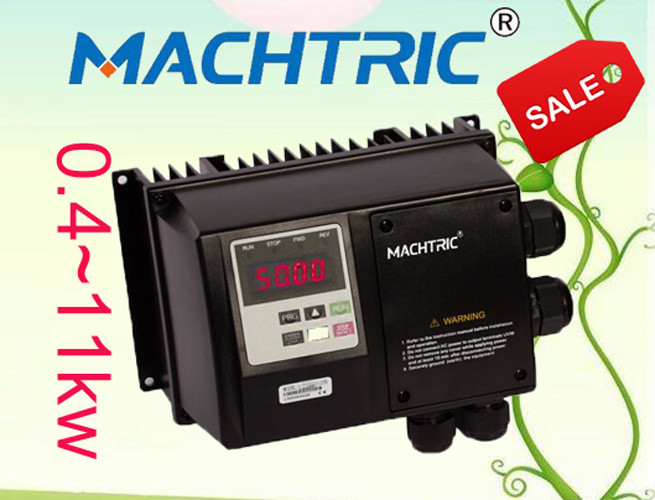

Product Description
1. Waterproof inverter.
2. Protective structure: IP65
3. Control mode:V/F control
4. Power range: 1 phase 220V 0.4~3.7kw 3 phase 380V 0.75~11kw
5. Widely used in industries of plastic, textile, powder,water pumps and so on.
Product specification:
| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| | Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| | Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| | Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| | Output Frequency Accuracy | 0.01 Hz. |
| | V/F Control | Setting V/F curve to satisfy various load requirements |
| | Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| | Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| | Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
| | | 8 multifunitinal output terminals, 1 inverter can control 4 ciircular variable frequency pumps |
| | Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
| Other functions | PID Control | Built-in PID control |
| | RS485 | Standard RS485 communication function (MODBUS) |
| | Frequency Setting | Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| | Multi-speed | Eight multifunction input terminals,15 section speed can be set |
| | Automatic voltage regulation | Automatic voltage regulation function can be selected |
| | Counter | Built-in 2 group of counters |
| | Overload | 120%,60second (variable torque) |
| | Over Voltage | Over voltage protection can be set |
| | Under Voltage | Under voltage protection can be set |
| | Other Protections | Overheat,output shortcircuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| | Ambient Humidity | Max. 95% (non-condensing) |
| | Altitude | Lower than 1000. |
| | Vibration | Max. 0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
| | Protective Structure | IP 65 |
Package:export standard package.
Delivery time: 7 weekdays after get the payment.
Delivery mode: Ocean shipping, Air transport, Express delivery/( Choose by the customer).
Payment terms: L/C/ T/T / Western Union / MoneyGram.
