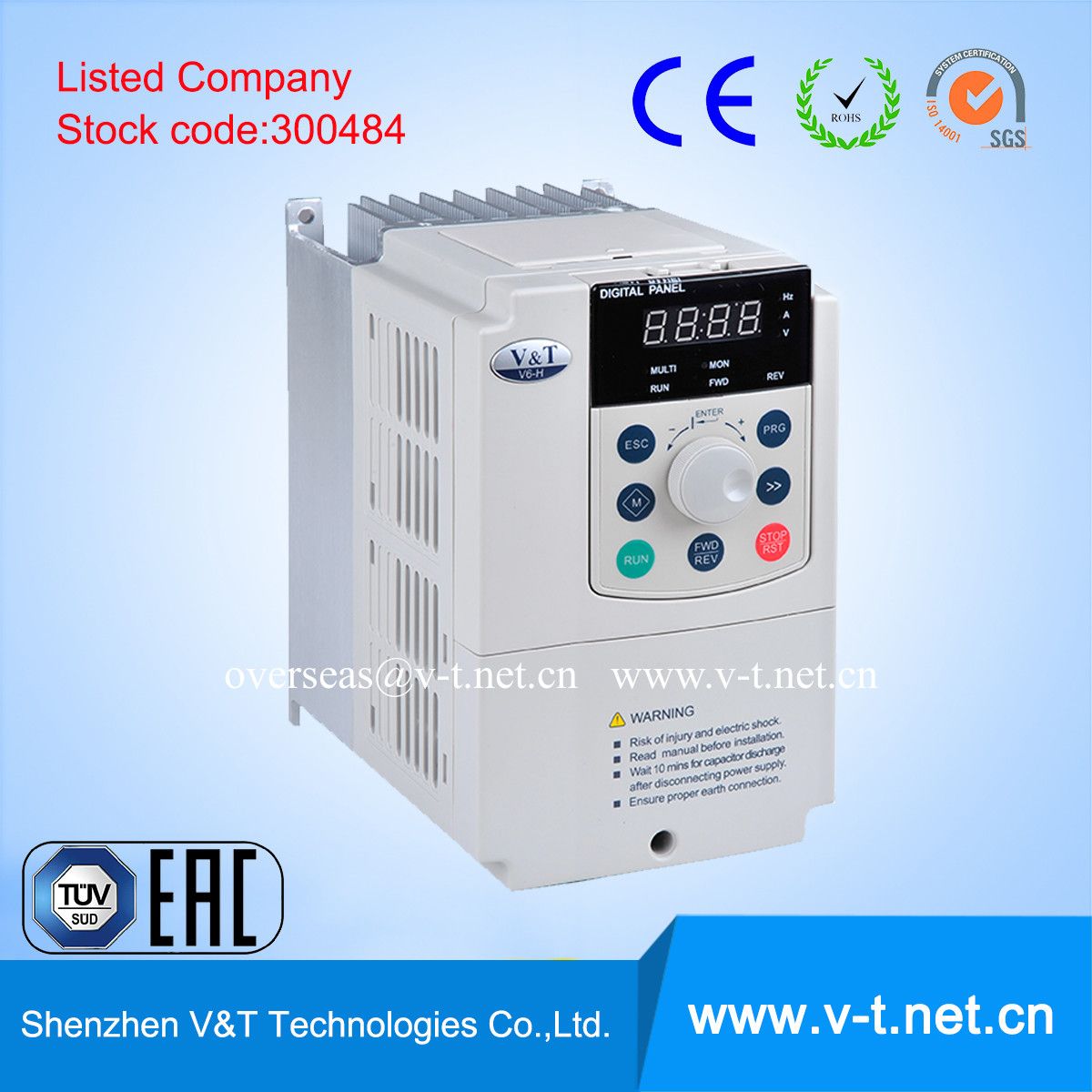

V&T E5-H Universal Use Vector Control VFD/VSD/AC Drive 0.75kw - HD
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
V&T E5-H |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
V&T |
Product Description
RS-P solar photovoltaic pump controllerOperating system

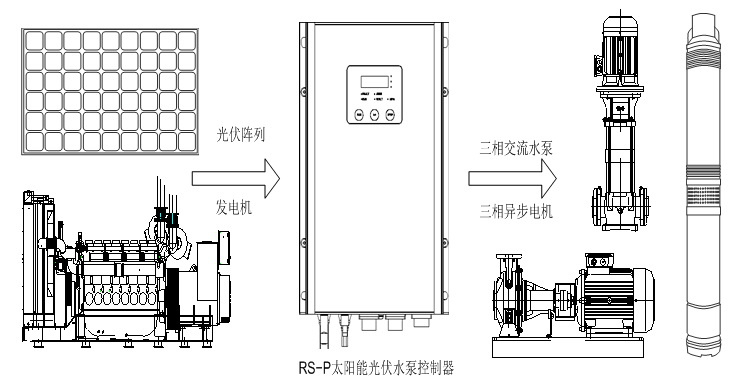

The system mainly has 3 parts: power supply, controller and load. The power supply is PV (Photovoltaic) array, generator or grid. The controller is mainly the RS−P Solar Water Pump Controller. The load is 3-phase asynchronous motor or pump. The system does not need battery for storing energy, which not only cuts the cost, but also protects the environment. RS−P PV Pump Controller can directly drive various kinds of 3-phase asynchronous motor, with high power integration and less components, which improves the system reliability. Water pump selection Water pump select based on how many water need per day, and the actual water height .Pump head should be greater than the actual water height. Also can select water pump by the solar panels total power. Solar panels total power is double size of water pump power is need .In the area solar power is powerful, this scaling relation can be reduce. Please note solar water pump controller only drive Three Phases AC pumps. The pumps Operating Voltage can be 3 phase AC 220V or 3 phase AC 380V,and 50Hz ,2850RPM. Installation environmentThe inverter shall be mounted vertically in the electric control cabinet withgood ventilation. Horizontal or other installation modes are not allowed. Thecooling medium is the air. The inverter shall be installed in the environmentfree from direct sunlight, dust, corrosive gas, combustible gas, oil mist, steamand drip.
Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).
In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.
Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
