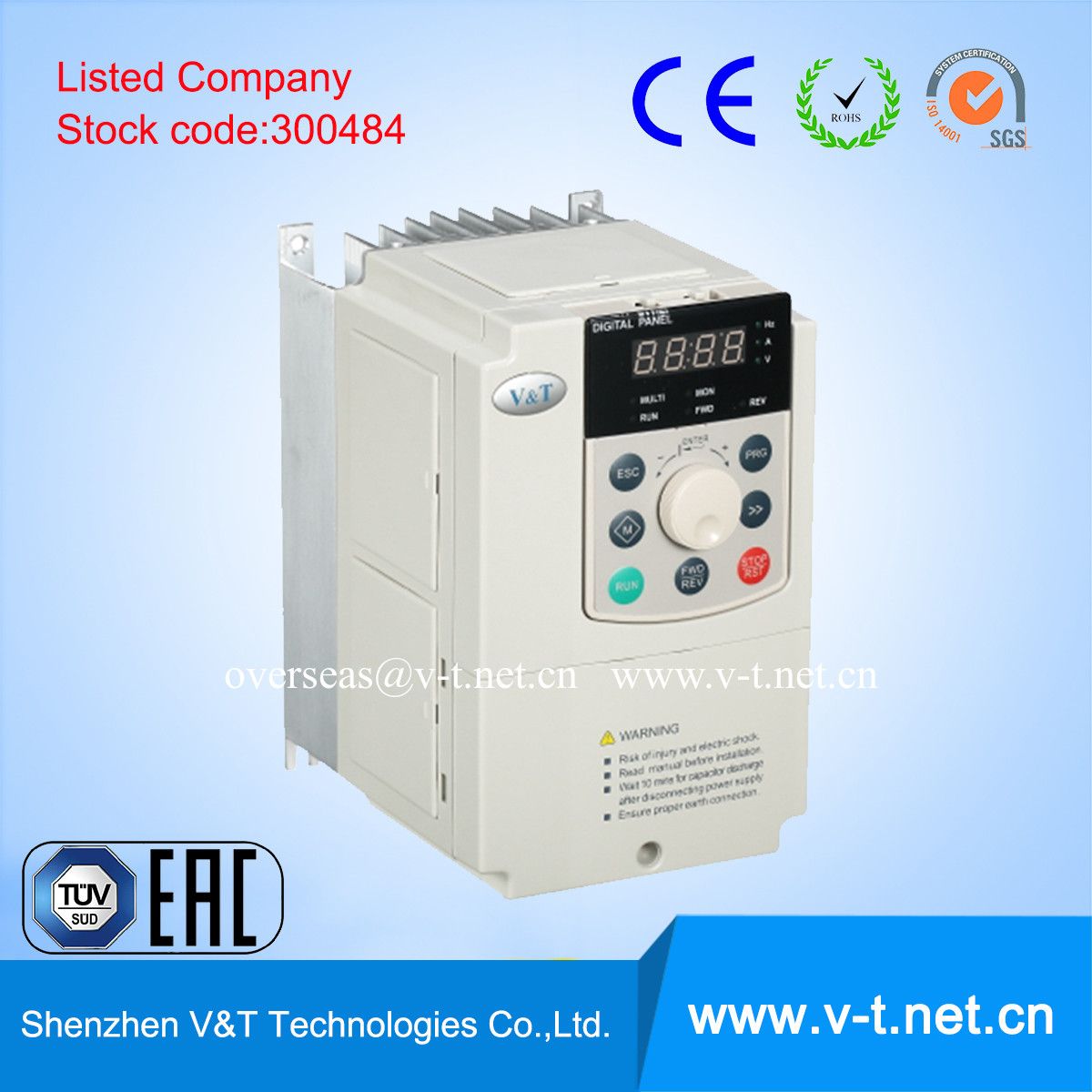

V&T Special Servo Drive for Electric-Hydraulic Modeling Machine Series Ts-I

Name: V&T Special Servo Drive for Electric-Hydraulic Modeling Machine Series Ts-I
Brand: all-electronics-online.com
SKU: 823709755
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V&T TS-I
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	V&T

Product Description

TS−I series synchronous servo driver is a high performance and highly reliable servo driver with high responding speed for electrolytic mixing system of the injection molding machine. The product is based on a flexible digital control module that uses high performance DSP, which realizes high performance vector control, precision position and speed control, non-linear weak magnetic high speed control and position calibration space vector low speed control for each kind of control algorithm and software for servo motors. In the meantime, in order to meet the high speed and high precision servo control requirements, its embedded self immunity control and speed control algorithm can realize better dynamic tracking and stable performance, and realize the trye high speed response, high precision and high reliably with the forward feed control of compensation servo and smoothing technology. In addition, the product can decouple the PQ control algorithm according to the features of the injection molding machine, increase the response speed and smooth moving speed of the injection molding machine and the mutual conversion of pressure control.

Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).

In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.

Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
