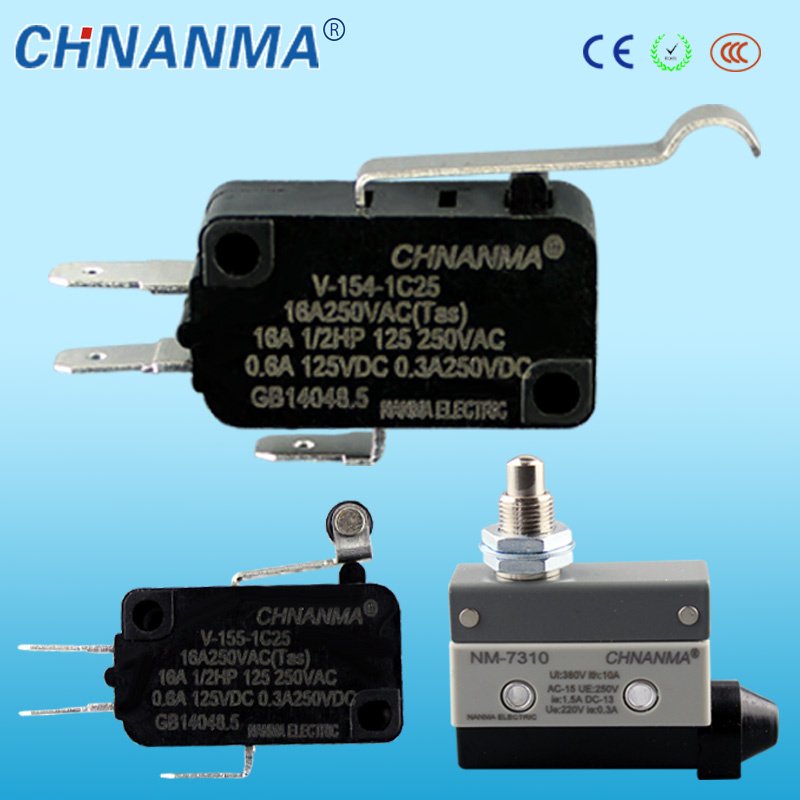

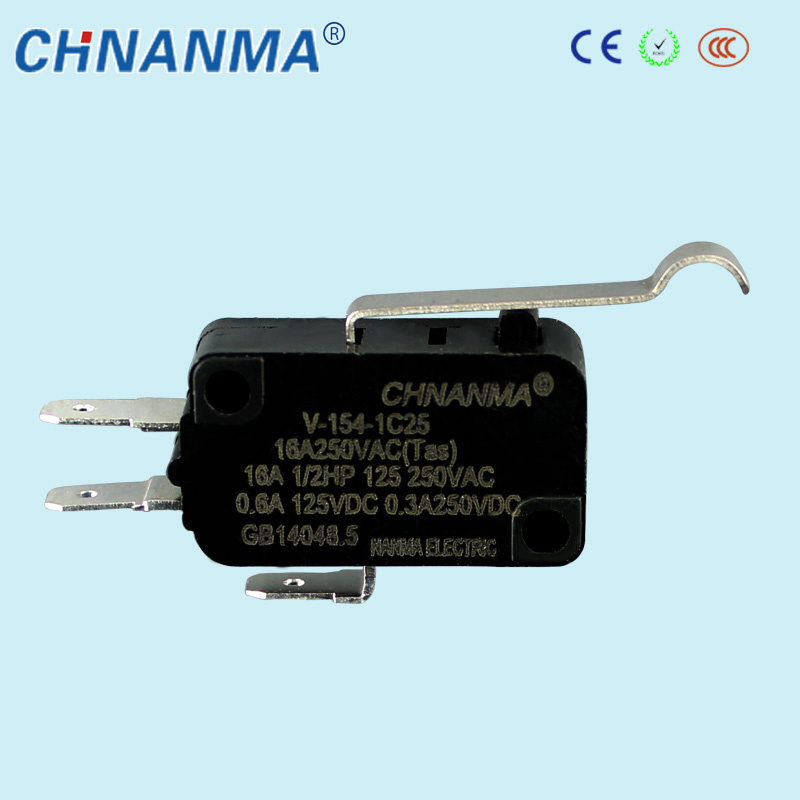

V15 Three Pins Micro Switch with Ce Certificate (V-154-1C25)

Name: V15 Three Pins Micro Switch with Ce Certificate (V-154-1C25)
Brand: all-electronics-online.com
SKU: 727738212
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	V-154-1C25
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Domestic Electric Appliances
Brand:	Chnanma

Product Description

High accuracy of action position;
Good shock resistance,maximum 1000m/s²;
Good heat resistance,maximum operating temperature is T105ºC;
High-strength shell, when mounting, the plastic shell can withstand torsional monment of 6kgf.cm without break.

Characterstics

Contanct resistance	15Ω max.(initial)
Insulation resistance	100mΩ min.(at 500VDC)
Dielectric strength	1000VAC 50/60Hz for 1minute
Life	Mechanical:10,000,000 operations min.
Life	Electrical:100,000 operations mins.(full load)

Encironmental Characterstics

Items	V-21,V-16,V-11
Permissible make-break-frequency	0.1mm-1m/s(push button type
misoperation	Double-amplitude 1.5mm10-5Hz(Contancts seperate in less than 1ms)
Permissible make-break-frequency	OF0.49N Type:98m/s2 below;OF1.96N Type;OF0.3.92N Type:294m/s2 below;OF0.98N Type:196m/s2 below(Contancts seperate in less than 1ms)
Mechanical life(stipulated over travel OT)	10,000,000times above(make-break frequency is 60 times/min
Ambient temperature and humidity	-25ºC-80ºC(no icing or dew),85%RH below(at about z+5-35ºC)
Weight(kg)	about 6.2g(push button type)

Characteristics of Contanct Module

Permissible make-break-frequency	Mechanical 600times/min;electrical30times/min
Insulation resistance	100mΩ above(using insulating-resistance meter of DC500V)
Contanct resistance(initial value)	Maximum15MΩ
Among-non-insulated terminals	AC1000V50/60Hz min
Between the grounding and terminals	AC2000V50/60Hz 1min
Electrical life(stipulated over travel OT)	100,000times above(make-break frequency is 60times/min)

Dimessions/Operating Characteristics

Operation Speciality	V-214-1-6	V-164-1-4
OF max.	250g	125g
RF min.	25g	14g
PT max.	4.0mm
OT min.	1.6mm
MD max.	1.5mm(0.8mm)
OP	18.7±1.2mm

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
