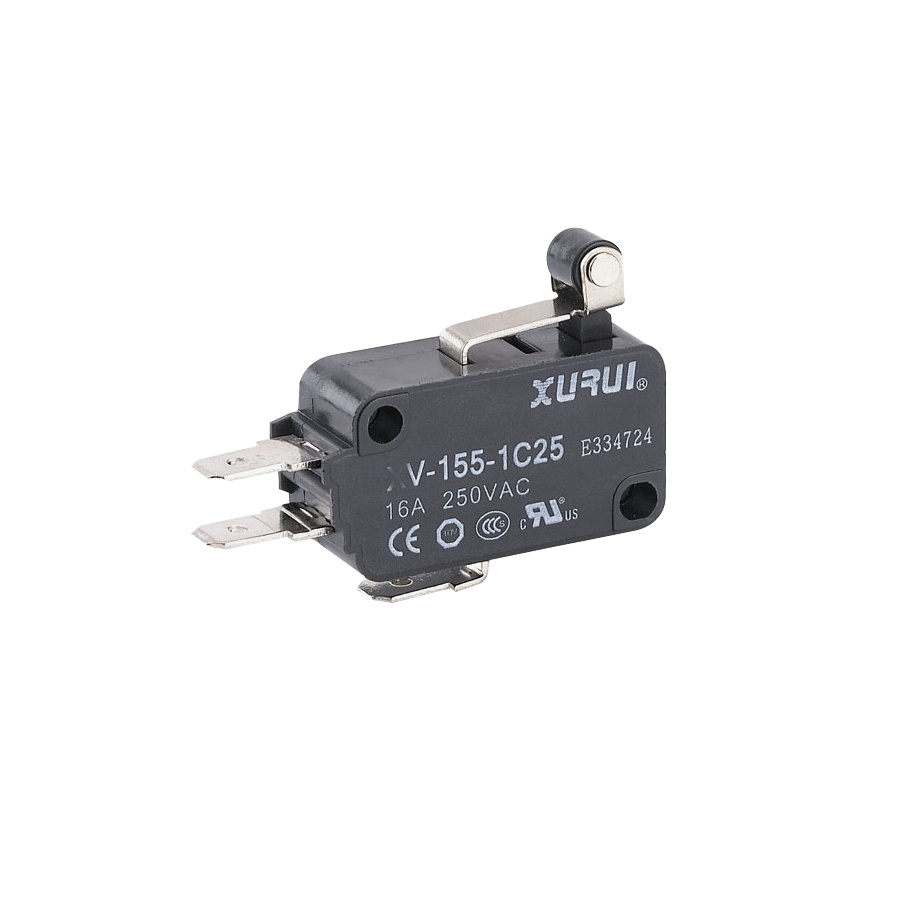

| Prod Model: |
V-155-1C25 |
| Pressing Type: |
Push-Button |
| Protection: |
Waterproof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Breaking Form: |
Single Type |
| Application: |
Domestic Electric Appliances |
| Brand: |
Chnanma |
Product Description
High accuracy of action position;
Good shock resistance,maximum 1000m/s
2;
Good heat resistance,maximum operating temperature is T105ºC;
High-strength shell, when mounting, the plastic shell can withstand torsional monment of 6kgf.cm without break.
Characterstics| Contanct resistance | 15Ω max.(initial) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
| Dielectric strength | 1000VAC 50/60Hz for 1minute |
| Life | Mechanical:10,000,000 operations min. |
| Electrical:100,000 operations mins.(full load) |
Encironmental Characterstics | Items | V-21,V-16,V-11 |
| Permissible make-break-frequency | 0.1mm-1m/s(push button type |
| misoperation | Double-amplitude 1.5mm10-5Hz(Contancts seperate in less than 1ms) |
| Permissible make-break-frequency | OF0.49N Type:98m/s2 below;OF1.96N Type;OF0.3.92N Type:294m/s2 below;OF0.98N Type:196m/s2 below(Contancts seperate in less than 1ms) |
| Mechanical life(stipulated over travel OT) | 10,000,000times above(make-break frequency is 60 times/min |
| Ambient temperature and humidity | -25ºC-80ºC(no icing or dew),85%RH below(at about z+5-35ºC) |
| Weight(kg) | about 6.2g(push button type) |
Characteristics of Contanct Module | Permissible make-break-frequency | Mechanical 600times/min;electrical30times/min |
| Insulation resistance | 100mΩ above(using insulating-resistance meter of DC500V) |
| Contanct resistance(initial value) | Maximum15MΩ |
| Among-non-insulated terminals | AC1000V50/60Hz min |
| Between the grounding and terminals | AC2000V50/60Hz 1min |
| Electrical life(stipulated over travel OT) | 100,000times above(make-break frequency is 60times/min) |
Dimessions/Operating Characteristics
| Operation Speciality | V-215-1-6 | V-165-1-4 |
| OF max. | 480g | 240g |
| RF min. | 50g | 50g |
| PT max. | 1.6mm |
| OT min. | 0.8mm |
| MD max. | 0.6mm(0.5mm) |
| OP | 15.2±0.5mm |
