Vacuum Circuit Breaker Zn28 Vs1 Td630/12-31.5

Name: Vacuum Circuit Breaker Zn28 Vs1 Td630/12-31.5
Brand: all-electronics-online.com
SKU: 839914665
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 100-105/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	302C
Warranty:	12 Month
Rated Voltatge:	12kv
Rated Current:	630/1250A
Rated Short-Circuit Breaking Current:	31.5ka
Mechanical Life:	20000 Times
Shelf Life:	20 Years
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	3
Certification:	CQC
Structure:	Vacuum
Type:	Vacuum
Function:	Vacuum

Product Description

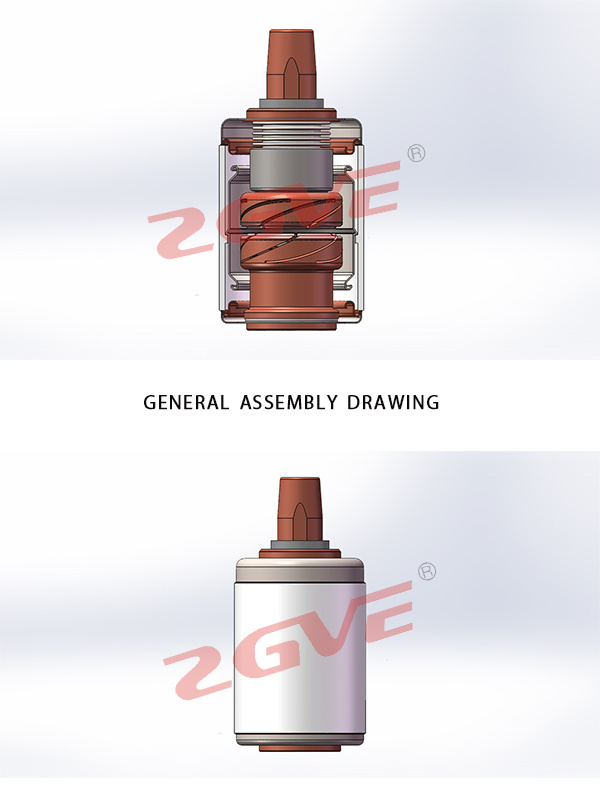

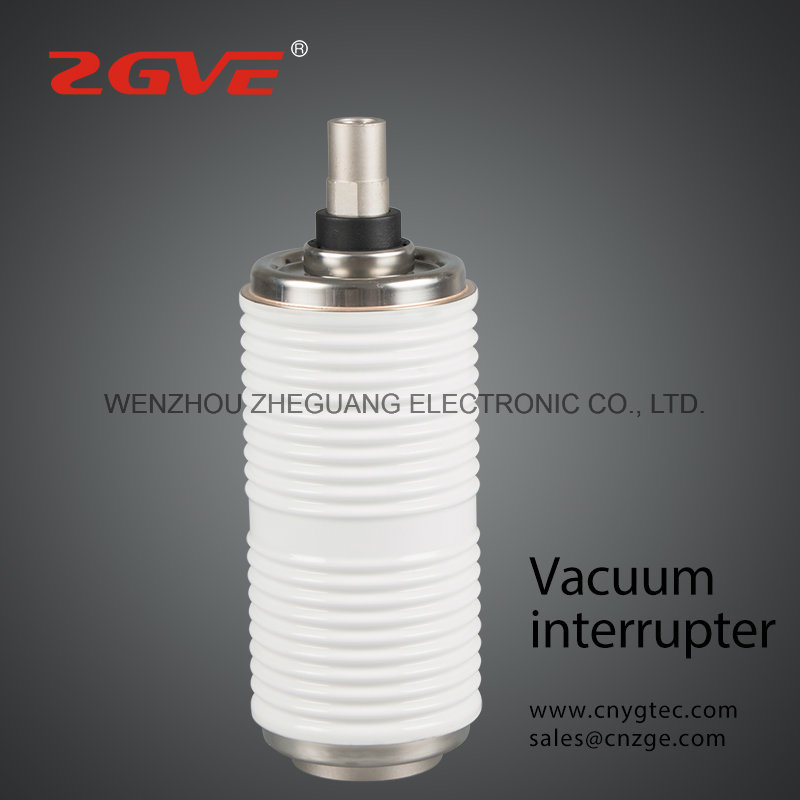

ZN28 VS1 Vacuum Interrupter For Indoor Circuit Breaker 302C

Main Technical Data

Main Technical Data
Rated Voltage	12kV
Rated Current	630/1250A
Rated Frequency	50Hz
Rated Short-time power frequency withstand voltage(1min)	42kV
Rated Lighting impulse withstand voltage	75kv
Rated short-circuit breaking current	31.5KA
Rated short-circuit making current(peak)	80kA
Breaking operations of rated short circuit breaking current	30 timies
Rated sigle capacitor bank breaking current	630A
Rated short-time withstand current	31.5kA
Rated peak withstand current	80kA
Rated duration of short-circuit	4s
Mechanica life	20000times
Contact closing force due to bellows and atmosphere	120±50N
Counterforce at rated contact stroke	190±60N
Circuit resistance at rated contact force	≤25μΩ
Shelf life	20 years
Contact erosion limit	3mm
Weight of moving parts	≤1.5kg
Mechanical Data Required for matched vacuum switchgear
Rated contact stroke	10±1mm
Average opening speed	1.0±0.2m/s
Average closing speed	0.65±0.15m/s
Added contact force	3150±200N
Contact bouncing duration at closing operation	≤2ms
Contact bouncing bank amplitude of opening operation	≤2mm
Three-pole simultaneity	≤1ms

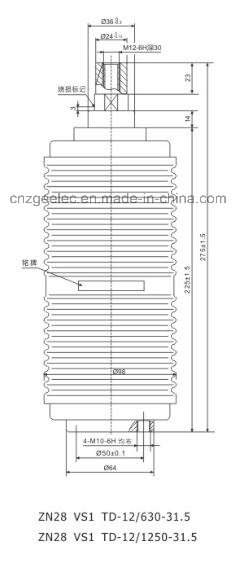

Dimensional Drawing
