Vacuum Switch

Name: Vacuum Switch
Brand: all-electronics-online.com
SKU: 822627405
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 1000-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VS1
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Insert
Poles Number:	3
Certification:	CB
Structure:	Vcb
Function:	Vacuum Circuit Breaker

Product Description

Introduction :

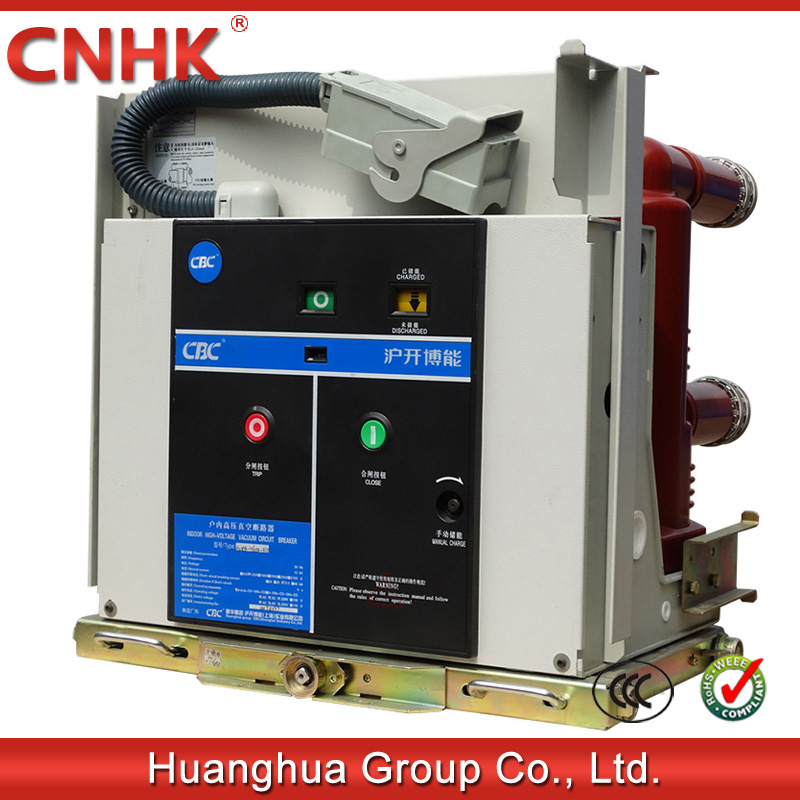

VS1 -12KV fixed type indoor vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz/60Hz Indoor high-voltage switchgear ,applied for power stations, substations, and industrial and mining enterprises to control or protection transmission and distribution systems , specially for the important high altitude breaking load and frequent operation place.

Circuit breaker manufacturing accordance with our national standard GB1984-2003 , DL / T403-2000<3.6 ~ 40.5kV Indoor Vacuum Circuit Breaker ordering technology>; and the related IEC standards And reliable interlock function.

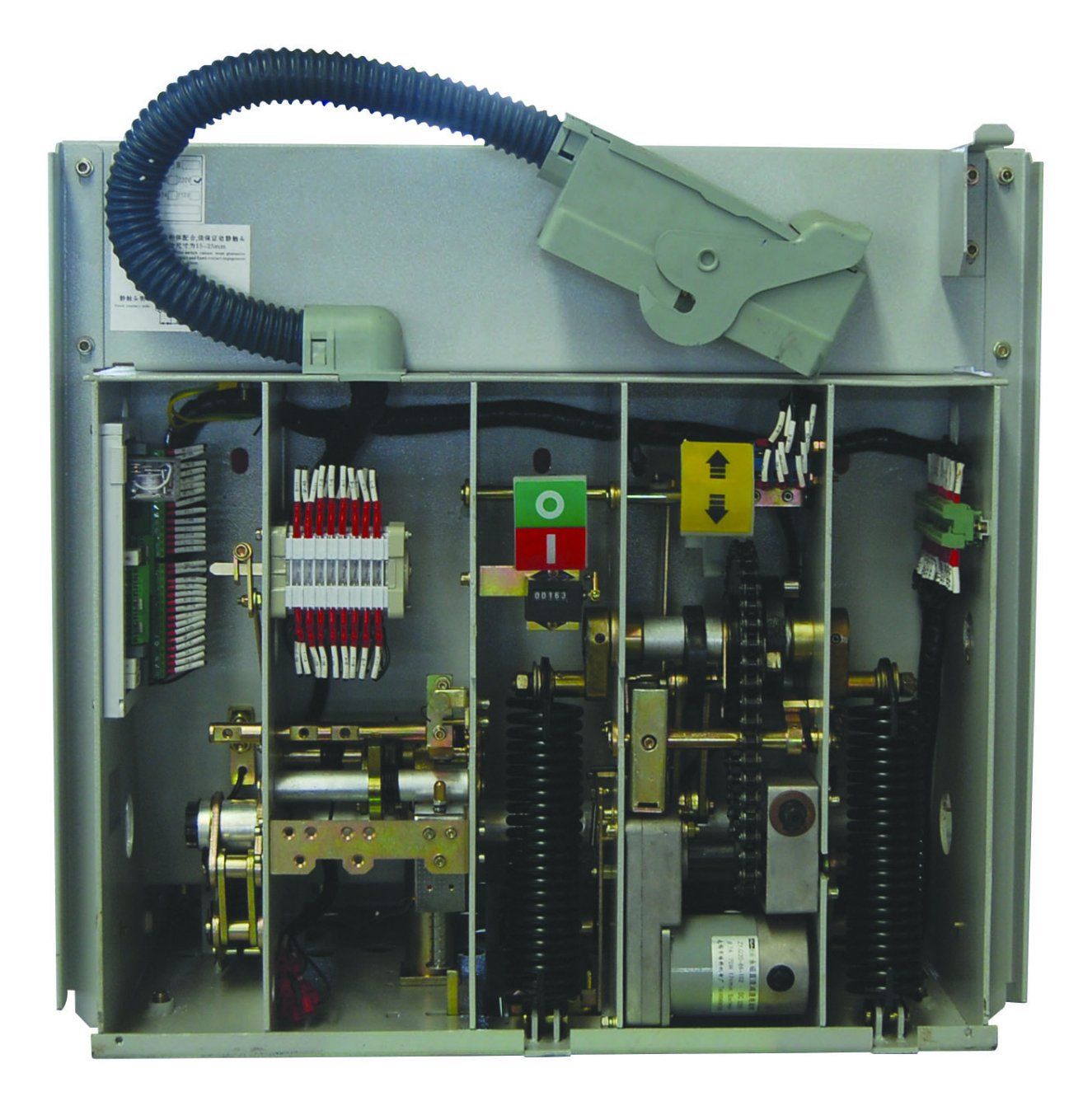

Circuit breaker operating mechanism for the spring energy storage type, can use AC and DC energy storage operations, can also be used manually.

Circuit breaker can also be equipped with long life permanent magnetic actuator, mechanical life can reached 60000 times , can be used for extremely Frequent operation place,

Circuit breaker designed to repackage the structure before and after, both can be used as a fixed installation unit, Can also be equipped with the chassis as used in the mounted unit.

The use of environmental conditions:

1.Ambient temperature: not higher than +40 °C, not less than -15°C

2. Altitude: not exceed 1000m.

3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.

4. Earthquake intensity: not more than ten.

5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

Mainly technical parameters
NO	Item	Units	parameters
1	Rated voltage	KV	12
2	Rated Frequency	HZ	50/60
3	Rated Current	A	4000A
4	Rated short-circuit breaking current	KA	40KA
5	Rated short-circuit closing current (peak)	KA	50 63 80
6	Rated short-circuit duration	S	4
7	Rated short-circuit breaking current breaking number	nos	50s
8	Rated operating sequence		0-0.3s-CO-180s-CO
9	Rated lightning impulse withstand voltage	kv	125
10	1min power frequency withstand voltage	KV	65
11	Closing time	ms	≤ 70
12	opening time	ms	≤ 50
13	Mechanical life	Times	20000
14	Rated Storage and operation voltage	V	AC DC 220/110
15	Breaking life	ms	≤ 80
16	Storage life	s	≤ 10
Adjust the parameters of mechanical properties:
No	Item	Unit	Parameters
1	Contact distance	mm	14±1
2	Contact Over-travel	mm	3.5±1
3	Closing speed	m/s	1.0±0.2
4	Opening speed	m/s	1.3±0.2
5	Contact closing spring time	ms	≤2
6	Rated contact pressure	N	40KA (4000±200)
7	Three phase closing opening asynchrony	ms	≤2

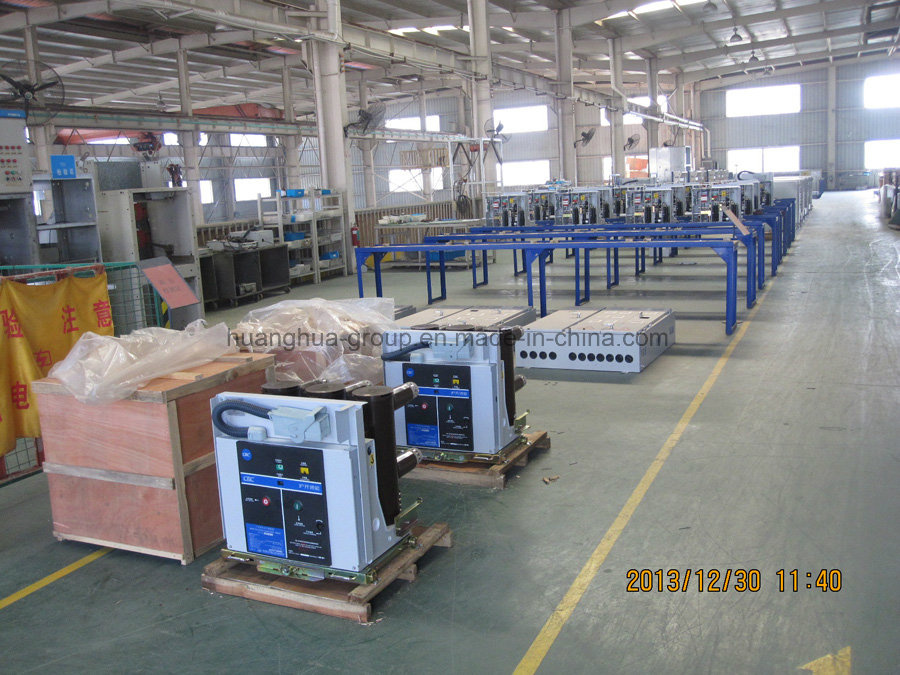

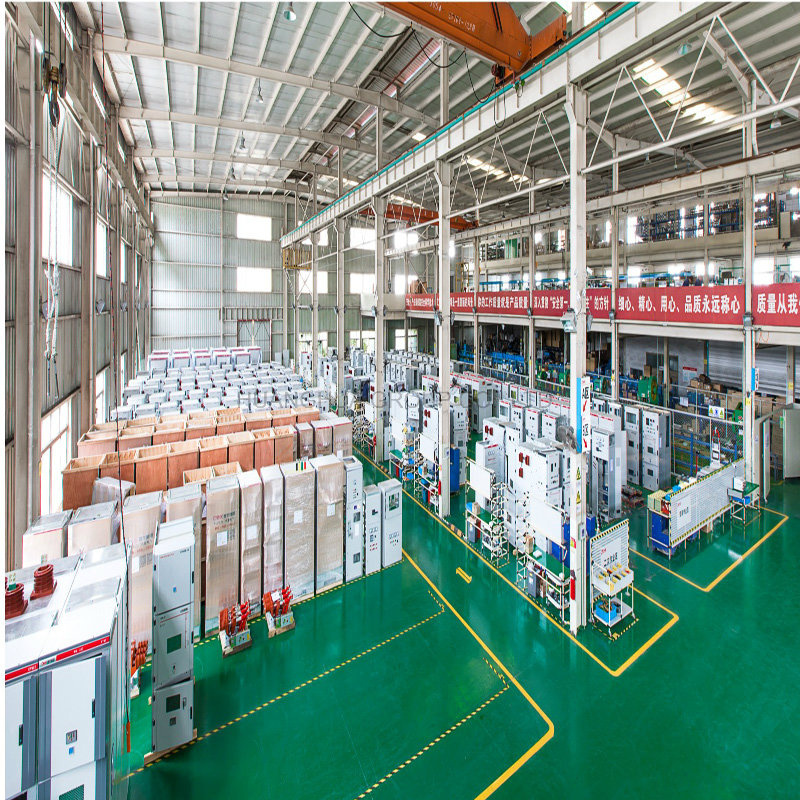

Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.

Huanghua Group is one of the Top 500 Private Enterprises in comprehensive strength in China, mainly specializing in the production of high-low voltage power transmission and distribution equipment, including substation, power distribution automated switchgears, terminal devices, as well as high-low voltage components, etc. In view of being specialized in electric industry, Huanghua Group gradually grows into one of the leading enterprises in industrial electrical equipment field in China. The group has invested in Shanghai to establish Shanghai Huanghua (CNHK) Electric Industrial Zone. The industrial zone area is more than 80, 000 square meters.

For more than 30 years, Huanghau Group has always been insisting on the operation philosophy of "People oriented, Credit Based, Values Shared".

Nowadays, science and technology are under rapid development. We believe the human society's progress shall be highly promoted, and we will go with this trend to keep forging ahead actively.

We have passed ISO9001 Quality System Certification, ISO14001 Environment System Certification and other certificates on programs, including China Compulsory Certification (CCC) and CE. International certificates are under proceeding.

We are looking forward to cooperating with you and to creating a brilliant future together.
