| Prod Model: |
sl |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Plant Class: |
a Class |
| Delivery Time: |
10-15 Workdays |
| Cycle-Life: |
2000times |
| Nominal Capacity: |
7ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

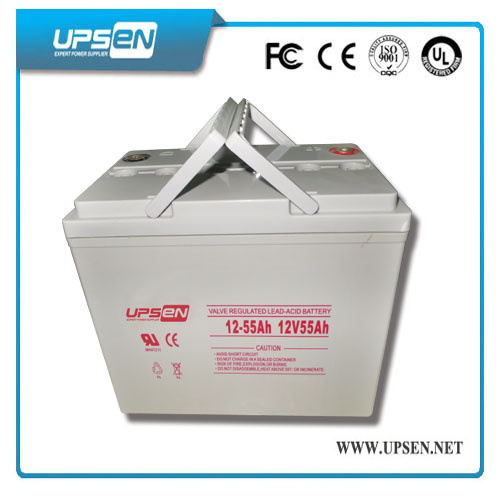

Valve Regulated Lead acid battery UPS Battery with friendly environment
key features
1:safety valve installation for explosion proof.
2:This classic product used high quality materials
3:It can be safety used between -30 ºC and 50 ºC
4:Larger and thicker plate means less internal corrosion
5:comply with environmental requirements, ease of use
6:Proprietary Pb-Sn alloy with addition of Ca for positive grid
7:All with high purity raw materials, battery self-discharge is minimal
8:Equalization charges are not required and cycle or standby (or float) use
9:High quality AGM separator: extend cycle life and prevent micro short circuit
10:advanced welding machine ,not easy shourt-circuit ,ensure batteries long life
11:Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use
main application
alarm systems,marine equipment,Control equipment,Industrial intellectual control system ,medical equipment,Automotive, vehicle, boats, civil office,Robots, Electric Toys, Electric Tools & Portable Vacuum Cleaners,etc.
Technical Specification
model | nominal | capacity | external dimension | weight | terminal |
| voltage | (ah) | length | width | height | total height | approx | type |
| (v) | 10hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound |
|
| sl1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.7 | 3.74 | t1 |
| sl1250(ii) | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.58 | 3.48 | t1/t2 |
| sl1250(iii) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.92 | 4.22 | t1/t2 |
| sl1250(iv) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.98 | 4.36 | t1/t2 |
| sl1250(v) | 12 | 5 | 151 | 5.9 | 51 | 2 | 93 | 3.66 | 99 | 3.9 | 1.8 | 3.96 | t1 |
| sl1250(vi) | 12 | 5 | 140 | 5.5 | 48 | 1.89 | 102 | 4.02 | 103 | 4.1 | 1.68 | 3.7 | t43 |
| sl1260 | 12 | 6 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.85 | t1/t2 |
| sl1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1265(ii) | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 1.95 | 4.3 | t1/t2 |
| sl1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.34 | 5.16 | t1/t2 |
| sl1270(ii) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.86 | t1/t2 |
| sl1270(iii) | 12 | 7 | 151 | 5.94 | 51 | 2.01 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1270(iv) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.15 | 4.75 | t1 |
| sl1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.47 | 5.45 | t1/t2 |
| sl1275(ii) | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.38 | 5.24 | t1/t2 |
| sl1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.5 | 5.51 | t1/t2 |
| sl1290 | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.78 | 6.13 | t2/t1 |
| sl1290(ii) | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.45 | 5.4 | t2/t1 |
| sl12100 | 12 | 10 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.6 | 3.2 | 7.05 | t2 |
| sl12100(ii) | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.6 | t1/t2 |
| sl12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.7 | 8.16 | t251/t1 |
| sl12120(ii) | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.71 | t251/t1 |
| sl12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 4.1 | 9.02 | t2 |
| sl12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12160 | 12 | 16 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.08 | t3/t13 |
| sl12180 | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12180(ii) | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.5 | 12.11 | t3a/t13 |
| sl12200 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.8 | 12.76 | t3a/t14 |
| sl12220 | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 6.1 | 13.43 | t3a/t14 |
| sl12240 | 12 | 24 | 166 | 6.54 | 175 | 6.9 | 125 | 4.92 | 125 | 4.9 | 7.2 | 15.87 | t4/t13 |
| sl12240(ii) | 12 | 24 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 8 | 17.6 | t66/t32 |
| sl12260 | 12 | 26 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 7.8 | 17.62 | t4/t13 |
| sl12280 | 12 | 28 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 9 | 19.82 | t4/t13 |
| sl12280(ii) | 12 | 28 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 9 | 19.82 | t66/t32 |
| sl12280(iii) | 12 | 28 | 175 | 6.9 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 8.7 | 19.16 | t4/t13 |
| sl1870 | 18 | 7 | 151 | 5.9 | 102 | 4.02 | 100 | 3.94 | 100 | 3.9 | 3.5 | 7.7 | tw5 |
| sl2435 | 24 | 3.5 | 180 | 7.1 | 73 | 2.87 | 70 | 2.76 | 70 | 2.8 | 2.6 | 5.73 | tw10 |
| sl24180 | 24 | 18 | 170 | 6.69 | 146 | 5.75 | 187 | 7.36 | 187 | 7.4 | 11 | 24.23 | tw10 |
| sl6360 | 6 | 36 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7, , | 5.9 | 13.04 | t251/t16 |
| sl6420 | 6 | 42 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7 | 5.9 | 13.04 | t251/t16 |
| sl61000 | 6 | 100 | 195 | 7.67 | 170 | 6.69 | 2.06 | 8.11 | 211 | 8.3 | 17 | 37.57 | t16 |
| sl61050 | 6 | 105 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 8 | 18.5 | 40.88 | t16 |
| sl61200 | 6 | 120 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.3 | 19 | 42 | t16 |
| sl61500 | 6 | 150 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 27 | 59.67 | t19 |
| sl61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29 | 64.09 | t19 |
| sl61800(ii) | 6 | 180 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 30 | 66.14 | t85 |
| sl61900 | 6 | 190 | 306 | 12 | 169 | 6.65 | 223 | 8.78 | 228 | 9 | 28 | 61.6 | t19 |
| sl62000 | 6 | 200 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 29.5 | 65.19 | t19 |
| sl62250 | 6 | 225 | 243 | 9.57 | 188 | 7.4 | 275 | 10.8 | 275 | 11 | 34.5 | 76.24 | t19 |
| sl62250(ii) | 6 | 225 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29.5 | 65.2 | t19 |
| sl81800 | 8 | 180 | 260 | 10.23 | 182 | 7.17 | 295 | 11.6 | 300 | 12 | 36.5 | 64.09 | t19 |
| sl12330 | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10 | 22.1 | t16/t64 |
| sl12330(ii) | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 9.7 | 21.44 | t16/t64 |
| sl12350 | 12 | 35 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10.5 | 23.2 | t16/t64 |
| sl12400 | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.74 | t9/t16 |
| sl12400(ii) | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13 | 28.73 | t9/t16 |
| sl12400(iii) | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 180 | 7.1 | 13 | 28.6 | t51 |
| sl12150w | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 170 | 6.69 | 170 | 6.7 | 13.5 | 29.83 | t66 |
| sl12440 | 12 | 44 | 196 | 7.7 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.83 | t7/t9/t16 |
| sl12440(ii) | 12 | 44 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 182 | 7.2 | 13.5 | 29.83 | t51 |
| sl12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550 | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550(ii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 228 | 8.9 | 17.2 | 38 | t53 |
| sl12550(iii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 211 | 8.19 | 226 | 8.9 | 17.2 | 38 | t16 |
| sl12550(iv) | 12 | 55 | 277 | 10.91 | 106 | 4.17 | 222 | 8.74 | 222 | 8.7 | 17.5 | 38.58 | t102 |
| sl12600 | 12 | 60 | 240 | 9.45 | 200 | 7.87 | 199 | 7.83 | 209 | 8.2 | 21 | 46.3 | t15 |
| sl12600(ii) | 12 | 60 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.1 | 21 | 46.3 | t9/t16 |
| sl12600(iii) | 12 | 60 | 265 | 10.43 | 190 | 7.48 | 222 | 8.74 | 222 | 8.7 | 21 | 46.3 | t |
| sl12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 21 | 46.4 | t9/t16 |
| sl12650(ii) | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 22 | 48.5 | t9/t16 |
| sl12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23 | 50.66 | t16/t33 |
| sl12700(ii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 22.8 | 50.3 | t16/t33 |
| sl12700(iii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 210 | 8.27 | 217 | 8.5 | 22.8 | 50.27 | t9/t16 |
| sl12700(iv) | 12 | 70 | 350 | 3.78 | 167 | 6.67 | 178 | 7.01 | 179 | 7.1 | 22.5 | 49.72 | t9/t16 |
| sl12750 | 12 | 75 | 562 | 22.13 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | 27 | 59.52 | t102 |
| sl12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23.5 | 51.93 | t16/t33 |
| sl12800(ii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23.5 | 51.7 | t16 |
| sl12800(iii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23 | 50.71 | t9/t16 |
| sl12900 | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 28 | 61.88 | t10/t16 |
| sl12900(ii) | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 27.5 | 60.77 | t10/t16 |
| sl12900(iii) | 12 | 90 | 307 | 12.1 | 168 | 6.61 | 208 | 8.19 | 214 | 8.4 | 28 | 61.88 | t10/t16 |
| sl121000 | 12 | 100 | 330 | 12.99 | 172 | 6.77 | 214 | 8.43 | 237 | 9.3 | 32 | 70.55 | t10/t16 |
| sl121000(ii) | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 30.8 | 68.1 | t10/t16 |
| sl121000(iii) | 12 | 100 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 8.8 | 34 | 75 | t16/t11d |
| sl121050 | 12 | 105 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.4 | 30.6 | 67.6 | t16 |
| sl121100 | 12 | 110 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 33 | 72.9 | t10/t16 |
| sl121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 38 | 83.98 | t11/t16 |
| sl121200(ii) | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 36.5 | 80.66 | t11/t16 |
| sl121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 289 | 11 | 41.5 | 91.3 | t19 |
| sl121500 | 12 | 150 | 484 | 191.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.5 | 46 | 101 | t12/t50 |
| sl121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 52 | 115 | t11/t60 |
| sl121600(i) | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 50 | 110.5 | t11/t60 |
| sl121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 55.5 | 122.6 | t11/t60 |
| sl121800(ii) | 12 | 180 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 53 | 117.1 | t11/t60 |
| sl122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 63.5 | 140.4 | t11/t19 |
| sl122000(ii) | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 60.5 | 133.7 | t11/t19 |
| sl122300 | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 72.5 | 160.2 | t12/t19 |
| sl122300(ii) | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 69.5 | 153.6 | t12/t19 |
| sl122500 | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 76 | 174 | t12/t19 |
| sl122500(ii) | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 73 | 161.3 | t12/t19 |
| *specification are subject to change without prior notice |
