| Prod Model: |
JR201-FK |
| Color: |
White |
| Volume Control: |
Yes |
| Wall Mounting: |
Yes |
| Version: |
Analogue/SIP/VoIP/GSM/3G |
| Weather Resistant: |
IP54-IP65 |
| Auto Dial: |
Yes |
| Handset: |
Yes |
| Material: |
Stainless Steel |
| LCD Display: |
Yes |
| Full Keypad: |
Yes |
| Usage: |
Prison,School,etc. |
| Call Type: |
Mixed |
| Hardware Technology: |
Board |
| Certification: |
ISO |
| Condition: |
New |
Product Description

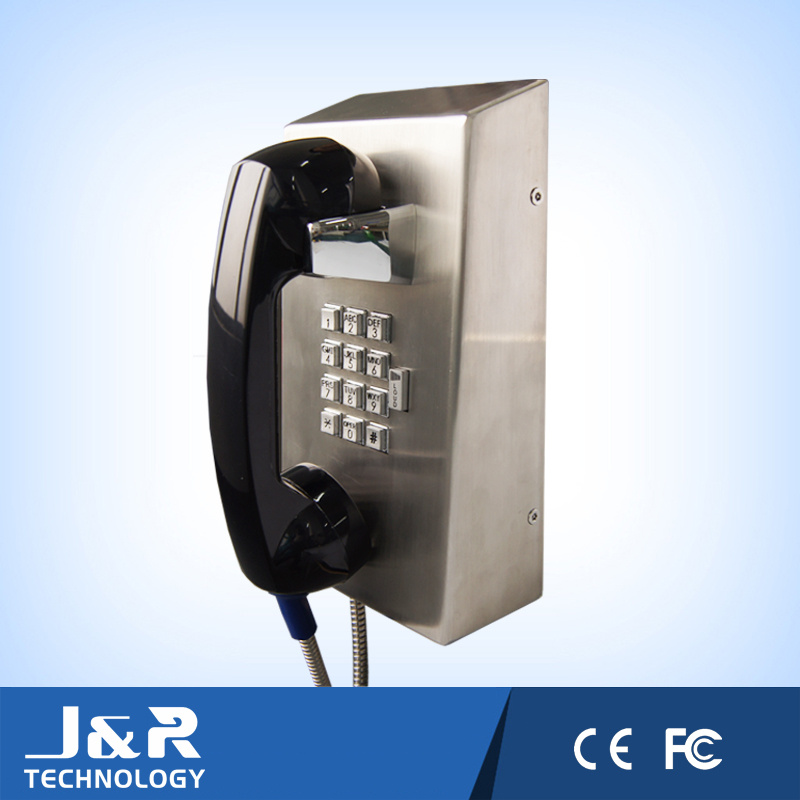

J&R Vandalproof Public Telephone Emergency Industrial Phone Wireless Auto-Dial Phone
APPLICATIONS:
Model Number: JR201-FK
Sos Telephone Vandal Resistant Bank Services Phone that could used for Inmate,school,prisons, bank service ,railway/ platforms, hospitals, police stations,hotel,escape trunk,Marine,Chemical plant,control room,metro station and related industrial application, etc.This Telephone is housed in stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
FEATURES:
Analogue/SIP/GSM/IP Telephone
Robust construction, Vandal resistant
Weather protection IP54-IP65
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Full Keypad with volume control button
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Telephone line powered
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC compliant
FEATURES:
Analogue/SIP/GSM/3G phone
Robust construction, Vandal resistant
Weather protection IP54-IP65
Tamper resistant fixings
Simple installation,With LCD Display
Fast-fit terminal connection
Full Keypad with volume control button
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Telephone line powered
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC compliant
Suitable for indoor & outdoor application
Designed to flush mount or surface mount into flat surface
The phone has stainless steel faceplate, Material: Metal SS 304,thickness 2 mm.
The telephone electronics is on the rear of the faceplate and is
covered with back box in CRCA for protection
The phone operates on standard analog phone line
It is Line powered i.e. power drawn from telephone line. It doesn't require battery or any external power source.
Built in Ringer, in front panel.
Sealed, push button keypad for smoother and faster dialing of numbers.
Dialing system: Tone dialing (DTMF)
No mechanical or moving parts.
a)Automatic Shut-Off
b)Remote Shut-Off
c)Adjustable Time Out Functions
emergency button external output control. (i.e. Blinking or Flashing Strobe)
Auto-Redial of Additional Numbers, If line busy or no answer.
Emergency Call in Progress Cannot be terminated.
Auto-Answer feature allows for call back and monitoring of area.
Voice and location identification signal.
ADA Compliant:
a)"Red" indicator light automatically activated when any button on Ramtel phone is pressed, and changes to "Green" when call is answered.
b)Braille Plaque includes International Phone Symbol.Phone Diagnostics include: Emergency and Manual Button, LED, Microphone & Speaker
TECHNICAL SPECIFICATIONS:
| Telephone Versions | Analogue,SIP,GSM,3G Optional |
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | 80 dBA @ 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
| Power Supply | telephone line or DC or solar powered |
| Weather Resistance | IP54-IP65 |
| Casing Material | stainless steel |
PACKAGE:
Unit size: 130*247*132(mm)
Carton size:340 *240 *160( mm)
Packaging materials: pearl cotton, carton
Net weight: 2.5KG
Gross weight: 3KG
