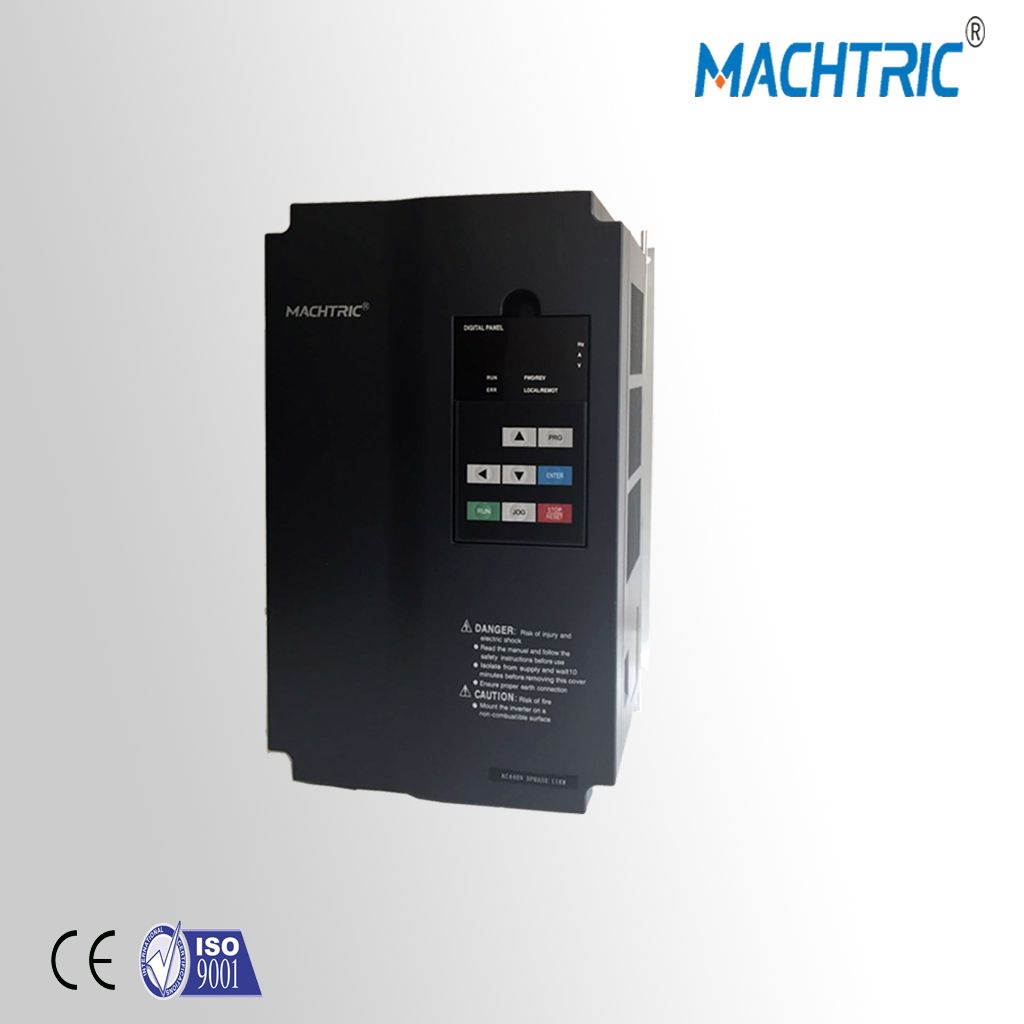

| Prod Model: |
S2800E |
| Markets: |
North America,South America,Southeast Asia |
| AC Drive: |
AC Motor Drives |
| Control Mode: |
Vector Control |
| VSD: |
Variable Speed Drive |
| VFD: |
Variable Frequency Drive |
| Power Rate: |
0.4kw-315kw |
| Voltage: |
220V, 380V |
| Phase: |
1 / 3 Phases |
| Size: |
Different Size |
| Weight: |
Different Weight |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
| Function: |
General Used |
| Brand: |
Machtric |
Product Description
We are professional manufacturer supplying with industrial automation products. with the support of our R&D, system engineering and the advantage of the abundant international resources, we have solved many problems by our engineer for different application. We would like to be one of the most popular industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products have been broadly applied in Textile, Packing, plastic, ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We keep on promoting efficiently the competition ability of the technique, quality, service and positive take part in the project of energy program and productivity promotion in industry field. We work hard in environment protection in return for society.
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Model NO. | Rated output power(KW) |
Rated inout current(A) |
Rated output current(A) |
Motor power (KW) |
| 1PH/3PH AC 220V -15%~15% |
| S2800-2T0.4GE | 0.4 | 5.4 | 2.3 | 0.4 |
| S2800-2T0.75GE | 0.75 | 8.2 | 4.5 | 0.75 |
| S2800-2T1.5GE | 1.5 | 14.2 | 7 | 1.5 |
| S2800-2T2.2GE | 2.2 | 23 | 10 | 2.2 |
| S2800-2T3.7GE | 3.7 | 35 | 16 | 3.7 |
| 3PH AC 380V ±15% |
| S2800-4T0.4GE | 0.4/0.75 | 3.4/3.8 | 1.2/2.5 | 0.4/0.75 |
| S2800-4T0.75GE | 0.75/1.5 | 3.8/5.0 | 2.5/3.7 | 0.75/1.5 |
| S2800-4T1.5GE | 1.5/2.2 | 5.0/5.8 | 3.7/5.0 | 1.5/2.2 |
| S2800-4T2.2GE | 2.2/3.7 | 5.8/10.0 | 5.0/9.0 | 2.2/3.7 |
| S2800-4T3.7GE | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| S2800-4T5.5GE | 5.5/7.5 | 15.0/20.0 | 13.0/17.0 | 5.5/7.5 |
| S2800-4T7.5GE | 7.5/11 | 20.0/26.0 | 13.0/17.0 | 7.5/11 |
| S2800-4T11GE | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
| S2800-4T15GE | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
| S2800-4T18.5GE | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| S2800-4T22GE | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
| S2800-4T30GE | 30/37 | 62.0/76.0 | 60.0/75.0 | 30/37 |
| S2800-4T37GE | 37/45 | 76.0/90.0 | 75.0/90.0 | 37/45 |
| S2800-4T45GE | 45/55 | 90.0/105.0 | 90.0/110.0 | 45/55 |
| S2800-4T55GE | 55 | 105 | 110 | 55 |
| S2800-4T75GE | 75/90 | 140.0/160.0 | 150.0/176.0 | 75/90 |
| S2800-4T90GE | 90/110 | 160.0/210.0 | 176.0/210.0 | 90/110 |
| S2800-4T110GE | 110/132 | 210.0/240.0 | 210.0/253.0 | 110/132 |
| S2800-4T132GE | 132/160 | 240.0/290.0 | 253.0/300.0 | 132/160 |
| S2800-4T160GE | 160/185 | 290.0/330.0 | 300.0/340.0 | 160/185 |
| S2800-4T185GE | 185/200 | 330.0/370.0 | 340.0/380.0 | 185/200 |
| S2800-4T200GE | 200/220 | 370.0/410.0 | 380.0/420.0 | 200/220 |
| S2800-4T220GE | 220/250 | 410.0/460.0 | 420.0/470.0 | 220/250 |
| S2800-4T250GE | 250/280 | 460.0/500.0 | 470.0/520.0 | 250/280 |
| S2800-4T280GE | 280/315 | 500.0/580.0 | 520.0/600.0 | 280/315 |
| S2800-4T315GE | 315/350 | 580.0/620.0 | 600.0/640.0 | 315/350 |
| S2800-4T350GE | 350/400 | 620.0/670.0 | 640.0/690.0 | 350/400 |
| S2800-4T400GE | 400/450 | 670.0/790.0 | 690.0/790.0 | 400/450 |
| S2800-4T450GE | 450/500 | 790.0/835.0 | 790.0/860.0 | 450/500 |
| S2800-4T500GE | 500/560 | 835.0/920.0 | 860.0/950.0 | 500/560 |
| S2800-4T560GE | 560/630 | 920.0/1050.0 | 950.0/1100.0 | 560/630 |
| S2800-4T630GE | 630/710 | 1050.0/1126.0 | 1100.0/1280.0 | 630/710 |
| S2800-4T710GE | 710/800 | 1126.0/1460.0 | 1280.0/1380.0 | 710/800 |
| S2800-4T800GE | 800/900 | 1460.0/1640.0 | 1380.0/1640.0 | 800/900 |
| S2800-4T900GE | 900/1000 | 1640.0/1800.0 | 1640.0/1720.0 | 900/1000 |
| S2800-4T1000GE | 1000 | 1800 | 1720 | 1000 |
Target market of S2800 E series Inverter
Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation. Etc
Textile equipment
