| Prod Model: |
V&T V6-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Brand: |
V&T |
| Main Circuit Type: |
Voltage and Current |
Product Description

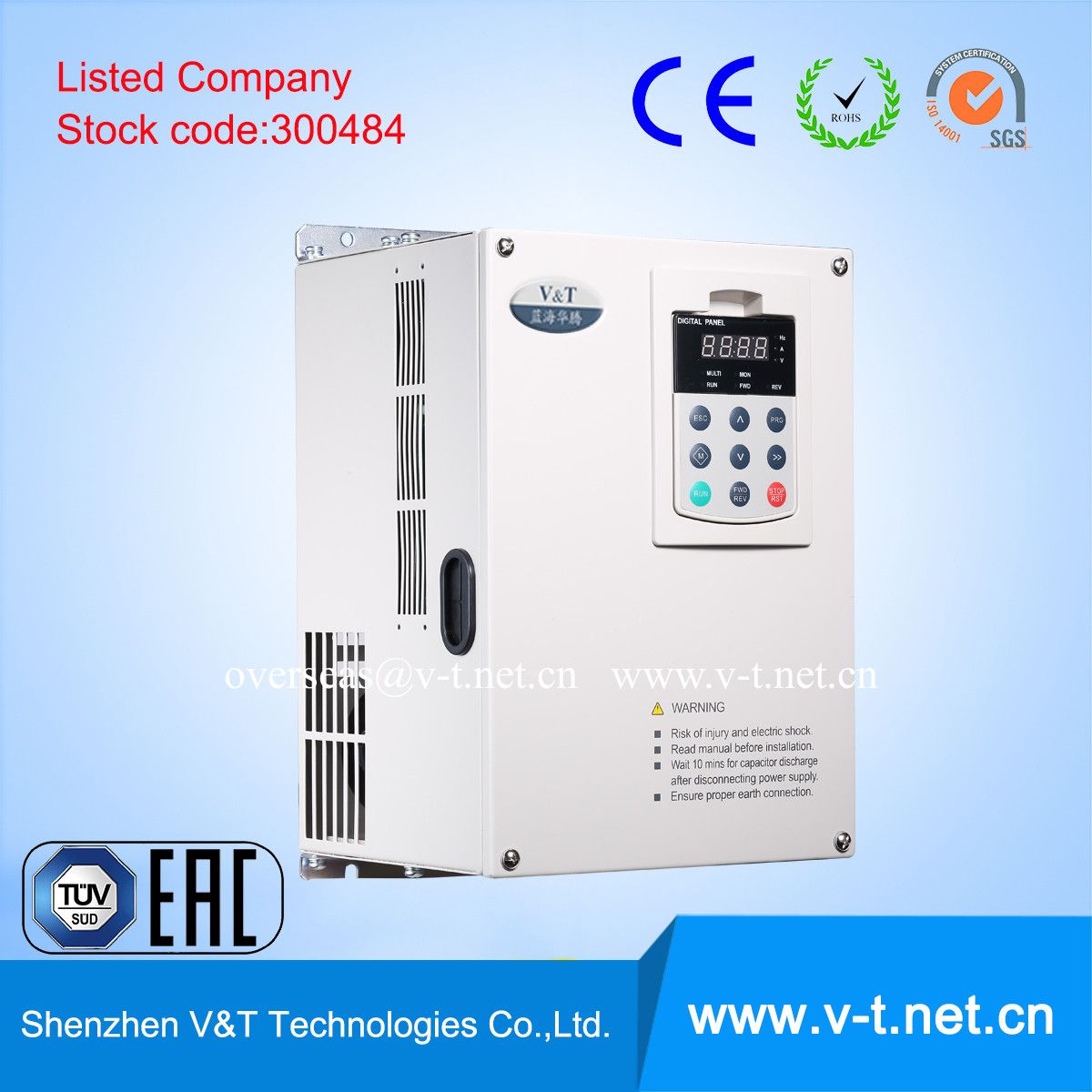

V6-H small power inverter, based on high performance vector control technology platform.
Vector Control 1:
A). Offering excellent vector control performance and insensitive to motor parameters.
B). Startup torque: 0.50Hz 180% rated torque
C). Speed adjustment range: 1: 100
D). Speed stabilization precision: ± 0.5%
0.50Hz controllable motor stable operation with 150% rated torque.
Vector Control 2 (Without Encoder Speed Feedback):
A). Precise speed sensorless vector control technology realizes AC motor decoupling, enabling the DC motorization of operation control.
B). Startup torque: 0.25Hz 180% rated torque
C). Speed adjustment range: 1: 200
D). Speed stabilization precision: ± 0.2%
0.25Hz controllable motor stable operation with 150% rated torque
Our products range:
Frequency inverter, soft starters, servo drives, servo motor PLC, HMI, Servo Motor & Drive system, Frekvensomformer, AC-Umrichter, frequentieregelaars, Variatori-AC, Variatore frequenza, variadores-AC, variador frecuencia, Variateurs-AC, , frekvensomriktare, Frequenzumrichter, AC drives, frequency converters, frequency changers, adjustable speed drives (ASD), adjustable frequency drives (AFD), variable, frequency drives (VFD), variable speed drives (VSD), Frequency Invert(AC Drives), Soft Starters, Electrical AC Motor, Induction motor, Brake Units, EMI filter, AC Choke, Brake resistor, Breakers manufacturer in China
VTDRIVE main business:
1, Industrial & Automation system integration;
2, International Import & Export; (Industrial & Automation Products)
3, Information consultancy service;
Our competitors are as follows: ABB, Siemens, DANFOSS, VACON, SEW, LENZE, PETER ELECTRONIC, LEISTER, WATT DRIVE, KEB, BONFIGLIOLI, NORD, CAG ELECTRIC MACHINERY, INTECNO, SYCOTEC, KB ELECTRONICS, TDE MACNO SPA, GEFRAN, CONTROL TECHNIQUES, PEPPERL FUCHS, GRUNDFOS, VEM MOTORS, BR INDUSTRIE-ELEKTRONIK, RK ROSE+KRIEGER, CARLO GAVAZZI, LEROY SOMER, VERLINDE, TRANSTECNO, STAHL CRANE SYSTEMS GmbH, MIYACHI, DEMAG CRANES COMPONENTS, ABM, ROSSI, COGNITO QUAM, GE, AIRTECNICS, AND SO ON.
| Control features | Control mode | Vector control1 | Vector control2(without PG card) | Vector control2(with PG card) |
| Startup torque | 0.5Hz 180% | 0.25Hz 180% | 0.00Hz 180% |
| Speed adjusting range | 1: 100 | 1: 200 | 1: 1000 |
| Speed stabilization precision | 0.5% | 0.2% | 0.02% |
| Torque control | NO | YES | YES |
| Torque precision | - | 5% | 5% |
| Torque response time | - | < 20ms | < 10ms |
Main Features- Range:0.4kW to 450kW
- V/F Control, V/F with PG, Slip Compensation, Sensorless Vector Control, Close Loop Vector Control;
- Built-in Macro for Crane & Wobbulation;
- Winder Application;
- Staring Torque at 180% at 0Hz for Close loop;
- Optional Smart PLC;
- Auto Sequence;
- Droop Control;
- Built-in RS485 Modbus RTU Communication.
About the Product V6-H series torque control inverter generates powerful performance and meets your precise needs through several features: superior V/F control, V/F PG, slip compensation and sensorless vector control as well as closed-loop vector control.V6-H is perfectly suited for the toughest, most complex application -cranes, plastic winders, high-speed elevators, cement kilns, crushers…and more. It handles loads up to 450kW-HD/600kW -ND, and is engineered to your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterize India's industrial environment.Applications1. Crane Hoist;2. Plastic &Textile Machines;3. Energy-saving air compressor; 4. Printing;
5. Fan & Pump / HVAC/AHU/Blowers machine /ID/FD Fan6. Crane Control; 7. Food & Packaging Industry; 8. AHU Control
Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).
In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.
Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
