| Prod Model: |
YJV-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
EPC-Yjv025mm |
| Ominal Cross Area: |
2.5-300mm2 |
| Rated Voltage: |
0.6/1(1.2)Kv |
| Test Voltage: |
5kv |
| Cores Of Power Cables: |
1,2,3,4,5,3+1,3+2,4+1 |
| Cunductor: |
Copper |
| Insultation Material: |
XLPE |
| Jacket Material: |
PVC |
| Guarantee: |
25year |
| Manufacturer: |
6year |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
XLPE |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
TUV |
| Brand: |
Dayuan |

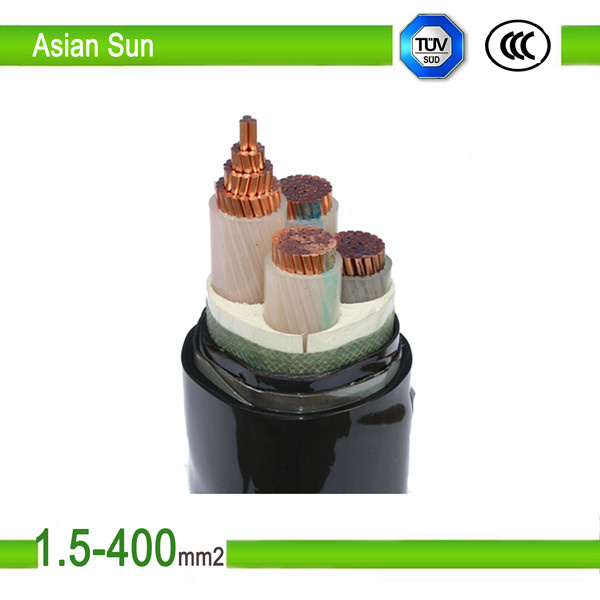

Product Description
Price High Voltage Power Cable up to 35kv for Power Transmission Line
For PVC or XLPE insulated or transmission line without messenger or neutral conductor, the phase conductor may be AAC or AAAC or ACSR or Copper.
For more than one core PVC or XLPE insulated aerial cable with or without messenger or neutral conductor and with or without street lighting conductor, the phase conductor and street lighting
conductor are AAC with PVC insulation, and the messenger or neutral conductor transmission line
is AAAC or ACSR with or without PVC(XLPE) insulation.
Standard:
DIN VDE 0276 Part 620 -622
HD 620 S1
Rated Voltage: 6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV
Core Number: Single Core or Three Core (1C or 3C)
Available sectional area: 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.
Codes available: N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY
Construction:
1) conductor:
Conductor:Stranded compacted circular copper or aluminium conductors according to IEC 60228
class 2 / VDE 0276 class 2. VDE 0295 HD 383. All internal interstices of the conductor are filled with water
blocking
compound to prevent ingress of water through conductor during storage, handing, installation and
operating
of the cable
2) Conductor Screen:
The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids. The screen has a
minimum thickness
of 0.3mm and the maximum volume resistivity of 500 Ohm-m at 90°C.
3) Insulation:
Insulation is of extruded XLPE compound type 2XI1 according to DIN VDE 0207 part 22 and HD 620.1
with high
degree of cross-linking, free from contaminants, air voids and heat resistant by dry cured process.
4)Insulation Screen:
The insulation screen consists of extruded non metallic, semi-conducting compound extruded over the insulation. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating. The minimum thickness is 0.3mm
and the
maximum volume resistivity of 500 Ohmm at 90°C. The screen is tightly fitted to the insulation to
exclude all air
voids and can be easily hand stripped on site.
5)Conducting Water Blocking Layer:The insulation screen may be covered by semi- conductive water
blocking
tape which will swell up under the influence of moisture of water to ensure longitudinal watertightness.
6)Metallic Screen: Copper tape screen or copper wire screen (CTS / CWS )
Copper wires are applied over the conducting water blocking layer with a minimum diameter of 0.5mm.
And over the copper wires, copper tape with minimum thickness of 0.1mm is applied helically with
overlap. Total cross section of metallic screen layer is shown in table 2. The screen can withstand of
fault current to earth of 1000 A for one second at maximum temperature of 160°C. Minimum cross
section of concentric conductor is according to DIN VDE 0273 & 0276 as shown.
7)Separator / Water Blocking Layer:
The metallic screen may be covered by non-conducting water blocking tape which will swell up under the influence of moisture of water to ensure
longitudinal
watertightness.
8)Separation Sheath (for armoured cable):
The separation sheath comprises a layer of extruded PVC, PE or LSZH, applied under the armour.
9)Armour(for armoured cable): The armour consists of: Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)
(1) Double layers of galvanized steel tape are applied helically with proper inner overlapping over an
extruded
separation sheath.
(2) Galvanized flat steel wires with thickness of 0.8 mm are applied helically over the surface of inner
sheath with
minimum of 90% coverage. And galvanized Steel tape with nominal thickness of 0.3 mm is applied
helically with 50% coverage to cover the surface of the flat wires.
10)Outer Sheath:
Overall sheath comprises a layer of extruded PE compound DMP2 according to HD620.1 and 2YM3 type
to DIN
VDE 0276 Part 3, or PVC compound DMV6 according to HD620.1 and YM5 to DIN VDE 0276 Part
Place of Origin: | Henan |
| Brand Name: | Dayuan |
| Model Number: | YJV-01 |
Insulation Material:
Conductor Material: | Copper or Aluminum
Stranded aluminum wires |
| Type: | High Voltage |
| Application: | Overhead, Power transmission line
Aerial Overhead Cable , power cable ,control cables
Suitable for use in power distribution lines or fixed |
| Conductor Material: | Aluminum |
Jacket:
Outer sheath: | PVC, MDPE, HDPE, LDPE
|
| Product: | ACSR Dog |
| Filler: | Polypropylene filament with lapped binding tape |
Reinforce:()
Armor: | Steel wire
Galvanized steel wire armored(SWA) or steel tape armored(STA) |
| Core: | 1/2/3/4/5/3+1/4+1/3+2... |
| Bending Radius: | 10D--20D |
| Cross area(mm): | 1.5-300 |
Voltage:
(Rated voltage) | LV,MV,HV
( 0.6/1kv 10kv 11kv 20kv 22kv 35kv) |
| Standard: | ASTM, BS215, DIN, IEC, CSA, etc
IEC60502-1, IEC 60228, IEC60332 -1/2/3.() |
| Service Temperature: |
|
| Certificate: | ISO,CCC |
| Sample: | Free sample available |
| Other: | Sell from factory |
| Color: | Black or as your request |
| Packing: | wooden drum steel wooden drum or as your request |
| Market | Arab,Pakistan,Canada,Brazil... |
| Delivery: | within 7 working days after payment |
| Bunched burning characteristic |
code | Volume of non metal materials(L/m) | Time of fire supply/s |
Acceptable index |
Test mode |
ZA
ZB
ZC
ZD | 7
3.5
1.5
0.5 | 40
40
20
20 | 1.The length of carbonation is no more than 2.5m from bottom of nozzle.
2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3
IEC 60332-3-25 |
| ZD is suitable for the cables whose sample's outer diameter is no more than 12mm |
| Fire-safe property |
| Temperature of flame | Fire supply time+cooling time/min |
Test Voltage/V | Acceptable index |
Test mode |
750+50ºC |
90+15 |
Rated Voltage | 1. 2A no fusing
2. Indicator light immortalization |
GB/T 19216.21 |
| Low-smoke zero-halogen flame-retardant property |
| Order | Items | Unit | Indicator
|
| 1 | Low-smoke property
Least light penetration quotiety | % | ≥60 |
| 2 | Zero-halogen property
Electrical conductivity | µs/mm | ≥4.3
≤10 |
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
