| Prod Model: |
Z900 |
| Apply: |
Constant Water Supply |
| Special: |
Built in Pid Function |
| Work: |
with 5 Pumps |
| Voltage: |
220V or 380V |
| Power: |
0.75-315kw |
| Phase: |
3 Phase |
| Color: |
Black |
| Certificate: |
Ce:ISO9001 |
| Protection: |
IP20 |
| Altitude: |
Lower Than 1000m |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

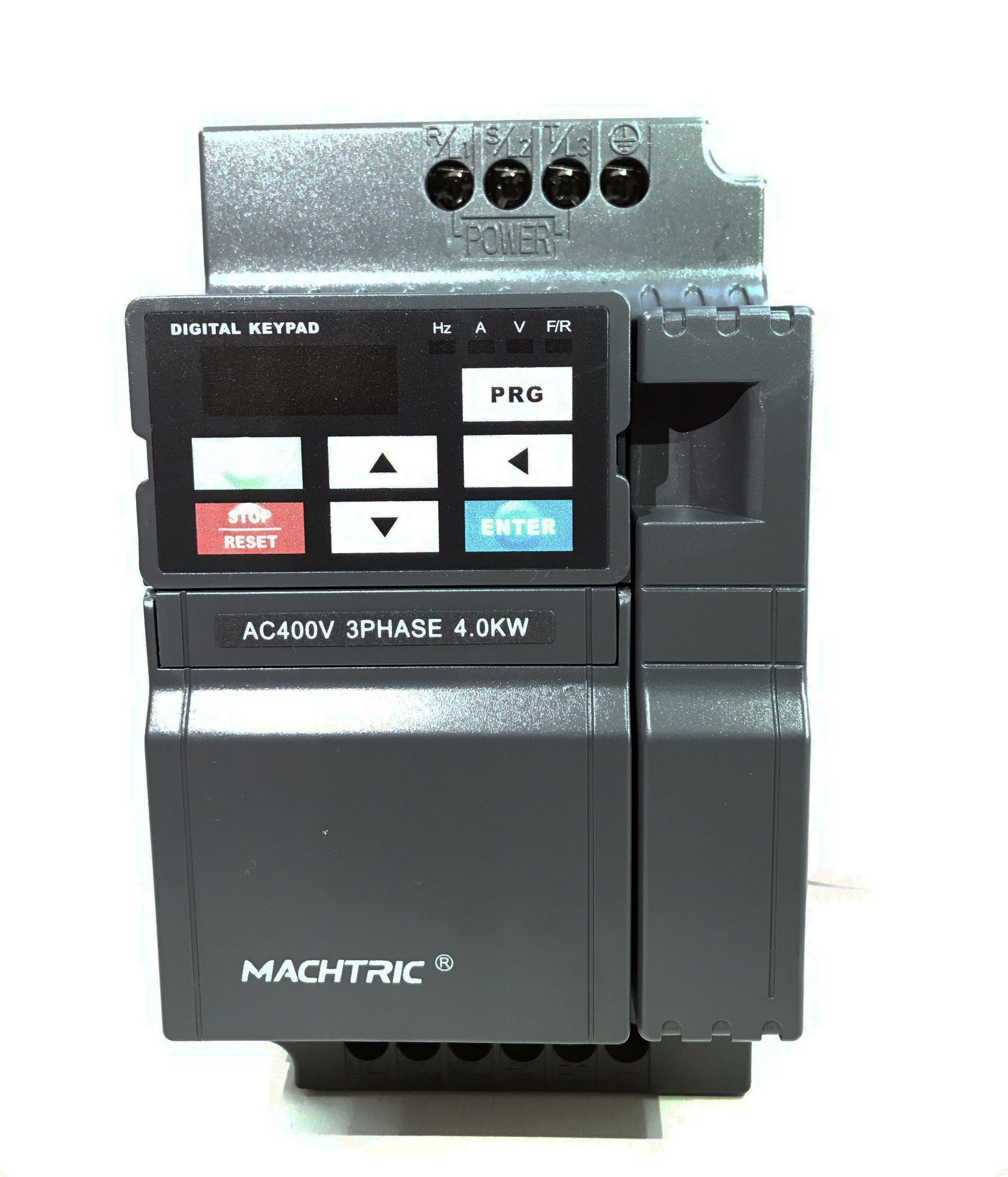

Vector Control 170-440V AC Motor Speed Drive Frequency Inverter 400Hz
Products advantage:
1. Great quality, with 70-80 strong R&D team
2. MOQ as 1pc, easy to test quality
3. All our products is designed by ourselves both software and hardware
4. Fail rate: < 1%
5. Delivery: 3-7 days after receive payment.
6. About 20 years experience on frequency inverter
Company advantage:
- Qualified inverter supplier for Fuji Electric (Japan)
- 10 years OEM/ODM Experience
- Manufacture in this field for almost 20 years experience.
- Reasonable price and punctual delivery time
- 70 R & D personnel have many years experience
- Received the National Invention Award
Major Customers
- Fuji Electric
- Jeltron System PVT
- Sinar Surya
- Electric Otomyson
Specification:

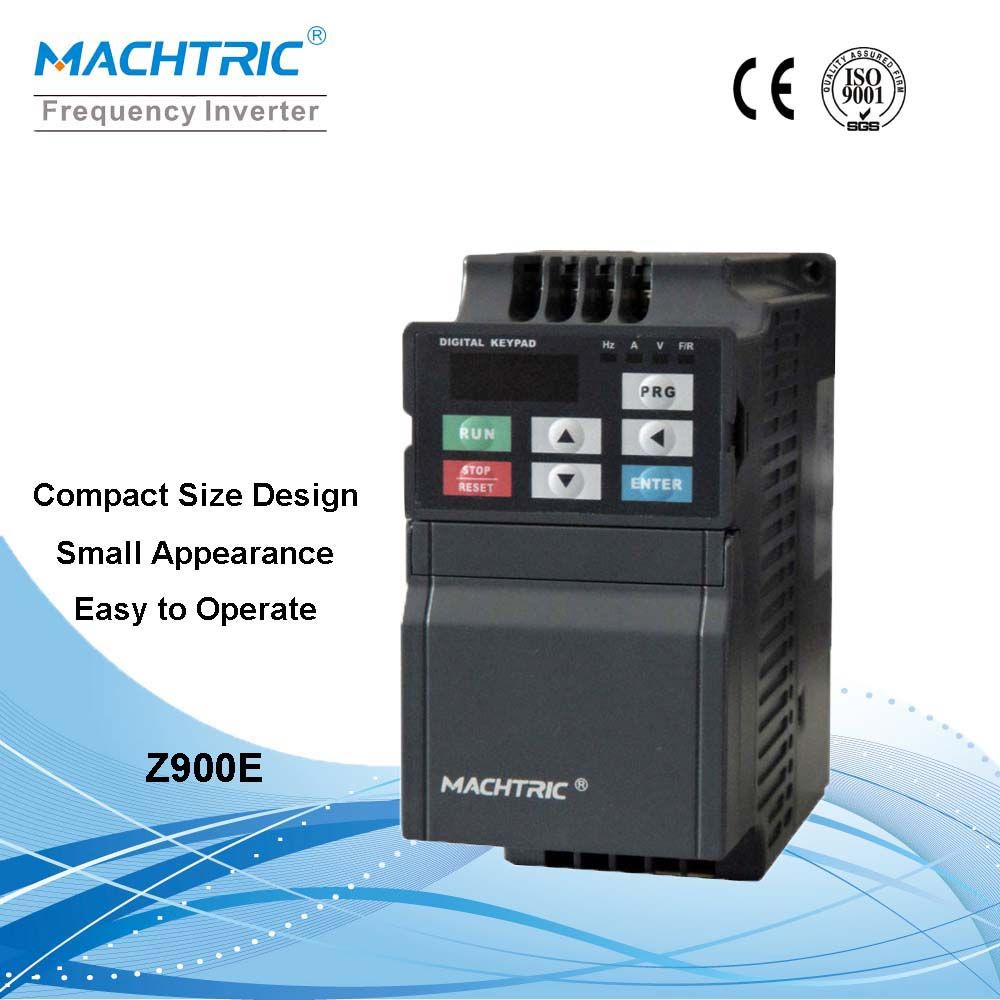

| Item | Z900E |
|---|
| Standard function | Control mode | Sensorless flux vector control(SFVC)
Voltage/Frequency (V/F) control |
| Maximum frequency | Vector control: 0-320Hz
V/F control: 0-3200Hz |
| Carrier frequency | 1-16kHz
The carrier frequency is automatically adjusted based on the load features |
| Input frequency solution | Digital setting: 0.01Hz
Analog setting: maximum frequency x 0.025% |
| Startup torque | G type: 0.5Hz/150%(SFVC)
P type: 0.5Hz/100% |
| Speed range | 1:100 (SFVC) |
| Speed stability accuracy | ±0.5% (SFVC) |
| Torque control accuracy | ±5% (CLVC) |
| Overload capacity | G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current |
| Torque boost | Fixed boost
Customized boost 0.1%-30.0% |
| V/F curve | Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square) |
| V/F separation | Two types: complete separation; half separation |
| Ramp mode | Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
| DC braking | DC braking frequency: 0.0Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%-100.0% |
| JOG control | JOG frequency range: 0.00-50.00Hz
JOG acceleration/deceleration time: 0.0-6500.0s |
| Onboard multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of X terminal states. |
| Onboard PID | It realizes process-controlled closed loop control system easily |
| Auto voltage/ Over current stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/ over current |
| Torque limit and control | It can keep constant output voltage automatically when the mains voltage changes |
| Instantaneous stop doesn't stop | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive |
| High performance | Control of asynchronous motor is implemented through the high-performance current vector control technology |
| Timing control | Time range: 0.0-6500.0 minutes |
| Communication methods | RS485 |
| Running command channel | Given by the panel, control terminals, Serial communication port, can be switched by many ways |
| Frequency source | 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port, can be switched by many ways |
| Auxiliary frequency source | 10 kinds of frequency source, can easily realize Micro adjustment, frequency Synthesize |
| Input and output | Input terminals | 6 digital input terminals, one of which supports up to 100kHz high-speed pulse input
2 analog input terminals, one of which only supports 0-10V voltage input and the other supports 0-10V voltage input or 4-20mA current input |
| Output terminal | 1 digital output terminal
1 relay output terminal
1 analog output terminal: that supports 0-20mA current output or 0-10V voltage output |
| Operation on the operate panel | LED display | It displays the parameters |
| Key locking and function selection | It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function |
| Protection mode | Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection |
| Enviroment | Installation location | Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt |
| Altitude | Lower than 1000m (Lower the grades when using higher than 1000m) |
| Ambient temperature | -10ºC~40ºC(Lower the grades if the ambient temperature is between 40ºC and 50ºC) |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9m/s²(0.6g) |
| Storage temperature | -20ºC~60ºC |

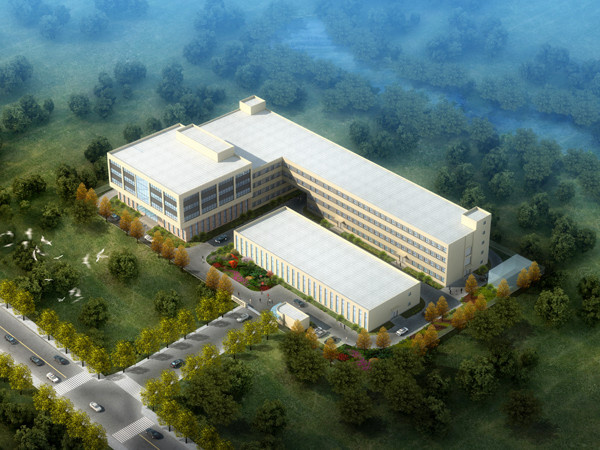

Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
