| Prod Model: |
Z900E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power 220V: |
0.4-3.7kw |
| Input Power 380V: |
0.75-160kw |
| Startup Torque: |
G Type 0.5Hz/150% |
| Place Of Origin: |
Fujian China |
| Output Frequency: |
0~400Hz |
| Altitude: |
Lower Than 1000m |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Current |
| Switch Mode: |
Open Loop Vector Control |
| Brand: |
Machtric |
| Function: |
Frequency Inverter |
| Nature Of DC Power: |
Frequency Inverter |
Product Description

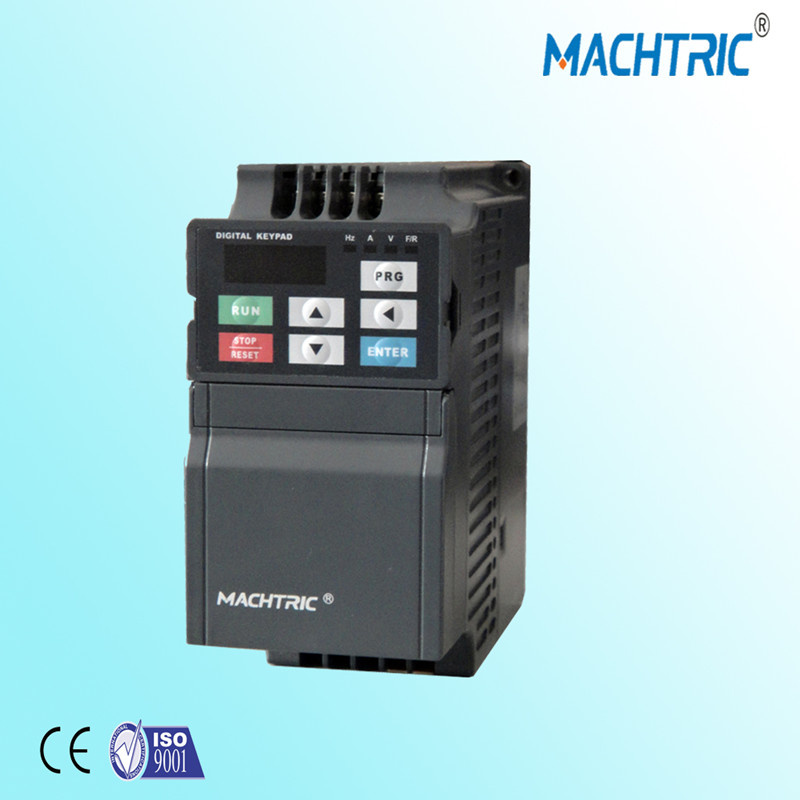

Z900E series Micro High-performance vector inverter
General used Compact size vector control variable frequency drive vfd
Input voltage: 220V single phase input/ Three phase input
Power range: 0.4kw-160kw
Now the 0.4kw-37kw are available, 160kw will be available within this year.
Specification :
Item |
Z900 |
Standard
functions
|
Control mode |
Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
Maximum frequency |
Vector control: 0-300 Hz
V/F control: 0-3200Hz |
Carrier frequency |
1 kHz-16 kHz
The carrier frequency can be automatically adjusted based on the load features. |
Input frequency resolution
|
Dgital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%
|
Startup torque |
G type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100% |
Speed range
|
1:100 (SFVC)
|
Speed stability accuracy |
± 0.5% (SFVC)
|
Overload capacity |
G type: 60s for 150% of the rated current,
3s for 180% of the rated current.
P type: 60s for 120% of the rated current,
3s for 150% of the rated current. |
Torque boost |
Auto-boost
Customized boost 0.1%-30.0% |
V/F curve
|
Liner V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,
1.8-power, square) |
V/F separation |
Two types: complete separation; half separation |
Ramp mode
|
Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
DC braking |
DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0% |
JOG control
|
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s |
About us
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series
Dedicated series: S100 series, S200 series(circular knitting machine),
3. Soft starter: CSX series, CSXi series, IMS2 series, MVS series;
4. Power controller: SPC3 series;
5. Intelligent control meter: Counter CU, Counter CA, length signal generator, rotate speed meter;
6. Peripheral: three-color light, signal amplifier
7. Control system of integrative machine: SGP series
More information welcome to contact us !
