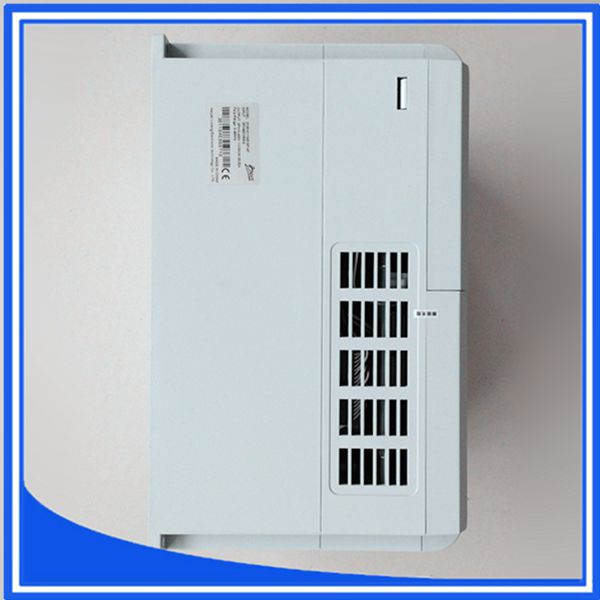

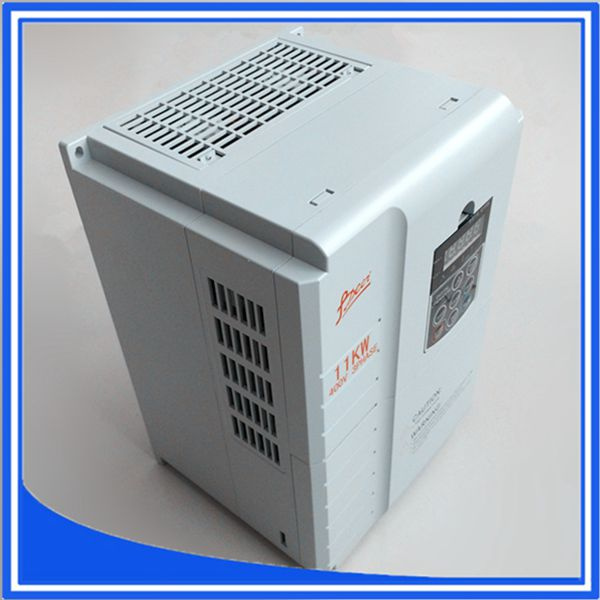

Vector Control Inverter for Fan Single Phase 0.75kw

Name: Vector Control Inverter for Fan Single Phase 0.75kw
Brand: all-electronics-online.com
SKU: 731868902
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 86-92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LX2000-0R75G-S2
Output Power:	0.75kw
Input Frequency:	50/60Hz
Input Voltage:	220V
Output Voltage:	0-220V
Output Current:	5A
Application:	Three Phase Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Ideei

Product Description

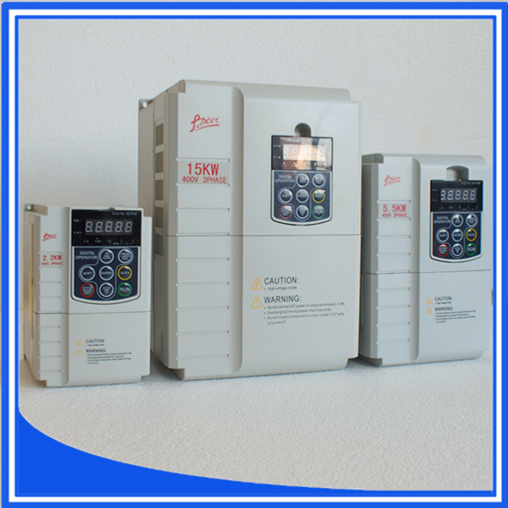

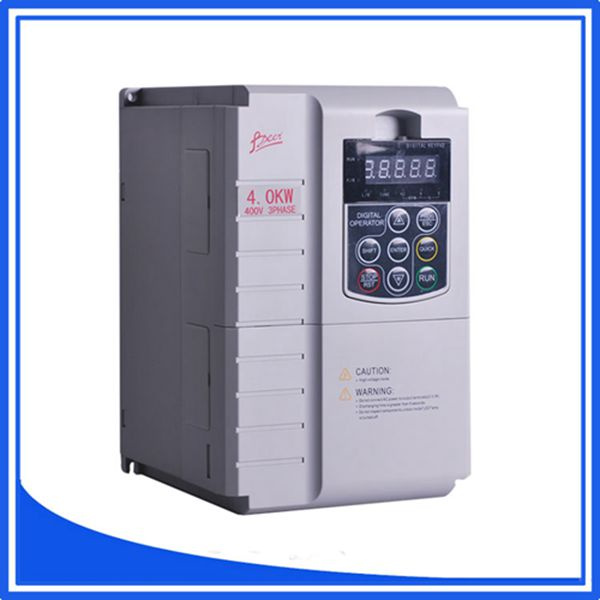

2000 series AC drive
2000 series inverter adopts to V/F control, its feature is economical and simple. The inverter
can be used in fan and pumps.

Technical Specifications

The specifications:
Input voltage range:220V/380V±15%
Output frequency range:47-63Hz
Output voltage range:0~Rated input voltage
Output frequency range: 0-400Hz

The characteristics of peripheral interface:
Programmable digital input: Six input
Programmable analog input: FV: 0-10V input, FI:0-20mA or 4-20mA input
Open collector output: single output, Dual output
Relay output: single output, Dual output

Technical performance characteristics:
Control mode: SPWM
Overload capacity: 150% rated current 60s; 180% rated current 10s
Starting torque: 1.0Hz/150%
Carrier frequency: 1.0k-20.0kHz

Functional characteristics:
Frequency setting mode: Digital setting, analog setting, serial communication setting, multi segment speed, PID setting and so on

PID control function:
Multi speed control function: 8 stage speed control
PLC function built in VFD: External control of multi speed, internal control of multi speed
Speed tracking and restart function: Realization of the rotation of the motor without impact smooth starting
Automatic voltage regulation function:When the power grid voltage changed, the output voltage can be kept constantly
Provide more than 20 kinds of fault protection function: Over current, over voltage, under voltage, lack of phase, overload protection function.

Product Model

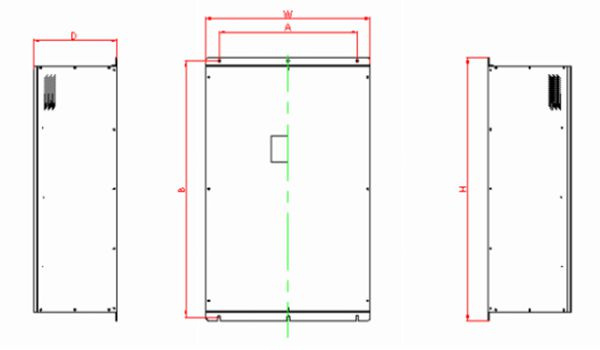

Installation Size

0.75KW-15KW (Plastic shell parts)

18.5KW-315KW (Plastic shell parts)

Our Services
OEM Service:
We can desgin and produce it according to your requirements. We have been offering OEM service for over 10 years.
Warranty of Products:
The warranty period of the product is 18 months.
Sample:
We can offer samples for free, but the freight cost must be at customer.

Packaging & Shipping
PVC BAG + SPONGE + CARTON + WOOD BOX FOR FREE FUMIGATION
