| Prod Model: |

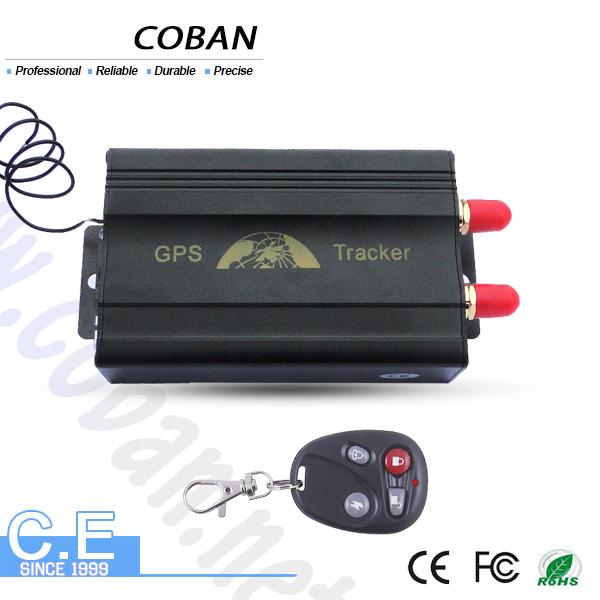

Vehicle Car GPS Tracker 103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Anti-Theft: |
Cut Car Engine/Live GPS Tracking |
| Arm/Disarm: |
Acc/Door/Shock Sensor Alarm |
| Tracker Warranty: |
12months |
| Certificate: |
1 Year |
| Main Feature: |
Shut Engine off, Acc |
| Network: |
GSM GPS |
| GPS Accuracy: |
5m |
| Alarms Under Arm: |
Acc Door Open, Shock Sensor |
| Frequency Band: |
850/900/1800/1900MHz |
| GPS Module: |
Ns1315 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
GPS103 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description
Product features
Remote control with alarm on/off function. GPS/GSM station positioning.
SMS/GPRS/internet network data transfer. Point-to-point, point to group, group-to-group monitoring.
Continuously auto track upon different time and distance intervals.
Absolute street address with GSM network. SD card for data logging.
Support 9-36V, so it can be installed on Bus, taxi, truck, personal car, business car etc.
Product Description
This tracker GPS103B is a new product based on the GSM / GPRS network and GPS satellite positioning system. It provides multiple functions, such as security, positioning, surveillance, emergency alarms and so on.
-Maximum 5 cell phone numbers are allowed to admin the tracker.
-Other functions: SOS, Geo-fence, movement alarm, over speed alarm, accident alarm, voice monitoring etc.
-Cut off the oil and power system.
-The on-line web page tracking software has one month free trial, after that it is about 10USD per year.
Optional accessories: Shock sensor and siren. (NOT included)
Specifications:
Network: GSM/GPRS
Band: 850/900/1800/1900MHz
GSM/GPRS module: SIM900B
GPS module: SIRF3 chip
GPS sensitivity: -159dBm
GPS accuracy: 5m
GPS start time: Cold status 45s; Warm status 35s; Hot status 1s
Voltage of car power system: 12V ~ 24V
Backup battery: Rechargeable and changeable 3.7V 800mAh Li-ion battery
Storage Temperature: -40° C to +85° C(-40F~185F)
Operation Temperature: -20° C to +65° C(-4F~149F)
Humidity: 5% ~ 95% non-condensing
Item Includes:
1 * GPS tracker
1 * Remote control
1 * Microphone (1.5 meters)
1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (10 Pin)
1 * User manual
1 Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |
