| Prod Model: |
vehicle gps tracker tk103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
GPS Tracker Support 12 Months |
| Localizador GPS: |
SMS/GPRS Tracker |
| GSM Frequency: |
850/900/1800/1900MHz |
| Certificate: |
CE FCC ISO |
| OEM: |
Yes |
| Feature 1: |
Dual SIM Card with Fuel Sensor / Shock Sensor |
| Feature 2: |
Stop Engine Remotely, Acc, Door Alarm |
| Tracking System: |
SMS, Mobile APP, Web Platform |
| Manufacturer Or Not: |
Original Coban GPS Tracker Manufacturer |
| Function: |
GPS Tracker for Vehicle Car Security Management |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
2.5" |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking Device |
| Port Number: |
20 |
| Model: |
Tk103b Vehicle GPS Tracker |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description
gps tracker tk103 vehicle security system with ACC
door over speed alerts & android IOS APP real-time
tracking system
Top Quality , Factory Price , 2 days delivery , 12 months Warranty.
Model: GPS tracker TK-103A B,TK103A+ B+
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
Support both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.
New functions:
TK103A+ B+ support dual Sim Card, fuel sensor,central lock system
3. Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking

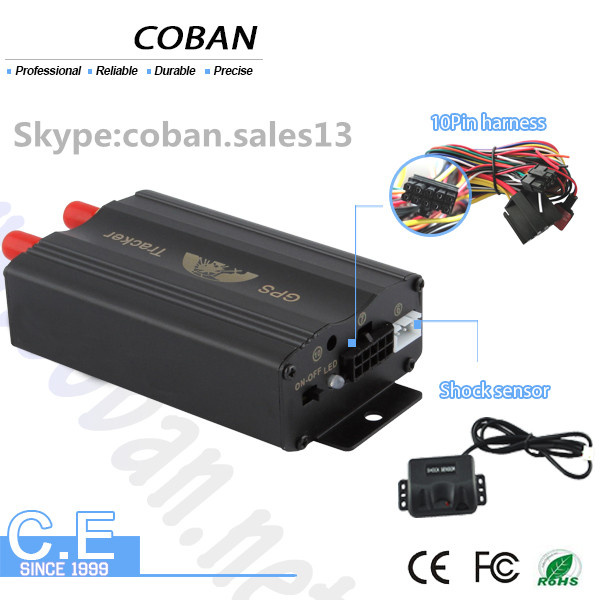

GPS103 vehicle GPS Tracker photos:
Specification:
Content | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
Certicates:
We can supply you all of our CE FCC ISO certification to you !
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service 3
.Customize design in bulk order
