| Prod Model: |
camera GPS Vehicle tracker GPS105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
170g |
| Size: |
85mm*71mm*26mm |
| Delivery Time: |
1-3 Working Days |
| Carton Size: |
53.4cm*39.9cm*30.4cm |
| Shipment: |
DHL, UPS, EMS, TNT, FedEx, Hkpost etc |
| GPRS Protocol: |
Support TCP and UDP Protocol |
| Arm/Disarm: |
Acc/Door/Shock Sensor Alarm/Camera Shot |
| Tk105A/B Difference: |
Tk105b Has Remote Controller |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Camera GPS Vehicle Tracker GPS105 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban GPS Tracker |
| Certification: |
ISO9001 |
Product Description

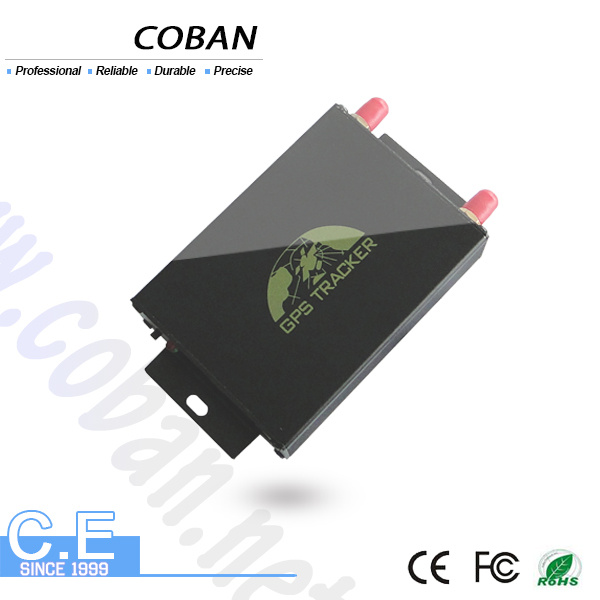

Vehicle GPS Tracker 105 with Camera and RFID
Top Quality , Factory Price , Prompt Delivery , 12 months Warranty.
This GPS105 supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways
Basic functions:
1. Tracking by GPS and location base service both even in building, underground and garage
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, SOS button ,Low battery alarm, Geo fence,Overspeed Alarm , Power off alarm
10 Engine -cut and restore alarm by SMS GPRS
11, Door, windows alarm get by SMS
12, Movement alert sensor
13, Free tracking GPRS software send you in CD package
14. With direction and heading value
15. Optional vibration sensor and fuel sensor
16. Optional camera
17 Support SD card function
18. LBS tracking Cell-ID Tracking ,
AGPS ( with GSM Base Station ID)
Products Show
Standard accessories
GPS105A
1 x GPS Tracker 105A
1 x GPS Antenna
1 x GSM Antenna
1 x Microphone
1 x Harness 14PIN
1 x Relay
1 x User manual
Applying directions:
Large Scale Vehicle fleet/logistics/Vehicle rental (12-24V)
Technology parameter:
Specifications
GSM/GPRS Module
Simcom900B
GPS Start Time
Cold status 45s
Warm status 35s
Hot status 1s
Applicable vehicle power
12 V -24V
Backup Battery
Chargeable changeable 3.7V 800mAh Li-ion battery
Storage Temp
-40°C to +85°C
Operation Temp.
-20°C to +65°C
Humidity
5%--95% non-condensing
Four tracking solutions:
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Free PC Installation software tracking.
-Optional Web server online tracking www.gpstrackerxy.com
(Demo ID:demo ; Password : 8888.) It is ok to track 10,000pcs units in platform at one time
| Content | Specifications |
| DIM | 85*71*26mm |
| Weight | 170g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Sim900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
