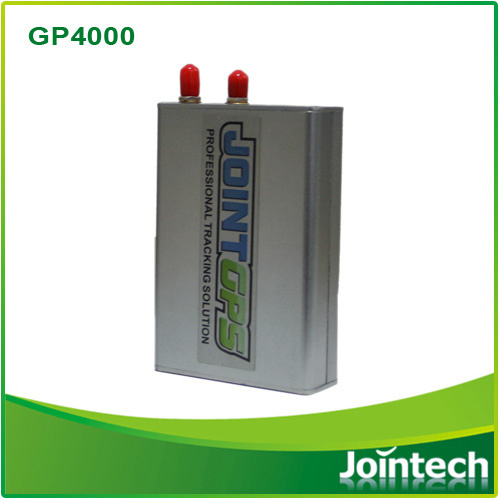

Vehicle GPS Tracker for Vehicle GPS Tracking

Name: Vehicle GPS Tracker for Vehicle GPS Tracking
Brand: all-electronics-online.com
SKU: 674234812
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 79-99/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Jointech
Function:	GPS Tracking
Color:	Silver
Unique Feature:	Support 10 Kinds of External Sensors
External Sensors:	Fuel Sensor, Thermal Sensor, RFID, Camera
Dimension:	1037126mm
Working Voltage:	10-30V
GSM Band:	850/900/1800/1900 MHz
GPS Chip:	Sirf Star III
Type:	GPS Tracker
Use:	Automotive
Screen Size:	No

Product Description

Gp4000 is a mainstream GPS/GSM/GPRS vehicle tracking device, designed as solution for fleet management, which is a robust fleet tracking device not only allows mdt but also supports external high precision fuel sensor.

*Advantages:
Multiple useful fleet management reports
Excellent redevelopment ability
More than 10 kinds of sensors supported

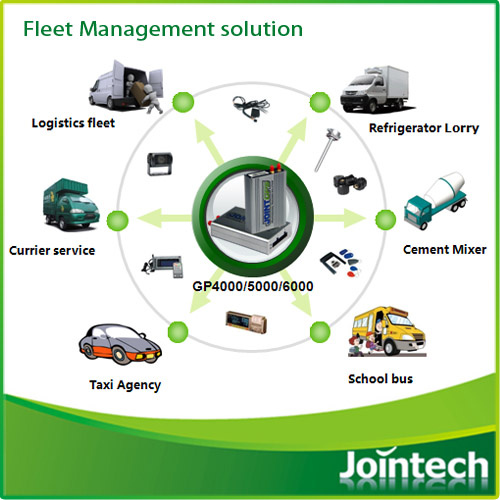

*Applications:

Vehicle tracking/monitoring
Vehicle data warehouses
Fleet management
Vehicle securities/recoveries/anti-hijacks
Mobile asset tracking/monitoring
Location based services
Taxi/bus groups

*System features:
SMS, GPRS TCP/UDP communication
Fuel consumption monitor
Blind area data re-report
Data flow control/Power Saving mode: Factory setting/Definition by use/
GPS module power off/ GPS and GSM module power off
Management time of uploading: Time/Day/Week
Remote control fuel and power break
Initiative anti-theft
GPS/Electronic Mileage statistics
Remotely listen-in
Multiple alarm functions: 17 kinds
Alarm transmission method: GPRS/ SMS /Email
Multiple fleet management reports: 8 types
Geo-fencing: 32 rectangular
Remote configuration: SMS/GPRS
Real-time tracking (time, distance interval or intelligent mode)
History data storage (43200PCS)
GPS antenna open/ short detection
Intelligent power management
Automatic self-check, recovery, protection
Power low/lost alarm, backup battery low alarm
Journey report wireless download
GPS mileage report/electronic mileage report
Build-in backup battery

*Hardware specifications:
GPS chip: SIRF Star III
GSM Module: Simcom: SIM900
Dimension: 121× 82× 29mm
Weight: 0.85kg (including standard accessories)
GPS receiver: 20-channel or above GPS receiver
Datum: WGS-84
Default baud rate: 9, 600BPS
Buffer memory: 128KB
Built-in memory: 2MB
Power source: 10 to 33V DC
Power consumption: Less than 100mA at 12V DC in operating mode
Operating temperature: -40 to +85
Communication: GSM 850/900/1800/1900MHz
Backup battery: 8.4V 400mAh Ni-MH battery
Port: Port A/Port B/Port C

*Interfaces:
Port A: Power and vehicle control
Port B: Detecting 14-channel vehicle signal
Port C: Connect to additional peripheral, such as RFID, scanner, sensor
I/O: 11 digital input/1 analog input(0-5V)/1 pulse input/8 digital output/1 RS232 COM port

*Optional items:
Fuel sensor
RFID
Camera
Thermal sensor
Tire Pressure Sensor
Barcode Scanner
Microphone
MDT
Door Sensor

Description
Transmission Mode	TCP/UDP/SMS
Interval type for data uploading	Time interval / Distance interval / Angle variation
Data flow control / Power saving mode	Factory Setting / Customization / GPS module power off
Intelligent data uploading of time management	Time Reference / Week Reference /Day Reference
Vibrating detection	Built-in triaxial G sensor
OTA	Continue transferring from breakpoint
Mileage Statistics	GPS mileage / Electronic mileage
Remote Listen-in	Active / Passive
Geo-fence	64
Road / Polygon Geo-fence	100
Hotspot	100
Alarm Type	GPRS/SMS/EMAIL
Domain name supported / Build-in backup IP supported
Blind area data supplementary uploading /History data intelligent uploading (43,200 pieces)
GPS antenna open/short circuit detection / GPS signal uploading in real time
Self-check/Self-recovery/Self-protection/ Build-in battery
Alarm	20 kinds
