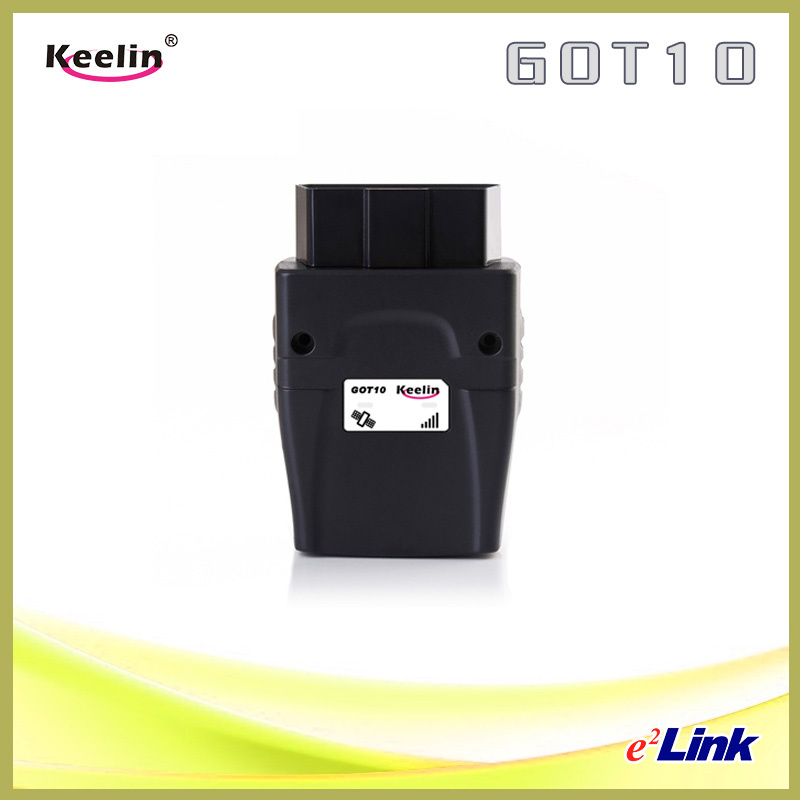

Vehicle GPS Tracker Plug and Play OBD-II Diagnosis Got10

Prod Model:	GOT10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Got10
Color:	Green
Weight:	56
Working Voltage:	12VDC/24VDC
Dimension:	56.5(L)X 47(W) X 24.6(H)
GSM Frequency:	850/900/1800/1900MHz
Battery Capacity:	No Battery
OBD Port:	Yes
Plug And Play:	Yes
Alarms:	Vibration,Falling,Speed,Geo-Fence

Product Description

GOT10 OBD GPS Tracker has a very wide range of industrial and commercial applications, OBD interface, OBD diagnostic, plug and play, Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.

Product Features

*Supports quad bands, I. E. 850/900/1800/1900MHz, worldwide used
*Plug and play, Easy to install and just connects OBD interface to work.
*GPS precise positioning with A-GPS and uploaded by GPRS regularly
*Tracks real-time and playback
*Cloud storage OBD data, Vehicle speed, Coolant temperature, fuel consumption and *other standard OBD2 diagnostic data, support read mileage, remaining oil. By some cars' module.
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, Built-in acceleration sensor with vibration, collision and falling alarm.
*Built-in battery and unplugging alarm
*OTA upgrade program.

Alarm Type

Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm


Main function table

GPS OK
AGPS OK
Remote cut oil/engine OK
Monitor/listen NO
ACC OK
OBD diagnostics OK
Built-in batteryOPTIONAL
PedometerNO
Power failure Alarm OPTIONAL
Low power Alarm OPTIONAL
SOS Alarm NO
Speed Alarm OK
Shift Alarm OK
Collision Alarm OK
Falling Alarm OK
Vibration Alarm OK
Geo-fencing Alarm OK

Platform

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.

Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience

GPS tracker GOT10 parameter

Base Specification
Voltage	12VDC/24VDC
Work Current	<40mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Operating temperature	-20ºC~70ºC
Operating humidity	20%~80%RH
Dimensions (mm)	56.5(L)X 47(W) X 24.6(H)
Net Weight	56 g
