| Prod Model: |
Vehicle Gps Tracker BN103A |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V,24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Tracking System: |
Web Server Platform |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Oil Cut and Resume/Hardware Resetting |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Tk103A |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
CB900 |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Product Description
car engine cut off gps sim card tracker tk103a,micro gps transmitter tracker
Top Quality , Factory Price , 3 days delivery , 12 months Warranty.

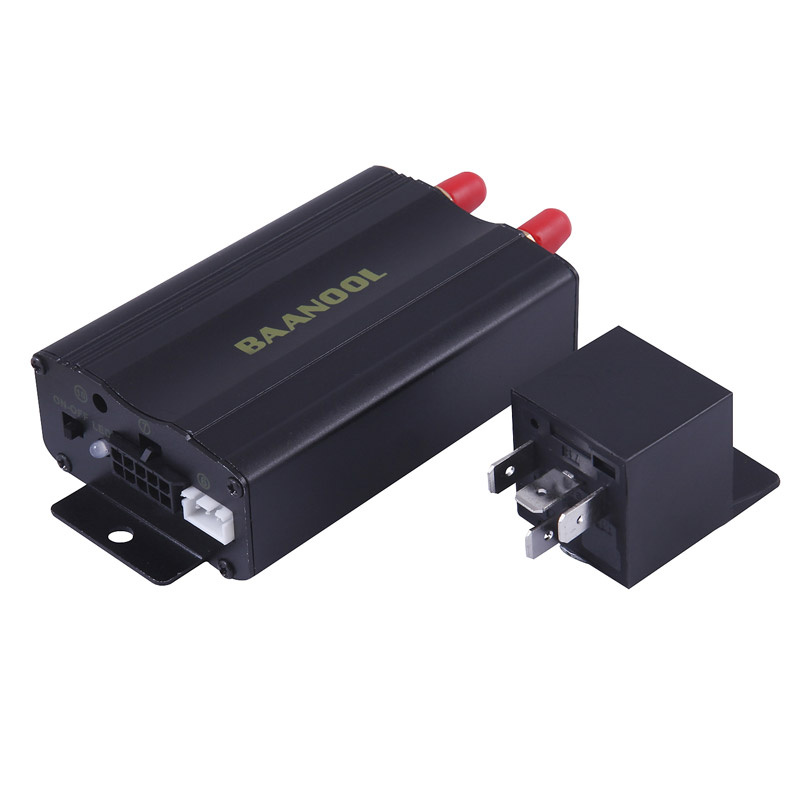

Model: TK 103A GPS Tracker
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Function Description:
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume. You can retrieve the stolen cars by shut off engine remotely.
4. Track by Distance Interval &time
5. USB configuration (option)
6. Data logging
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic mode(To save GPRS comsupiton)
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18.Sleep mode to save battery comsuption.
19.Alarm without GSM network service.
20.support fuel sensor for fuel alarm.
Applications:
Used widely for vehicle and other moving objects tracking. For example cars,logistic vehicles,fleet management.
Specification
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Package
GPS Unit
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package
Attention:
Optional accessories
Shock sensor
alarm siren
Microsd memory card Fuel sensor

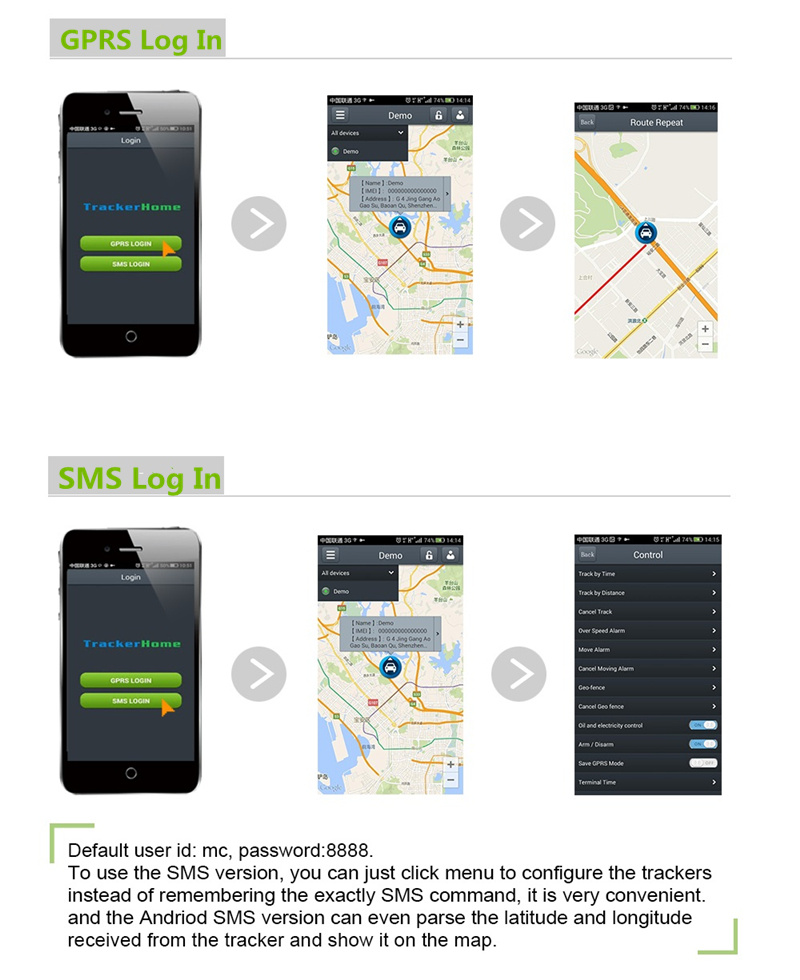

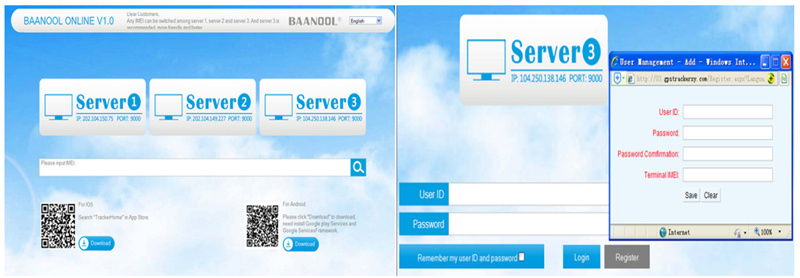

our online tracking system
Picture Show
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
