| Prod Model: |
vehicle gps tracker tk 103b rastreadores |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |

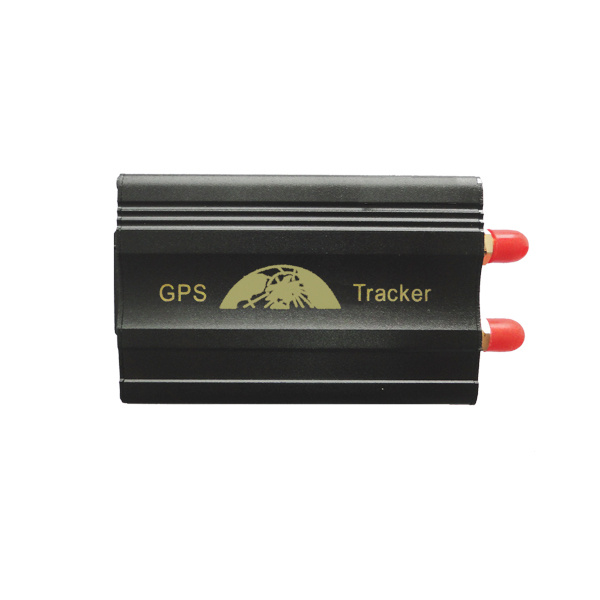

Vehicle GPS Tracker Tk 103b Rastreadores with Ios |
| Certificate: |
CE FCC |
| Warranty Time: |
1 Year |
| APP Tracking: |
Android and Ios APP Tracking |
| Weight: |
120g |
| Size: |
83*54*26mm |
| Alarms Under Arm: |
Acc, Door, Shock Sensor Alarm |
| Avl Vehicle Tracking Anti Theft System: |
Real Time Tracking, Shut Engine Remotely |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Vehicle GPS103A |
| Brand: |
Baanool Car GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
GPS vehicle tracker device 103gps locator:
A. Track on demands and SMS commands
B. Track by time interval
C. Track on computer or cell phone or PDA
D. Real time tracking via SMS or GPRS (TCP/UDP)
E. Show location directly on mobile phone for HTTP link
F. Five authorized phone number to protect tracker information and assets
G. Easy switch for track or Monitor
H. SOS button for emergency
Basic function:
1. ACC alarm, Door alarm, Shock sensor alarm
2. Power -cut and restore alarm by SMS or remote controller
3. Oil -cut and restore alarm by SMS or remote controller
4. Power off alarm when the power be cut off or the voltage is 0V
5. Anti-thief for 24 hours a day
6. SOS panic alarm.
7. Voice Surveillance. When the tracker stay in "monitor" mode, you can call the tracker and hear the voice of remote target.
8. Geo-fence alarm. Set up a geo-fence for the tracker to restrict its movements within a district.
9. Movement alarm. (default distance is 200m)
10. Overspeed alarm. To restrict the speed of the tracker and control it well
11. Low battery alarm. It will remind you to charge the unit in time.
12. Single Locating by calling the tracker
13. Auto Track by sending SMS commands
14. GPS+LBS double positioning ways
15. Get accurate street address by sending SMS "address+password".
16. SMS and GPRS two modes switch freely as you like
17. Setting local time of the unit by SMS
18. No GSM network alarm.
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
