| Prod Model: |
103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GSM/GPS/GPRS Network |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Brand: |
Coban/Baanool |
| Certification: |
ISO9001 |
Product Description

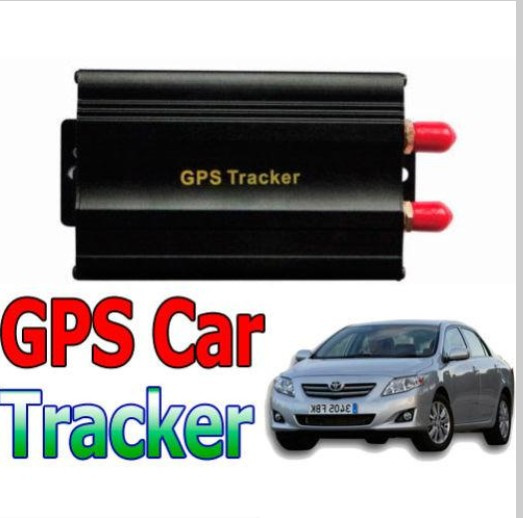

Coban sim card vehicle gps tracker TK103A with real time gps vehicle tracking system on google map: www.gpstrackerxy.com
GPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle. The product fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHz)wireless telecommunication internet and GPS satillite global position system, track by several ways. Provide monitor software and global map. Real-time track through the monitor software in your PC; Track through your PDA cell phone and googleearth.
1. Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
2. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
3. Get location in real street/address name
4. Remote Engine-stop and Resume.
5. Tracking function by timing and frequency
6. Remote reset by SMS & reset button on the device
7. Input Power: 12V-24V DC
8. GSM/GPS LED indicator
9. Authorized number added and deleted function
10. Support hidden alarm and monitor function
11. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
12. Power supply disconnection alarm.
13. Door alarm
14. ACC alarm
15. Movement alert: You can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
16. Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
17. Low battery alarm function
18. Check the vehicle status
Optional functions: Quiver alarmsiren/horn
Applying directions: Vehicle fleet/logistics/Vehicle rental
4 Tracking ways:
Tracking way A>: SMS + Map software;
Tracking way B>: PDA CellPhone;
Tracking way C>: Real time tracking, and track via your computer;
Tracking way D>: Real time tracking, and track via our Server;
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
